Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine

1
MOQ
negotiable
Price
Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Type: Diesel
Type: Rotary Drilling Rig
Product Name: DTH Drilling Rig
Application: Ore Mining,Drilling Holes
Name: Top Hammer Drill Rig
Advantage: High Performance,Hydraulic Controlling,High Productivity
Drilling Depth: 25m
Drilling Diameter: 76-115mm
Rotate Speed: 0-135 Rpm
Rotating Torque: 1460N.m
Working Pressure: 10bar
Travelling Speed: 3.5Km/h
Diesel Engine: 179KW
Fuel Tank Capacity: 310 L
Weight: 17300KG
Dimension(L*W*H): 10750×2380×3200mm
High Light:

hydraulic drilling rig

,

portable hydraulic drilling machine

Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: T83
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 100 Set/Sets per Month
Product Description

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine

For mining, construction,coal,water well etcThe rigs can drill multiple holes with just one time positioning and can cope with any kind of virgin landscapes with its' flexible boom and cross terrain adaptability. The penetration rate is 50% faster than a down the hole rig with hole diameter less than 115 mm within 15 meter depth and with normal and stable rock condition.

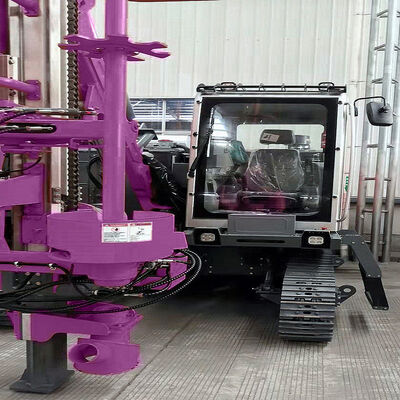

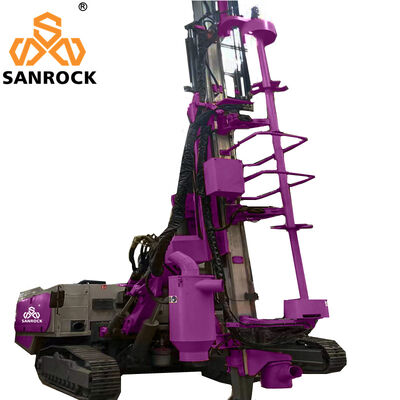

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 0





Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 1

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 2

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 3

Products Description

Product name:Top Hammer Drill Rig

Brand Name:Sanrock

Diesel engine:179KW

Max pressure:10bar

Max. Rotation Torque:1460 N.m

Travelling Speed:3.5km/h

Hole Depth:25M

Capacity F.A. D:8 m3/min

Dimension(L*W*H):10750×2380×3200mm

Weight:17300kg

Drill rod diameter:T45 OR T51x3.66 m

Fuel Tank Capacity:310 L

Max. Climbility :25°

Feature: 1.Independent preheating device of diesel engine and the automated hydraulic system make the rigs better suited for high altitude and cold climates.

2.Anti-jamming system:The drifter’s damping mechanism and anti-jamming system guarantee stable and efficient drilling.
3.Folding boom:The exquisite and ingenious combination of No. 1 & No. 2 booms and the cylinders can easily cope with all kinds of drilling angel requirement of landscapes.
4.Rod handling system:Simple but efficient rod handling system consists of reach sensor, mechanic gripper, rod lubrication device and rod gripper.
5.Ergonomic comfortable extra safe cabin: Clear and wide view & environmental friendly glass All around visibility, low vibration and low noise design made to optimum comfort Standard Stereo and air conditioning system ensure the operator a relaxed and enjoyable workplace Simple operating control system is great to operate .
6.The advantageous functions such as precise boom positioning, automatic rod handling, high drilling speed and fast tramming speed make this rig operation cost per drill meter to be unparalleled competitive
7.Tramming system:Heavy duty motors and track oscillation system provide dual speed tramming, powerful climbing ability and cross-terrain capability.
8.The rigs can drill multiple holes with just one time positioning and can cope with any kind of virgin landscapes with its' flexible boom and cross terrain adaptability. The penetration rate is 50% faster than a down the hole rig with hole diameter less than 115 mm within 15 meter depth and with normal and stable rock condition.
Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 4

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 5

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 6

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 7

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 8

Mining Top Hammer Drilling Rig Automatic Hydraulic Rotary Blast Hole Drilling Rig Machine 9

1.What can you buy from us?

Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
