Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig
Name: Truck Mounted Water Well Drilling Rig
Power Type: Diesel
Engine: CUMMINS
Power(w): 70KW /90KW /132KW
Drilling Depth: 400m
Drilling Diameter: 260mm, 350mm, 505mm
Rotate Speed: 0-90 Rpm
Rotary Torque: 9500-15500N.m
MUD PUMP: BW450/30 BW600/30 BW850/30
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Drill Rod Diameter: 102/108/114mm
Drill Rod Length: 2.0m 3.0m 6.0m
Usage: Water Well
Type: Rotary Drilling Rig
Warranty: 1 Year
Dimension(l*w*h): 11500*2500*4150MM
Weight: 29000KG
Highlight:

truck mounted drill rig

,

truck drilling machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRTM400
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig

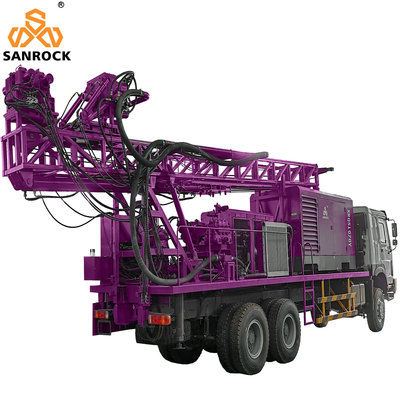

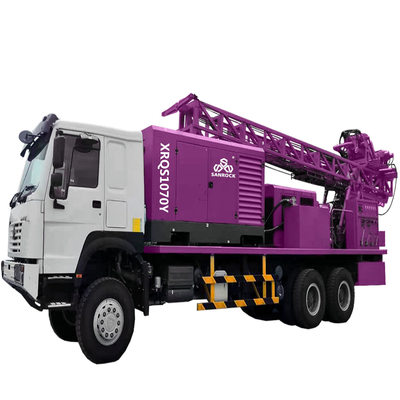

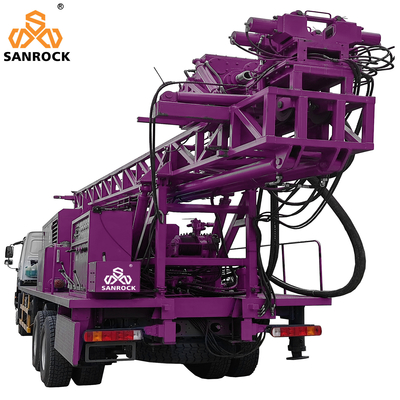

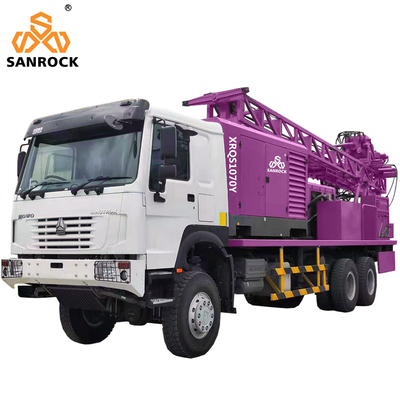

SANROCK truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 0

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 1

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 2

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 3

Features:
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 6X6 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a diesel engine, CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
7.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
8.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
9.Competitive in price, low cost of maintain.

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 4

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 5Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 6

Products Description

SANROCK TRUCK-MOUNTED DRILLING RIG SRTM400 COMPREHENSIVE OVERVIEW
DEPTH
300-400M
300-400M
300-400M
DRILLING DIAMETER
260MM
350MM
505MM
DIMENSIONS
9500*2500*3350MM
10500*2500*3600MM
11500*2500*4150MM
TOTAL WEIGHT
22000KG
25000KG
29000KG
TRUCK CHASSIS
POWER
400HP
400HP
400HP
DRIVING FORM
6*4
6*4
6*4
DRILLING TOWER,SECOND FLOOR CHASSIS
DRILLING TOWER
RETRACTABLE
RETRACTABLE
FIXED PIPE RACK TYPE
DRILL TOWER LOAD
28T
45T
50T
DRILL TOWER HEIGHT
6M
8M
8M
PULL DOWN
10T
15T
15T
PULL UP
20T
25T
30T
DRILLING RIG POWER
DIESEL ENGINE
OPTIONAL
CUMMINS
CUMMINS
RATED POWER
70KW
90KW
132KW
TOOL HOIST
MODEL
ZYJ2B
SINGLE ROPE PULL UP
2T
HYDRAULIC POWER HEAD
TORQUE
9500NM
11500NM
15500NM
REVOLUTIONS
0-70RPM
0-90RPM
0-90RPM
OTHER PARTS AND COMPONENTS
FOAM PUMP
B-36EX1
FLOW
42L/MIN
PRESSURE
4MPA
REVOLUTIONS
660R/MIN
MUD PUMP
BW450/30
BW600/30
BW850/30
FLOW
450L/MIN
600L/MIN
850L/MIN
PRESSURE
3MPA


Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 7Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 8Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 9Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 10

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 11

Company Profile

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 12

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 13

Truck Mounted Water Well Drilling Rig Machine Portable Hydraulic Water Well Drilling Rig 14

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
