Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig
Name: Water Well Drilling Rig Machine
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Power Type: Diesel
Power(w): 16.2KW
Drilling Depth: 120m
Drilling Diameter: 90-150mm
Engine: Diesel Engine
Air Consumption: 7.2-12m3/min
Working Pressure: 0.7-1.0Mpa
Once Promotion Distance: 1500mm
Impact Frequency: 800r/min
Drill Rod Diameter: 60/76mm
Drill Rod Length: 1m/1.5m
Usage: Water Well
Type: Rotary Drilling Rig
Dimension(l*w*h): 3200*1400*1500mm
Weight: 1700kg
Condition: New
After-sales Service Provided: Video Technical Support
High Light:

trailer drill rig

,

trailer mounted core drill

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRT120
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

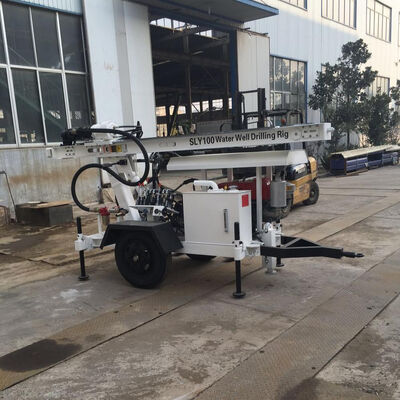

Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig

SRT120 Water Well Drilling Rig is lightweight, high efficient, multi-functional drilling rig, which can use air, foam or mud rotary for drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects,such as drilling wells, testing wells or other exploration holes , in particular in drilling geothermal heating hole, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.

Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 0Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 1

Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 2Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 3Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 4

Products Description

Product name:water well drilling rig
Model Number:SRT120
Power:16.2KW
Drilling depth :120m
Air consumption :7.2-12m3/min
Drilling diameter :90-150mm
Working pressure :0.7-1.0Mpa
Once promotion distance :1500mm
Impact frequency :800r/min
Drill rod diameter:60/76mm
Dimension(L*W*H):3200*1400*1500mm
Weight:1700kg


Advantage of trailer mounted water well drilling rig:
1. Safe and stable traveling system, two wheels type
2. Centralized operating system, easy to operate
3. Powerful feeding and rotating system, two hydraulic rotary and lifting motor to balance the speed and force.
4. As the ball type chuck and driving rod, it can complete no-stopping rotating while the spindle relift.
5. The pressure indicator of bottom hole can observe and control the well conditions easily.
6. Close levers, convenient to operate.
7. Compact size and light in weight are easy to set up and transport o working plains and mountain area.



Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 5

Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 6Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 7















Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 8

Company Profile

Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 9

Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 10

Trailer Mounted Water Well Drilling Rig 120m Deep Portable Water Well Drilling Rig 11

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
