Home /Products/Crawler Drilling Rig/300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw

300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw

1
MOQ
negotiable
Price
300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw
Features Gallery Product Description Request A Quote
Features
Specifications
Power Type: Diesel
Type: Rotary Drilling Rig
Usage: Water Well
Place Of Origin: Zhejiang, China
Weight: 8500KG
Working Pressure: 1.5-2.7Mpa
Hole Depth Max: 350M
Air Consumption: 16-30cubic Meter/min
Dimension(L*W*H): 6500*2000*2900mm
Hole Range: 138-254 Mm
Engine Power: Yuchai 92kw
Drill Pipe Length: 89mm*3m
High Light:

92kw Crawler Drilling Rig

,

Crawler Deep Well Drilling Machine

,

400m Deep Well Drilling Machine
Basic Infomation
Place of Origin: China
Brand Name: SANROCK
Certification: IOS9001 CCC
Model Number: SRSJ400
Payment & Shipping Terms
Packaging Details: 40HQ container can load one drilling rig, one air compressor, some drilling tools; Nude package for drilling rig; Wooden package for spare parts;
Delivery Time: 1-5 sets 20days; ＞5 sets To be negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets per month
Product Description

Features

SRSJ-400 Water well drilling machine is a lightweight, efficient, multi-function device of surface drill rig.

The rig could drill in the different stratum, drilling up to 254mm in diameter.

Independent module design, allows drilling rig could be loaded on a truck to increase its mobility.

The two steps of rotating and pushing speed to meet the soil and rock different, combination need.



Product Pictures

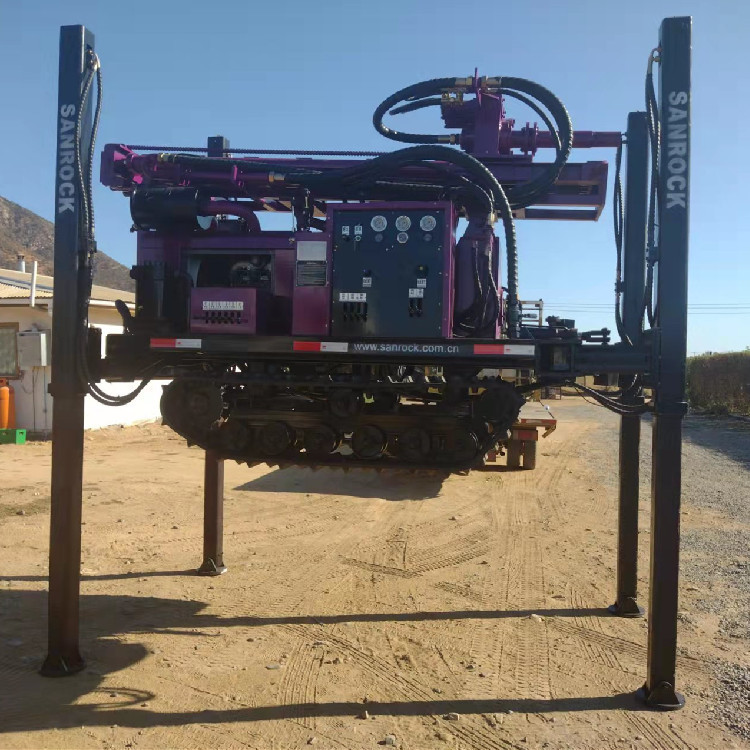

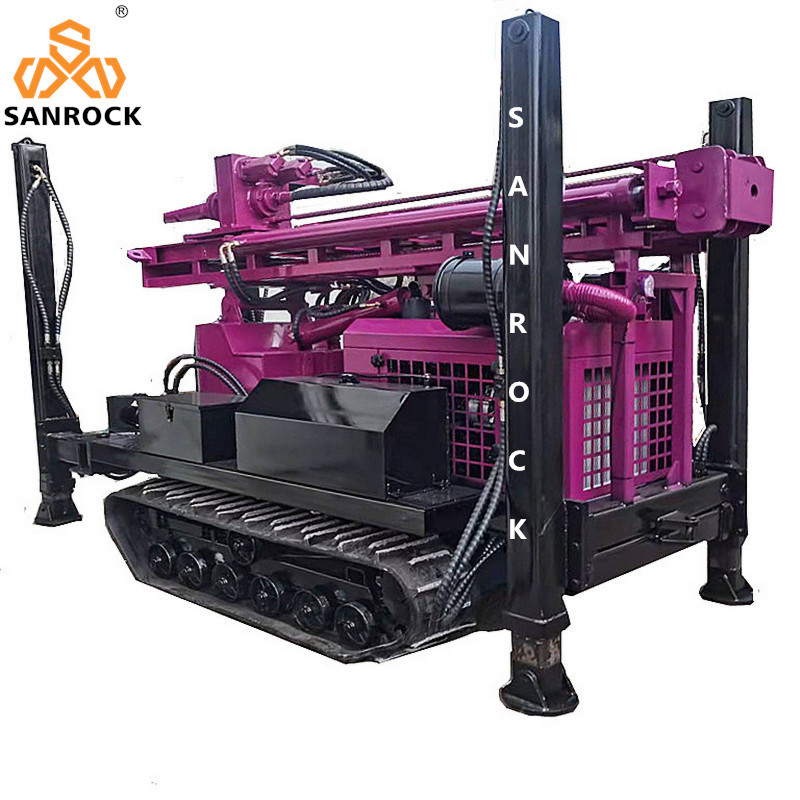

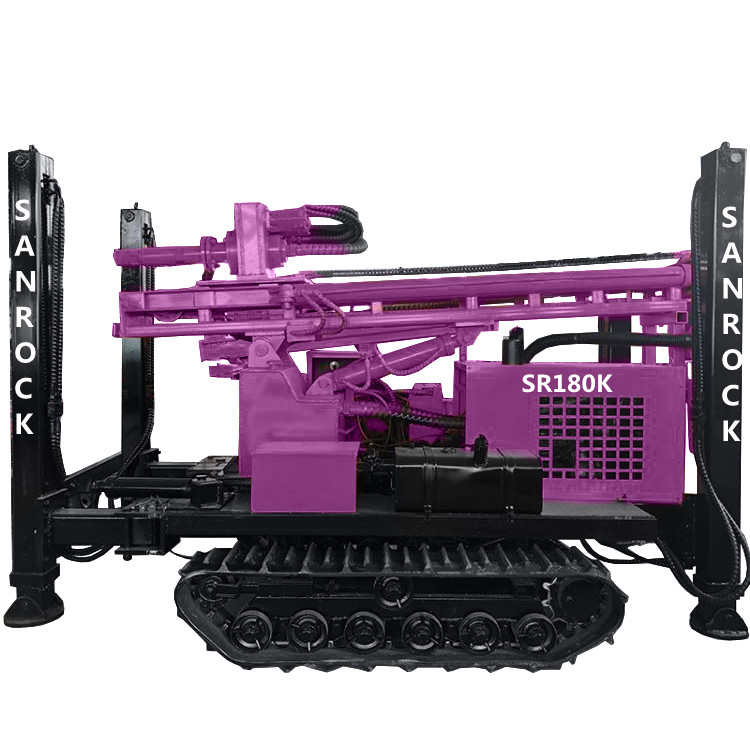

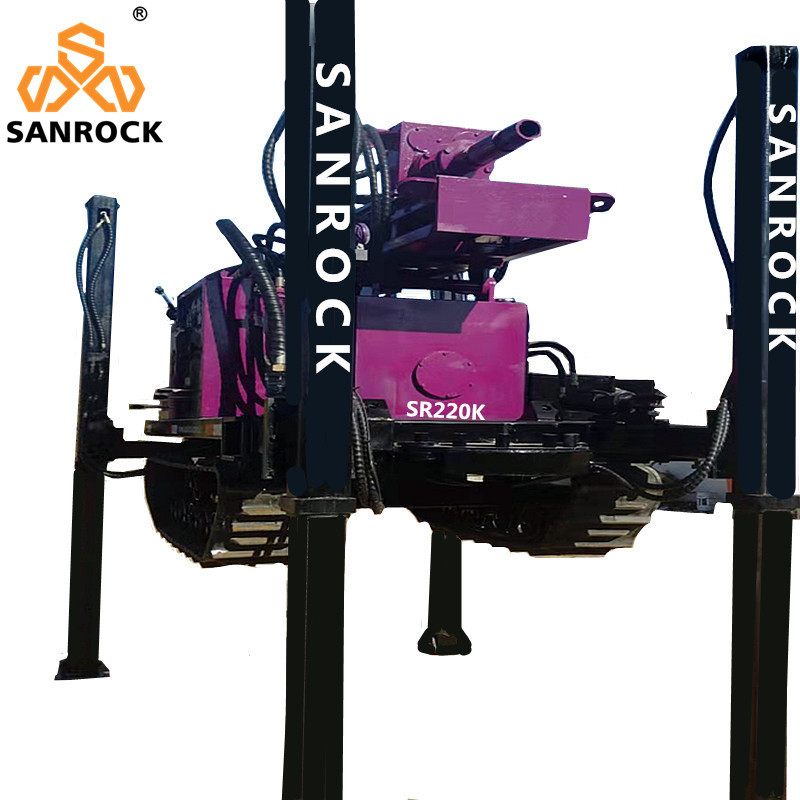

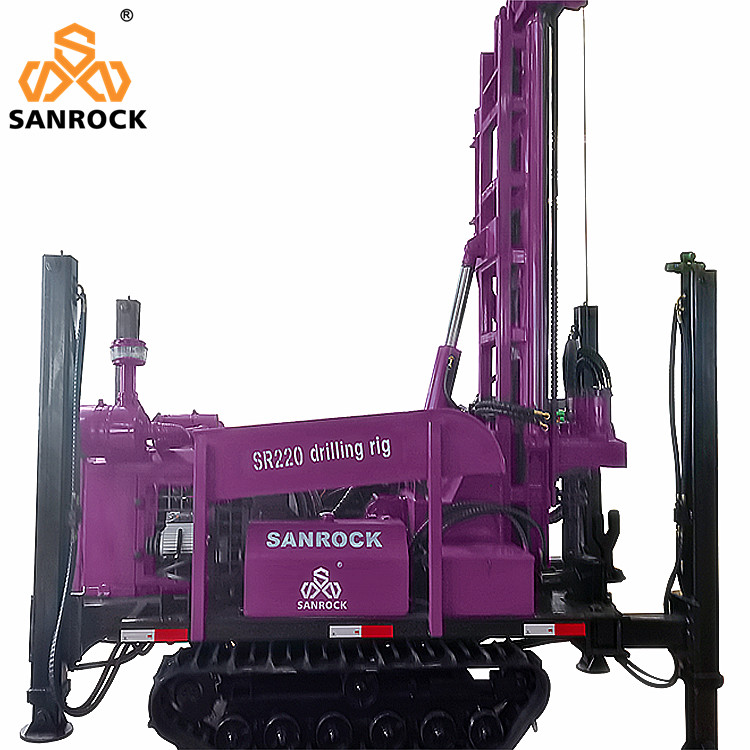

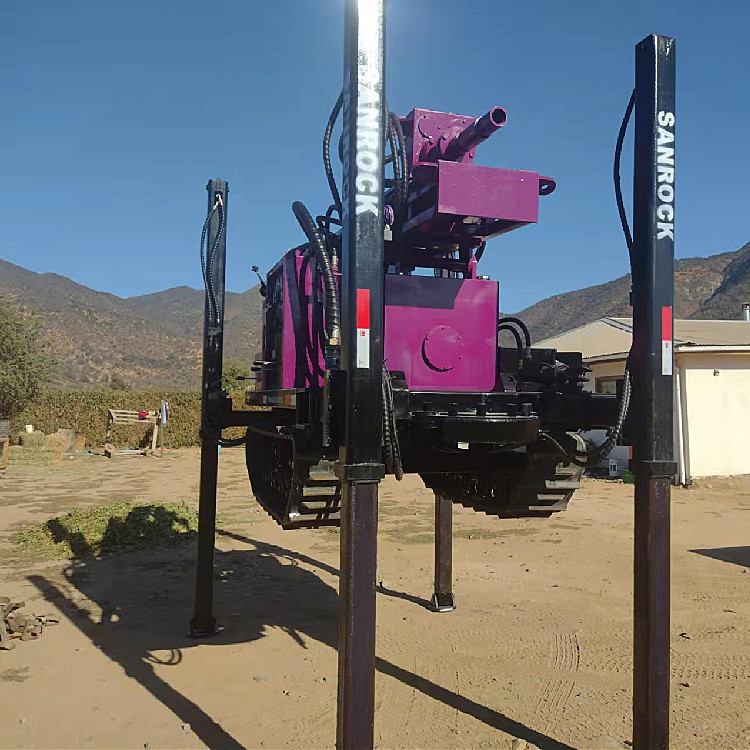

300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw 0

300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw 1

300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw 2



Product Specification

300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw 3





Product Package

300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw 4





Company Introduction

300m 400m Depth Crawler Drilling Rig Deep Well Drilling Machine 92kw 5
