194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig

1Set
MOQ
negotiable
Price

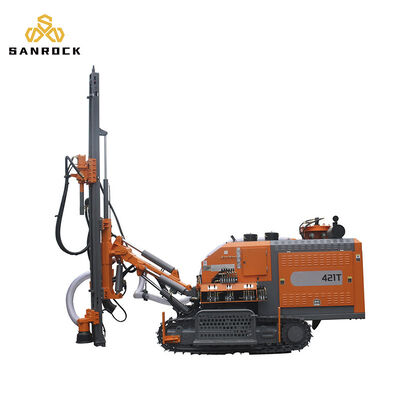

194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Power Type: Diesel
Power: 194kW
Product Name: Integrated Drilling Equipment
Name: DTH Drilling Rig
Drilling Depth: 30m
Drilling Diameter: 115-150mm
Lifting Force: 25KN
Rotary Torque: 3300N.m
Air Consumption: 16m3/min
Working Pressure: 1.8Mpa
Engine: CUMMINS
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Drilling Hardness: F=6~20
Maximun Push-pull Force: 20KN
Feed Stroke: 3690mm
Dimension(L*W*H): 6000X2300X2600 Mm
Weight: 8850 KG
High Light:

Hydraulic Blast Hole Drilling Machine

,

194KW Blast Hole Drilling Machine

,

Hydraulic Crawler Drilling Rig Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S63
Payment & Shipping Terms
Packaging Details: ude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Set/Sets per Month
Product Description

Blast hole drilling machine 198KW diesel mining hydraulic crawler drilling rig for sale

S63 mining hydraulic crawler drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 0194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 1194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 2194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 3194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 4



At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Products Description

Product name Integrated Drilling Equipment
Type
Rotary Drilling Rig
Power Type
Diesel
Engine
Cummins 194KW(Ⅲ)
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
6000X2300X2600 mm
Weight
8850KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
115-150mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
17bar
Air end
Two stage compression
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~4 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
6+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Working Pressure
1.8 Mpa
Air consumption
16 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min

194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 5

194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 6194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 7194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 8

194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 9

194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 10

194KW Diesel Blast Hole Drilling Machine Mining Hydraulic Crawler Drilling Rig 11

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
