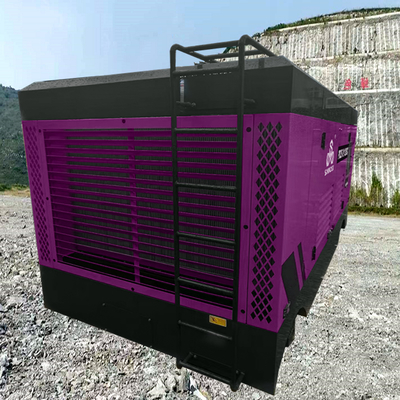

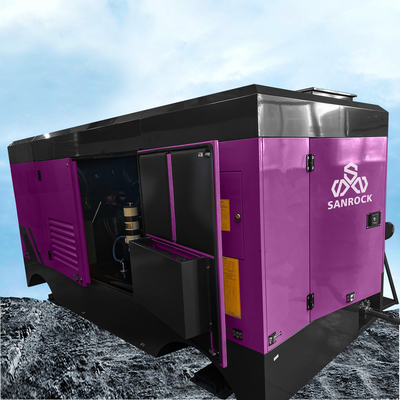

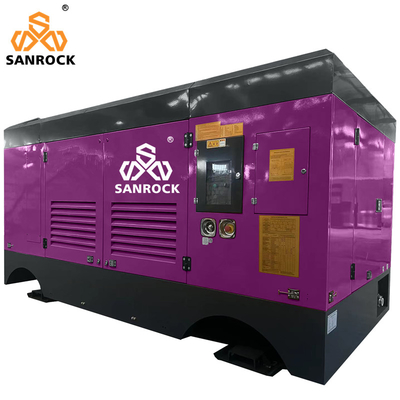

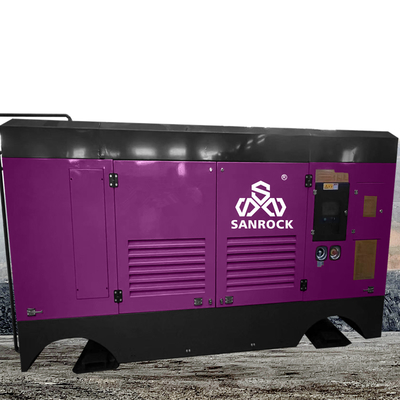

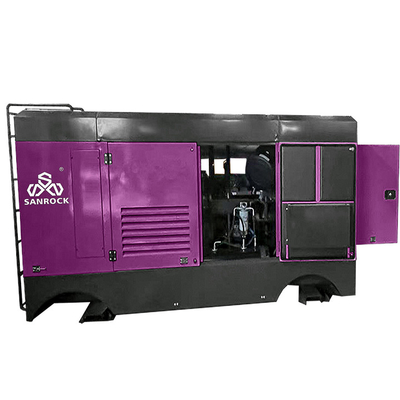

Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm

Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm

    • Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm
    • Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm
    • Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm
  • Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Sanrock
    Certification: ISO, CE, CCC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: negotiable
    Packaging Details: Nude or carton box
    Supply Ability: 100 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining Type: SCREW
    Configuration: Portable Power Source: AC POWER
    Lubrication Style: Lubricated Dimension(L*W*H): 4000*2000*2200mm
    After-sales Service Provided: Free Spare Parts, Overseas Service Center Available Air Capacity: 10-40 Cubic Meter Per Min
    Working Pressure: 10-25 Bar Voltage: 24V
    Weight: 2000-7000KG
    High Light:

    mobile screw compressor

    ,

    electric screw compressor

    Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm






    Technical Specification



    Model Nominal Pressure (Mpa) Free Air Delivery (m³/min) Motor Power Weight(kg) L*W*H(mm)
    kW (HP)
    75SDY-8 two wheels 0.8 13.6 75 (100) 1956 2810*1515*1970
    75SDY-10 four wheels 1 10 75 (100) 1832 3080*1980*1818
    75SDY-14.5 two wheels 1.45 10 75 (100) 1952 3080*1980*1818
    90SDY-8 four wheels 0.8 16 90 (120) 2273 2180*1515*1970
    90SDY-14.5 two wheels 1.45 13 90 (120) 2112 3080*1980*1810
    110SDY-8 four wheels 0.8 20 110 (150) 3170 3190*1640*2110
    132SDY-8 four wheels 0.8 24 132 (180) 3175 3190*1640*2110
    132SDY-13 four wheels 1.3 17 132 (180) 3175 3190*1640*2110
    132SDY-17 four wheels 1.7 15 132 (180) 3175 3190*1640*2110
    160SDY-13 four wheels 1.3 24 160 (220) 3398 3190*1640*2110
    185SDY-17 four wheels 1.7 19 185 (250) 3398 3190*1640*2110
    200SDY-21 four wheels 2.1 23 200 (270) 4360 3470*1920*2230



    Product packaging
    Low Medium Electric Diesel Screw Air Compressor 24v 4000*2000*2200 Mm 0
