Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig

1 Set/Sets
MOQ
negotiable
Price
Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Machine
Application: Rilling Rock Drilling Mining Quarry,blasting Hole Drilling
Machine Type: Drilling Equipment
Advantage: High Performance,High Drilling Efficiency,Hydraulic Controlling
Drilling Depth: Max.30m
Drilling Diameter: 115-150mm
Engine: Cummins 194KW(Ⅲ)
Working Pressure: 1.8 Mpa
Air Consumption: 16 M3/min
Rotary Torque (Max.): 3300 N. M
Rotary Speed: 0-120 R/min
Lifting Force: 25 Kn
Maximun Push-pull Force: 20kn
Dimension(L*W*H): 6000X2300X2600 Mm
Weight: 8850KG
Travelling Speed: 1.5~4 Km/h
Highlight:

194 KW Integrated Drilling Equipment

,

Hydraulic Mining Drilling Rig

,

Integrated Automatic DTH Drilling Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: ISO CE
Model Number: S63
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Supply Ability: 100 Set/Sets per Month
Product Description

Integrated Automatic DTH drilling machine engine 194 KW hydraulic mining drilling rig

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection. High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost. Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.

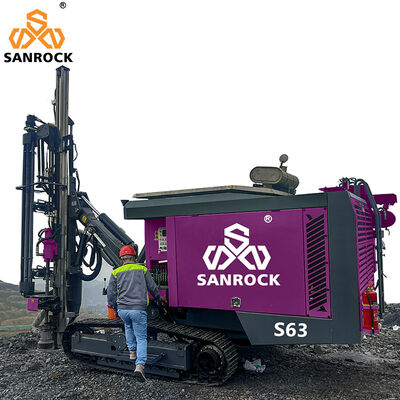

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 0

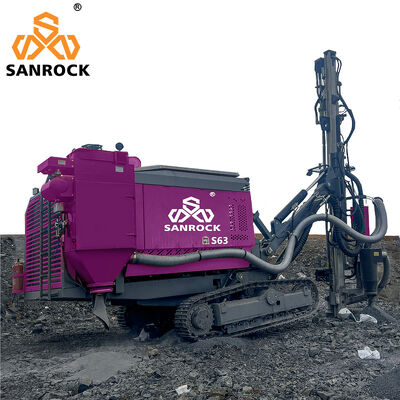

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 1

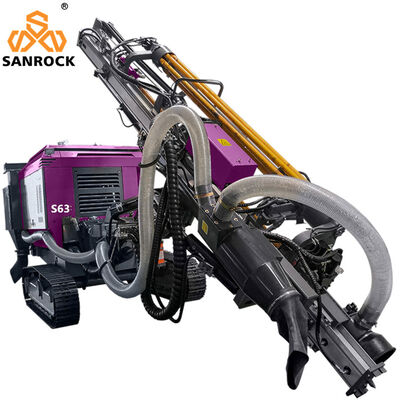

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 2

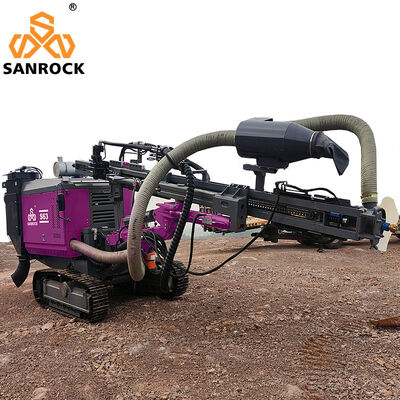

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 3

Products Description

Type
Rotary Drilling Rig
Power Type
Diesel
Engine
Cummins 194KW(Ⅲ)
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
6000X2300X2600 mm
Weight
8850KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
115-150mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
17bar
Air end
Two stage compression
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~4 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
6+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Working Pressure
1.8 Mpa
Air consumption
16 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min

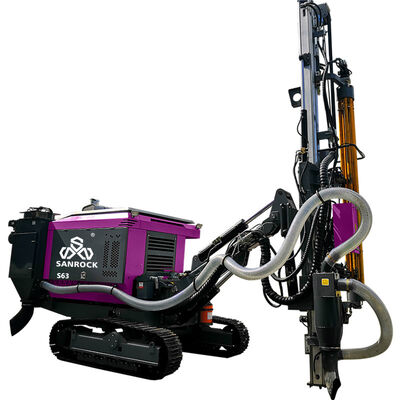

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 4

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 5

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 6

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 7

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 8

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 9

Company Profile

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 10

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 11

Integrated Automatic DTH Drilling Machine Engine 194 KW Hydraulic Mining Drilling Rig 12



1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.


5.Do you have any certificate of authorization? A: Our machinery is CE certified.
