30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole

1 Set/Sets
MOQ
negotiable
Price
30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Diesel
Product Name: Integrated Drilling Equipment
Power: 194KW
Name: DTH Drilling Rig
Drilling Diameter: 115-150mm
Drilling Depth: 30m
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Engine: CUMMINS
Rotary Torque: 3300N.m
Lifting Force: 25KN
Air Consumption: 16m3/min
Working Pressure: 1.8Mpa
Rotary Speed: 0-120r/min
Drilling Hardness: F=6~20
Maximun Push-pull Force: 20KN
Travelling Speed: 1.5~4 Km/h
Feed Stroke: 3690mm
Weight: 8850 KG
Dimension(L*W*H): 6000X2300X2600 Mm
High Light:

Hydraulic Blast Hole Drilling Rig

,

Rotary Crawler Drilling Rig 194KW

,

Rotary Blast Hole Mining Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CE ISO 9001:2015
Model Number: S63
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 10-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Set/Sets per Month
Product Description

Hydraulic crawler drilling rig rotary blast hole 30m depth Integrated drilling equipment

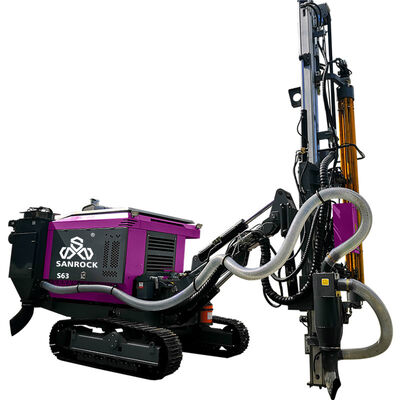

S63 Mining Automatic DTH drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 030m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 1

30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 2
At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Products Description
Type
Rotary Drilling Rig
Product name  Integrated Drilling Equipment
Power Type
Diesel
Engine
Cummins 194KW(Ⅲ)
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
6000X2300X2600 mm
Weight
8850KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
115-150mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
17bar
Air end
Two stage compression
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~4 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
6+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Working Pressure
1.8 Mpa
Air consumption
16 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min

30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 3

30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 4

30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 530m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 630m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 730m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 830m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 9

30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 10

 30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 11

30m Depth Integrated Drilling Equipment Hydraulic Crawler Drilling Rig Rotary Blast Hole 12

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
