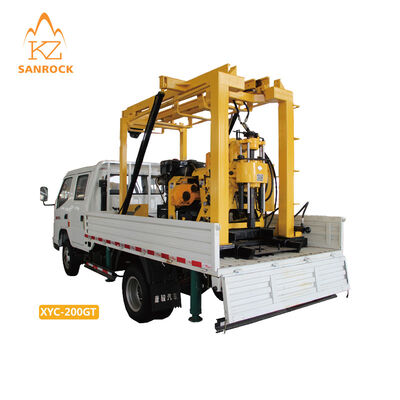

Construction Hydraulic Water Well Drilling Machine 2400*700*1400 Mm Easy Operation

1 Set/Sets
MOQ
negotiable
Price
Construction  Hydraulic Water Well Drilling Machine 2400*700*1400 Mm Easy Operation
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Core Drilling Rig
Power Type: Diesel
Usage: Water Well
Weight: 700KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Drill Pipe Diameter: 42-60mm
Drilling Depth: 130-200m
Inlet Hose Dia: 51mm
Outlet Hose Dia: 32mm
High Light:

core drilling equipment

,

portable hydraulic water well drilling rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CCC
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Supply Ability: 100 Set/Sets per Month
Product Description

Construction Hydraulic Water Well Drilling Machine 2400*700*1400 Mm Easy Operation



Product Specification



Machine Parameter
Drilling depth 30--180m
Drill rod caliber 50   42mm
End hole caliber 75   46mm
Max. open hloe caliber 220mm
Drilling angle 90°~75°
Drill weight (No include power) 610kg
Unity machine dimensions 2.1×0.9×1.3m
Spindle
spindle speed 130, 300, 480, 730, 830, 1045r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 1600kg
Single line lifting speed 1.06, 0.67, 0.32m/s
Wirerope caliber 13mm
Wirerope cubic measure 35m
Hug floodgate caliber 254mm
Hug folldgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Power
Diesle engine S1105 18HP
Electric motor Y160M—4 15KW





Product Package

Construction  Hydraulic Water Well Drilling Machine 2400*700*1400 Mm Easy Operation 0
