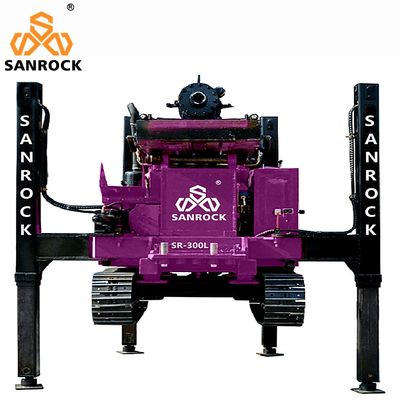

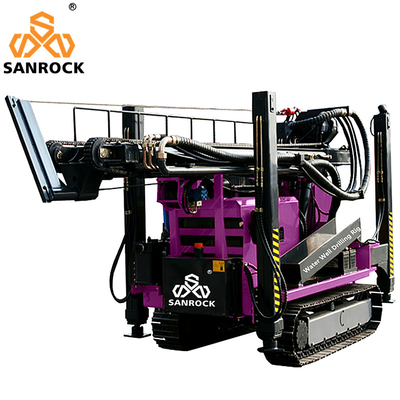

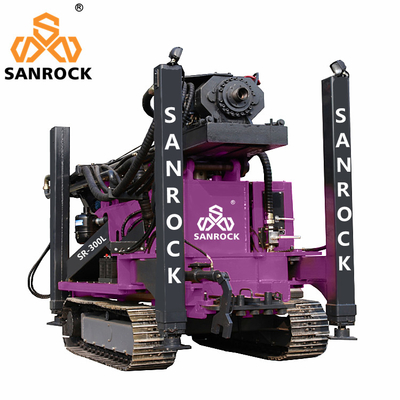

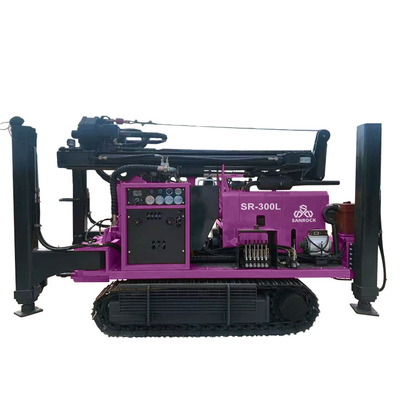

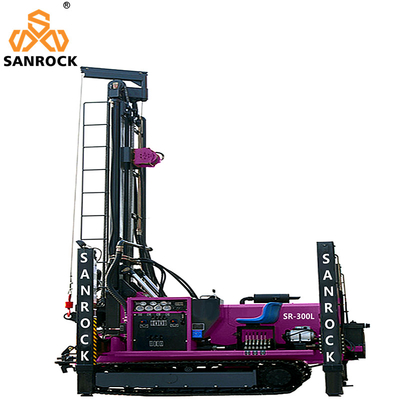

Deep Geothermal Hole Drilling Rig DTH Hard Rock Drilling Machine
Features:
This Water well drilling machine is a high-efficient, multi-function device of surface drill rig.
The rig could drill in the different stratum, drilling up to 254mm in diameter.
Independent module design, allows drilling rig could be loaded on a truck to increase its mobility.
The two steps of rotating and pushing speed to meet the soil and rock different, combination need.
Product Specification
|
Model |
ZGSJ-200 |
ZGSJ-450 |
|
Drilling hole diameter |
110-200mm |
138-254mm |
|
Drilling depth |
180m |
300m |
|
Traveling speed |
2.5km/h |
2.5km/h |
|
Rotation speed |
40-80r/min |
0-70r/min |
|
Rotation torque |
2800-5600 N.m |
7500 N.m |
|
Max feed force |
25kN |
50kN |
|
Climbing ability |
25° |
25° |
|
Ground clearance |
280mm |
300mm |
|
Weight |
5.7T |
8.5T |
|
Dimension |
5400*1900*2500mm |
6500*2000*2900mm |
|
Engine model |
Yuchai YCD4R22T-80 |
Yuchai YC4DK-125 |
|
Power |
59KW |
92KW |
