Full Hydraulic Water Drilling Rig Machine 200m 300m 400m 3800*1600*2450 Mm
1 - 1 Sets
MOQ
negotiable
Price
Full Hydraulic Water Drilling Rig Machine 200m 300m 400m 3800*1600*2450 Mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: IOS9001 CCC
High Light:

crawler drill machine

,

water well drilling equipment
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Supply Ability: 100 Set/Sets per Month
Specifications
Local Service Location: Pakistan
Showroom Location: Pakistan
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 380V
After-sales Service Provided: Overseas Third-party Support Available
Hole Depth Max: 200M
Engine Model: YC4D08
Air Consumption: 16-30cubic Meter/min
Drill Pipe Length: 3M
Product Description

Full Hydraulic Water Drilling Rig Machine 200m 300m 400m 3800*1600*2450 Mm





Product Specification

Technical Parameters of Sanrock FY200 Crawler type water well drilling rig

Model

FY200

Dimension

4000*17500*2450mm

The hole diameter

140-305mm

Drilling depth

200m

One-time advance length

3m

Walking speed

2.5KM/H

Climbing angles

30

Power

65-70KW

Using air pressure

1.7-3.0MPA

Air consumption

17-30cubic meter/min

Drill pipe length

2 meter or 3 meter

Drill pipe diameter

76mm,89mm

Rig lifting force

12T

Swing speed

45-70rpm

Swing torque

3500-4800N.m

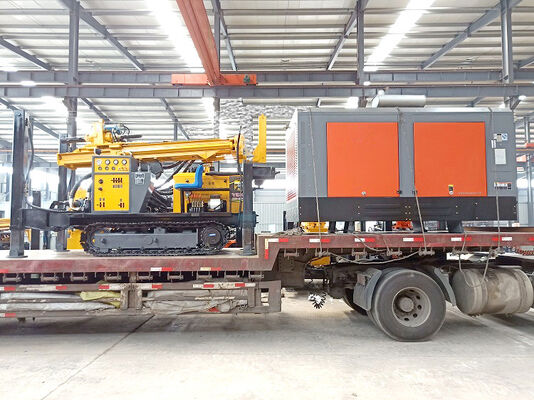

Product Package

Full Hydraulic Water Drilling Rig Machine 200m 300m 400m 3800*1600*2450 Mm 0

Full Hydraulic Water Drilling Rig Machine 200m 300m 400m 3800*1600*2450 Mm 1
