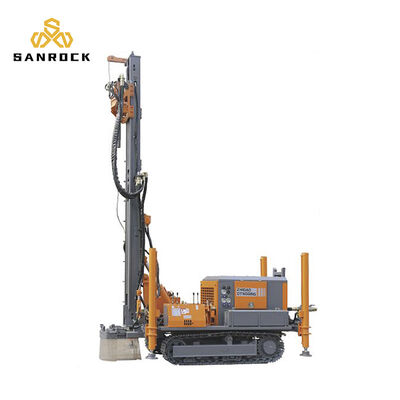

Multipurpose Crawler Drilling Rig Zgsj 200/450 Well Drilling Equipment
|
|
ZGSJ 200
|
ZGSJ 450
|
|
Engine
|
Yuchai YCD4R22T-80 59 kW
|
Yuchai YC4DK-125 92 kW
|
|
Drill Pipe Diameter
|
Φ76*3000 mm
|
Φ89*3000 mm
|
|
Hole Size
|
Φ110-200 mm
|
Φ138-219 mm
|
|
Rotation Torque
|
5660 N.m
|
7500 N.m
|
|
Rotation Speed
|
0-80 rpm
|
0-70 rpm
|
|
Feed Type
|
Oil Cylinder + Chain
|
Oil Cylinder + Chain
|
|
Feed Force
|
24 kN
|
50 kN
|
|
Pull Up Force
|
70 kN
|
130 kN
|
|
The Pull Up Force of Wich
|
1500 kg
|
1500 kg
|
|
Travel Distance of Support Jack Oil Cylinder
|
1400 mm
|
1600 mm
|
|
Tramming Speed
|
2.4 km/h
|
2.5 km/h
|
|
Gradient
|
25°
|
25°
|
|
Ground Clearance
|
280 mm
|
300 mm
|
|
Total Weight
|
5700 kg
|
8500 kg
|
|
Transportation Dimensions
|
5400*1900*2500 mm
|
6500*2000*2900 mm
|
