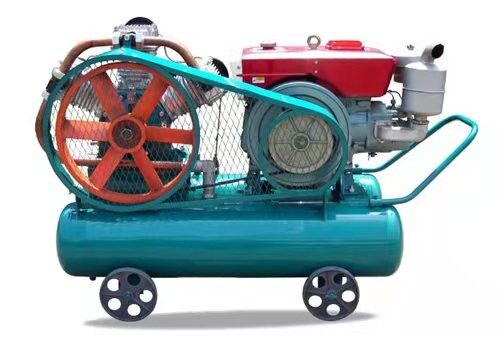

Mine Diesel Piston Type Air Compressor 1670*850*1150 Mm One Year Warranty

1 Set
MOQ
negotiable
Price
Mine Diesel Piston Type Air Compressor 1670*850*1150 Mm One Year Warranty
Features Gallery Product Description Request A Quote
Features
Specifications
Power Type: Diesel
Usage: Ore
Dimension(L*W*H): 1670*850*1150 Mm
After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training
Working Pressure: 0.5 Mpa
Rotation Speed: 1030-1200 R/min
Rated Displacement: 1.8-3.5 M3/min
Cylinder: 3 * 115/4 *115
F.A.D: 1.8-4.5
Motor Power: S1100*11kw
Highlight:

piston type air compressor

,

diesel engine air compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Payment & Shipping Terms
Packaging Details: Wooden package for spare parts; Or customer demand;
Supply Ability: 100 Set/Sets per Month
Product Description
Portable industrial diesel Piston Mine Air Compressor for sale
Technical Specification



  Motor Power Cylinder Rotation Speed F.A.D Working Pressure Dimensions Weight
qty*mm r/min m³/min Mpa(Kg/cm²) L*W*H mm kg
W-1.8/5 S1100*11kw 3 × Φ100 1200 1.8 0.5 (5) 1500*600*950 300
W-2.6/5 S1100*15kw 3 × Φ115 1030 2.6 0.5 (5) 1670*820*1150 450
W-2.8/5 S1100*15kw 3 × Φ115 1120 2.8 0.5 (5) 1670*820*1150 450
W-3.0/5 S1115*18.5kw 3 × Φ120 1070 3 0.5 (5) 1880*870*1230 460
W-3.5/5 S1125*18.5kw 3 × Φ125 1170 3.5 0.5 (5) 1880*870*1240 460
SF-3.6/5 S1125*18.5kw 4 × Φ115 1070 3.6 0.5 (5) 1960*860*1300 580
SF-4.0/5 S1125*18.5kw 4 × Φ120 1070 4 0.5 (5) 1960*860*1300 655
SF-4.5/5 S1130*22kw 4 × Φ125 1070 4.5 0.5 (5) 1960*860*1300 580
2V-3.5/5 S1125*18.5kw 4 × Φ115 980 3.5 0.5 (5) 1800*950*1300 650
2V-4.0/5 S1125*18.5kw 4 × Φ120 980 4 0.5 (5) 1800*950*1300 750
2V-4.5/5 S1130*22kw 4 × Φ130 980 4.5 0.5 (5) 1800*950*1300 750



Mine Diesel Piston Type Air Compressor 1670*850*1150 Mm One Year Warranty 0Mine Diesel Piston Type Air Compressor 1670*850*1150 Mm One Year Warranty 1Mine Diesel Piston Type Air Compressor 1670*850*1150 Mm One Year Warranty 2
