Geothermal Small Well Drilling Rig
1 Set/Sets
Geothermal Small Well Drilling Rig
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: china
Brand Name: Sanrock
Model Number: HD65
High Light:

100m small well drilling rig


150m small well drilling rig


2400rpm small well drilling rig

Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Supply Ability: 100 Set/Sets per Month
Type:: Rotary Drilling Rig
Usage:: Water Well
Weight:: 3.5T
Dimension(L*W*H):: 6000*2300*2500mm
Drill Pipe Diameter:: 89mm
Air Consumption: 16-30 Cubic Meter/min
Power:: 58KW/2400rpm
Working Pressure: 1.05-2.46Mpa
Product Description


100m 150m small geothermal water well drilling rig

Products Details

This Geothermal Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device, mainly applicable to drilling water wells, geothermal air-conditioning holes and well holes of other purposes. This drill can do drilling work at different stratums, with a hole depth of 120m.

This drilling rig adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion.

Product Specification

An engine produced by a well-known factory supplies power for the hydraulic system. Two-level air filter and air compressor air suction design can prolong the service life of the diesel engine.

Product Pictures

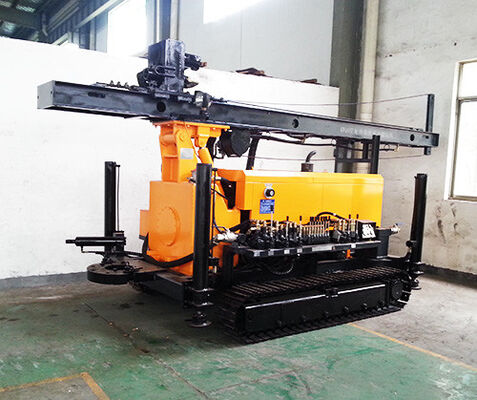

Geothermal Small Well Drilling Rig 0
Detail Pictures
Geothermal Small Well Drilling Rig 1
Geothermal Small Well Drilling Rig 2Geothermal Small Well Drilling Rig 3Geothermal Small Well Drilling Rig 4



Product Specification
Total weight (Kg) 6500
Overall Dimension (mm) 6000×2300×2500
Travel speed (Km/h) 0~2.5
Dynamic parameters(Yuchai) YC4D08
Power parameters 58Kw/2400rpm
Ground clearance(mm) 245
Leg cylinder stroke (mm) 460
Hammer (Choose)HD65
Climbing capacity(°) 15
Depth of blast hole(m) 120
Working wind pressure(MPa) 1.05-2.46
Air consumption (m3/min) 16-30
Dia. of drill rod (mm) (Choose)φ89x3000
Drill rod length (mm) 3000
Dia of bit(mm) φ115-180
Propelling oil cylinder stroke (mm) 1750
Propulsive force(N) 30000
Lifting force(N) 70000
Rotation speed (rpm) Slow 50
Fast 100
Rotary torque (N·m)
