Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Engine Power:: 191kw
Type: Rotary Drilling Rig
Hole Depth: 20M
Drilling Diameter: 110-138mm
Working Pressure: 17 Bar
Rotating Torque: 2500N.m
Drill Rod Length: 3.0m
Drill Rod Diameter: 76/89 Mm
Application: Mining Project,rock Blasting
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Travelling Speed: 3km/h
Dimension(L*W*H): 7567*2500*2900mm
Weight: 11300KG
High Light:

Depth 20m DTH Drilling Rig Machine

,

Surface Mining Drilling Rig

,

Borehole Integrated Drilling Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S83
Payment & Shipping Terms
Packaging Details: Nude package for machines,Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

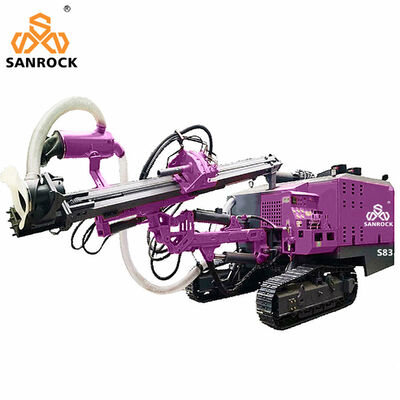

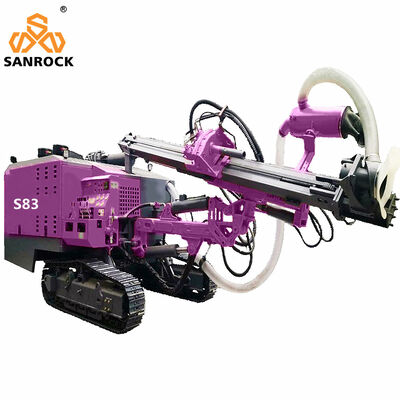

Borehole DTH Drilling Rig Surface Mining Depth 20m Hydraulic DTH Drilling Rig Machine

1.SR83 Integrated DTH Surface drill rig with single power pack(only one diesel engine)to drive both screw air compressor and hydraulic system, compared with separated drill rigs, the fuel consumption reduced by 35% and maintenance cost down by 50%.

2.Two stage dry dust collector for friendly environment and higher production efficiency.

3.Powerful two-speed hydraulic ramming mechanism with fast tramming speed.

4.Bigger and stronger designed rotation unit for smooth high torque output and less drill tools jamming 5.Centralized control console and reasonable layout for clear function view and convenient to operate.

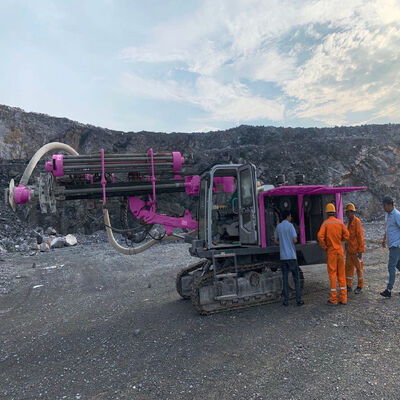

It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.

Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 0

Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 1

Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 2Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 3Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 4
Product Description
Product name: DTH Drilling Rig
Brand Name:Sanrock
Working pressure:17 bar
Engine power:191kw
Hole Depth:20M
Rotary Torque(Max.):2500N.M
Hole Range:110-138MM
Type:Rotary Drilling Rig
Travelling Speed:3km/h
Dust Collector Method:Dry dust collector
Feature:High Drilling Efficiency
Dimension(L*W*H):7567*2500*2900mm
Weight:11300KG

Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 5
Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 6
Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 7
Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 8
Borehole Integrated Drilling Equipment Surface Mining Depth 20m Hydraulic DTH Drilling Rig 9
