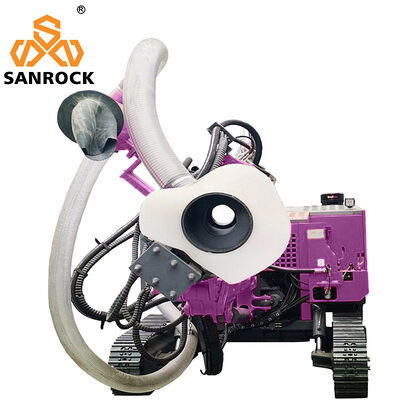

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Type: Rotary Drilling Rig
Power Type: Diesel
Engine Power: 191kw
Drilling Diameter: 110-138mm
Drilling Depth: 20m
Working Pressure: 17bar
Dust Collector Method: Dry Dust Collector
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Application: Mining Project,rock Blasting
Drill Rod Length: 3.0m
Drill Rod Diameter: 76/89 Mm
Rotating Torque: 2500N.m
Travelling Speed: 3km/h
Dimension(L*W*H): 7567*2500*2900mm
Weight: 11300 KG
High Light:

Surface Blast Hole Integrated Drilling Equipment

,

DTH Hydraulic Mining Drilling Rig

,

Integrated Rotary Blasthole Drill

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S83
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Integrated Drilling Equipment Surface Blast hole Mining Hydraulic DTH drilling rig

1.SR83 Integrated DTH Surface drill rig with single power pack(only one diesel engine)to drive both screw air compressor and hydraulic system, compared with separated drill rigs, the fuel consumption reduced by 35% and maintenance cost down by 50%.

2.Two stage dry dust collector for friendly environment and higher production efficiency.

3.Powerful two-speed hydraulic ramming mechanism with fast tramming speed.

4.Bigger and stronger designed rotation unit for smooth high torque output and less drill tools jamming

5.Centralized control console and reasonable layout for clear function view and convenient to operate.

It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 0

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 1Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 2Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 3

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 4

Product Description

Product name:DTH Drilling Rig
Brand Name:Sanrock
Working pressure:17 bar
Engine power:191kw
Hole Depth:20M
Rotary Torque(Max.):2500N.M
Hole Range:110-138MM
Type:Rotary Drilling Rig
Travelling Speed:3km/h
Dust Collector Method:Dry dust collector
Feature:High Drilling Efficiency
Dimension(L*W*H):7567*2500*2900mm
Weight:11300KG

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 5

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 6

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 7

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 8

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 9

Company Overview

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 10

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 11

Surface Blast Hole Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 12

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?

A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
