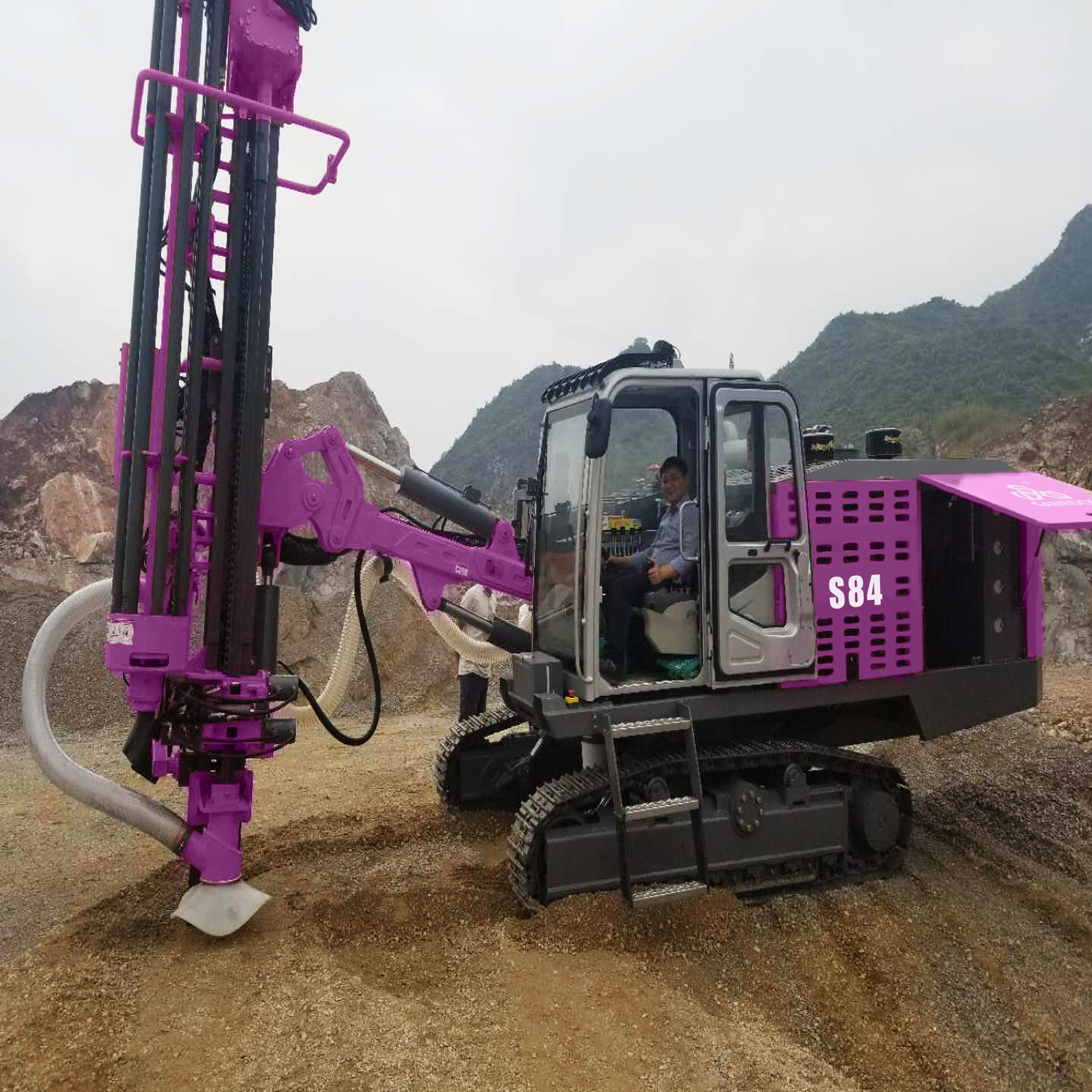

Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Type: Rotary Drilling Rig
Name: Hydraulic Drilling Rig
Engine Power: 162KW
Drilling Depth: 24m
Drilling Diameter: 90-115mm
Application: Mining Project,Construction Works
Working Pressure: 17bar
Climbing Angles: 30°
Rotation Torque: 2540 N.m
Pull Up Force: 20kN
Power Type: Diesel Engine
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Tramming Speed: 3 Km/h
Dimension(L*W*H): 9000*2360*3000mm
Weight: 13000 KG
High Light:

24m Depth Hydraulic DTH Drilling Rig

,

Integrated Rotary Drilling Rig

,

Integrated Drilling Equipment 20kN

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S84
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

DTH Drilling Rig Machine Mining Rotary Borehole 24m Depth Hydraulic DTH Drilling Rig

1.Automatic drill pipe handing system with powerful off-road performance time .Large displacement and high pressure screw air compressor for thorough flushing, to highly increase rock drilling speed and reduce the consumption of drilling tools. Powerful
feeding and rotation design for less jamming in complex rock situation. Single operator for labor costs.

2.The standard two-stage dry type dust collector(option water mist system)for much less pollution to the equipment itself, and also environment friendly.
3.Single diesel engine for both the screw air compressor and the hydraulic system,compared with separated dill rig, the total power output of the diesel engine reduced by about 35%,and the maintenance cost lowered by 50% .
4.The track oscillation system for more stable center of gravity of the drill rig. The powerful performance for less numbers of equipment and personnel required for the mine .The production design of the cab and drill pipe carousel for personnel protection from possible danger.
It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 0Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 1
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 2Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 3

Products Description
Product name:DTH Drilling Rig
Name::DTH drilling rig
Hole Depth:24M
Engine power:162KW
Drilling Diameter:90-115MM
Pull Up Force:20kN
Drill Pipe Size:68MM*3000MM
Dimension(L*W*H):9000*2360*3000MM
Weight:13000KG
Working Pressure:17Bar
Rotation Torque (Max.):2540 N.m
Tramming Speed:3 km/h
Climbing Angles:30°
Pull Up Force:20kN
Application:Mining Project,Construction works
Feature :High Drilling Efficiency,Hydraulic Controlling,Competitive Price

Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 4

Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 5
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 6
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 7

Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 8
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 9

Company Profile
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 10
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 11
Rotary Borehole Integrated Drilling Equipment 24m Depth Hydraulic DTH Drilling Rig 12
1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
