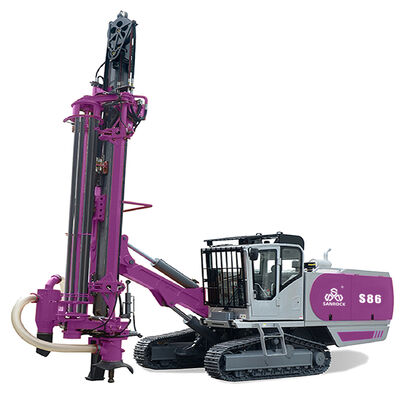

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Type: Rotary Drilling Rig
Engine Power: 264Kw
Power Type: Diesel
Name: Hydraulic Drilling Rig
Drilling Depth: 25M
Drilling Diameter: 115-152mm
Rotary Torque(Max.): 4000N.M
Working Pressure: 21bar
Travelling Speed: 3.0 Km/h
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Application: Blasting Hole Drilling,Mining Project,Construction Works
Dimension(L*W*H): 11200*2360*3100MM
Weight: 15000KG
Drill Pipe Diameter: 76*3m/89*3m
High Light:

Integrated DTH Drilling Rig Machine

,

DTH Hydraulic Drilling Rig Equipment

,

25M Integrated Drilling Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S86
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Integrated DTH drilling rig machine mining blast hole hydraulic DTH drilling rig equipment

1.Spacious, open-minded, ergonomic cab with emphasis on safety and front window protection fence. 2.Double cycloid motor,Rotation unit driven by double cycloid motor, the output torque is large, the failure rate is very low. 3. Disc Automatic lever changer ,Disc automatic lever changer, can freely select the drill pipe, prolong the tool life. 4. Dust Removal device,Dust cleaning and filtering area is large, automatic continuous self cleaning dust removal. The filter element array can be easily disassembled and maintained with high efficiency; the integrated cover can slide up and down, and the opening can be clearly observed and controlled. 5. Powerful traction,Crawler type heavy-duty chassis, crawler frame hydraulic swing device swing frame.

It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 0

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 1Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 2

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 3

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 4

Products Description

Product name:DTH Drilling Rig
Brand Name:Sanrock
Engine power:264kw
Rotary torque:4000N.m
Pull up force(Max.):31kN
Working Pressure(Max):21bar
Drilling diameter:115-152 mm
Drilling depth:25M
Tramming Speed (Max):High:3km/h
Dimension(L*W*H):11200*2360*3100MM
Weight:15000KG
Drill pipe diameter:76*3m/89*3m
Application:Mining Project,Construction works
Feature:High Drilling Efficiency,Hydraulic Controlling,Competitive Price

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 5

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 6

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 7Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 8Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 9Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 10

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 11

Company Profile

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 12

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 13

Mining Integrated Drilling Equipment Machine Blast Hole Hydraulic DTH Drilling Rig 14

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
