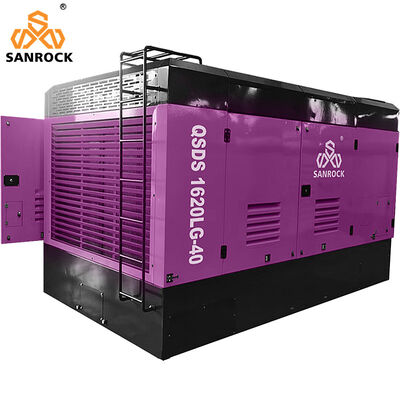

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale

1Set/Sets per Month
MOQ
negotiable
Price
Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Screw Air Compressor
Name: Diesel Screw Air Compressor
Power Source: Diesel
Engine: CUMMINS
Motor Power: 410KW
Working Pressure: 25bar, 34bar
Air Consumption: 31-29m²/min 36.5-32m²/min
Max Working/idle Speed: 1600/1400rpm 1830/1400rpm
Lubricating Oil Capacity: 120L
Fuel Tank Capacity: 700L
Total Displacement: 13L
Application: Water Well Drilling,mining Blasting
Feature: High Drilling Efficiency,Portable
Xhaust Port Specifications *Quant: G2*1&G3/4*1
Type: Screw Air Compressor
Configuration: Stationary
Condition: New
Warranty: 1 Year
Cylinder No: 6
Dimension(l*w*h): 4100x1800x2050mm
Weight: 5600kg
Highlight:

High Pressure Screw Air Compressor

,

Diesel Screw Air Compressor

,

34Bar Screw Air Compressor
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: QSDS1320LG-34
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description
1.This series primarily used with water well and geothermal project required 115-254mm drill rigs and various other air source requirement.
2.To add to the benefits of the portable compressors,this series specially good for continues running and with transportation requirement in consideration,upgraded for better durability and lower fuel consumption.
Feature:
1.The QSDS1320LG-34 screw air compressor is designed for high efficiency and high performance. It utilizes screw technology to deliver a high volume of compressed air with minimal energy consumption. 2.It can handle heavy-duty tasks and provide a continuous supply of compressed air, allowing for seamless operation in demanding environments.
3.The QSDS1320LG-34 is equipped with an control system that offers precise control over the compressor's operation. The control system enables accurate monitoring of pressure levels, temperature, and other parameters, ensuring optimal performance and safety.
4.The QSDS1320LG-34 is designed for easy maintenance and serviceability. It features accessible maintenance points and user-friendly components, simplifying routine inspections, oil changes, and filter replacements.
Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 0

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 1

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 2

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 3

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 4
Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 5Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 6

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale

Products Description

Product name
Screw air compressor
Brand Name
Sanrock
Model Number
QSDS1320LG-34
Compressor
Pressure (bar)
21-25 21-34
Air consumption (m²/min)
31-29 36.5-32
Lubricating oil capacity(L)
120
Dual transformation
Dual
Engine
brand
Cummins
Mode
QSZ 13-C550
Power (kw)
410
Max working/idle speed (rpm
1600/1400 1830/1400
Cylinder No
6
Total displacement(L)
13
Emission standard
Stage Ⅲ
Fuel tank capacity (L)
700
Unit
xhaust port specifications *Quant
G2*1&G3/4*1
Wheel specifications *Quantity
Skid mounted
Noise[Db(A)]
85±3
Dimension (mm
4100x1800x2050
Weight (kg)
5600





Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 7

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 8



Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 9

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 10

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 11

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 12Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 13

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 14

Company Profile

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 15

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 16

Diesel Screw Air Compressor Machine 34Bar High Pressure Screw Air Compressor For Sale 17

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?

A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
