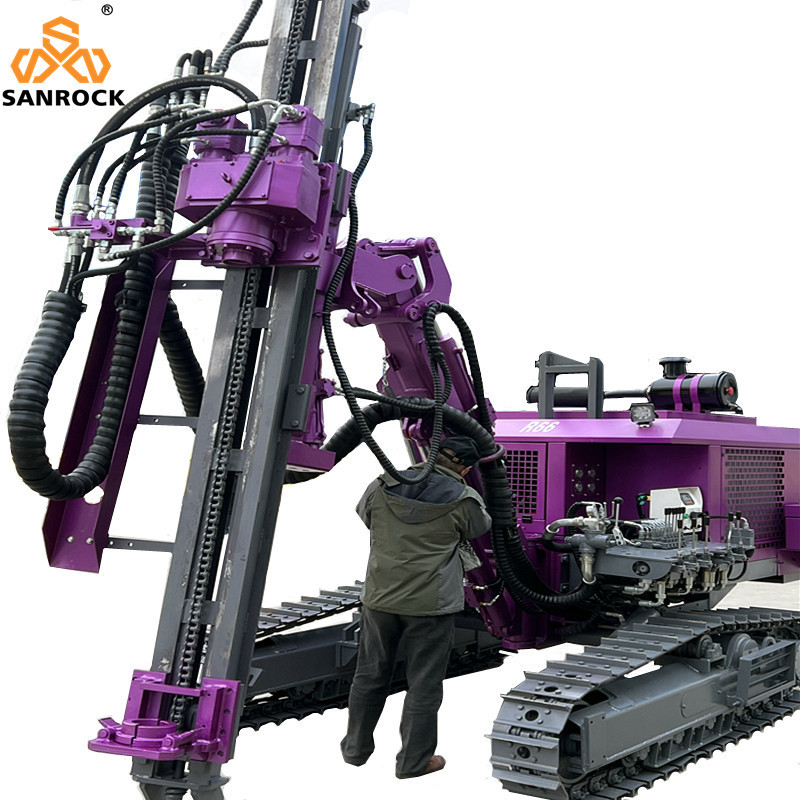

Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig

1
MOQ
negotiable
Price
Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Diesel,Electric,Air Motor
Weight: 6500kg
Dimension(l*w*h): 6000*2380*2600mm
Power(w): 73.5KW
Drilling Depth: 50m
Drilling Diameter: 90-200mm
Product Name: Dth Drilling Rig
Name: Hydraulic DTH Drilling Rig
Application: Mining,quarry,drilling Blast Hole,mining And Construction
Rotational Torque: 5000N.M
Rotate Speed: 0-180r/min
Working Pressure: 1-2.4Mpa
Lifting Force: 35KN
Air Consumption: 14-35m3/min
Drill Rod Length: 3.0m
Drill Rod Diameter: 76mm
Feature: High Efficiency,Competitive Price
High Light:

Crawler DTH Drill Rig

,

Mining Blast Hole Rotary Drilling Rig

,

180r/min DTH Rig Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: IOS9001 CCC
Model Number: R66
Payment & Shipping Terms
Packaging Details: in wooden box, then in container
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Set/Sets per Month
Product Description

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

1. This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.
3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127mm.
4.All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.
5.Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 0

Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 1

Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 2



Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 3



Mining blasthole DTH drill rig machinery 50m deep hydraulic crawler DTH drilling rig

Products Description



Product name: DTH drilling rig
Name:R66
Brand Name:Sanrock
Method of Feed:Cylinder+Chain
Rotary Torque(Max.):5000N.M
Lifting Force:35KN
Rotary Torque(Max.):2500N.m
Power:73.5KW
Drilling Depth:50M
Rotary Speed:0-180r/min
Drilling Diameter:90-200mm
Working Pressure(bar):1-2.4Mpa
Air Consumption:14-35m3/min
Travelling Speed:3km/h
Dimension(L*W*H):6000*2380*2600mm
Weight:6500 KG
Climbing Angles:30°
DTH Hammer:4"/5"/ 6"
Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 4







Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 5





Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 6















Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 7

Company Profile

Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 8

Certifications

Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 9

Mining Blast Hole DTH Drilling Machine 50m Deep Hydraulic Crawler DTH Drilling Rig 10

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
