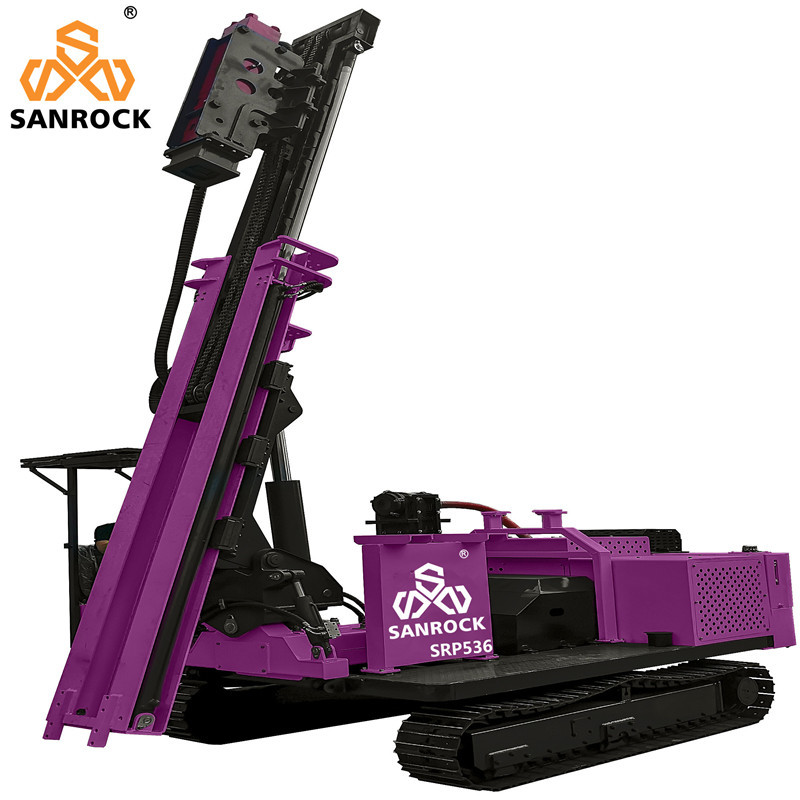

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pile Driver Machine
Name: Solar Pile Driver
Model: SRP536
Rotation Angle: 360 Degree
Power Type: Diesel
Diesel Engine Power: 70KW
Rotary Motor Torque: 5000Nm
Post Length: 5000mm
Ground Screw Length(max): 5000mm
Drilling Depth: 5m
Ground Screw Piling Depth: 3500mm
Drilling Diameter (auger Drilling): 0-350mm
Hydraulic System Pressure: 16-20Mpa
Walking Speed: 0-1600m/h
Chassis Spec(L*W*H):: 2002*1800*520mm
Track Width: 400mm
Track Height Above The Ground: 230mm
Working Dimension(L*W*H): 3890*1900*7565mm
Transportation Dimension(L*W*H): 3890*1900*2250mm
Net Weight: 6800KG
Highlight:

portable core drilling machine

,

portable hydraulic water well drilling rig

Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRP536
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver

1.Multifunction full hydraulic solar pile driver , using a new hydraulic technology, with 360 degrees of freedom to rotate, multi angle pile function.
2. The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3.Crawler walking,high walking and climbing ability .The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
4.The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
5.The centralized operation control platform makes the operation more simple and convenient.
6.This pile driver equipped with a large power head.

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 0

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 1Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 2

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 3

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 4Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 5



Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 6

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 7

This hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
The drilling rig is mainly used for photovoltaic solar spiral pile.

Products Description

Model :SRP536
Rotation Angle:360 Degree
Diesel engine power:70KW
Rotary Motor Torque :5000Nm
Post Length:5000mm
Ground screw length(max):5000mm
Drilling depth:5m
Ground screw piling depth :3500mm
Drilling diameter (auger drilling):0-350mm
Hydraulic system pressure:16-20Mpa
Walking speed:0-1600m/h
Chassis spec(L*W*H):2002*1800*520mm
Track Width :400mm
Track Height Above The Ground:230mm
Working dimension(L*W*H):3890*1900*7565mm
Transportation dimension(L*W*H):3890*1900*2250mm
Net weight:6800KG


Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 8

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 9Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 10

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 11Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 12Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 13

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 14



Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 15

Company Profile

Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 16



Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 17



Multifunctional Solar Pile Driver Machine 360Degree Rotate Ground Hydraulic Pile Driver 18

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
