Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pile Driver,Pile Driver Machine ,Solar Pile Driver
Name: Photovoltaic Pile Driver,Hydraulic Pile Driver
Application: Solar Photovoltaic Engineering Construction,Foundation Construction
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Power Type: Diesel
Power: 78KW
Drill Diameter: 90-400mm
Drilling Depth: 4-10m
Air Consumption: 15-17m/min
Maximun Push-pull Force: 20kn
Lifting Force: 18kn
Max.rotary Torque: 7000N.m
Working Pressure: 1.0-1.7Mpa
Walking Speed: 2km/h
Dimension(L*W*H): 5000X2200X2550mm
Weight: 5000 Kg
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRP400
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig

SRP400 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc.

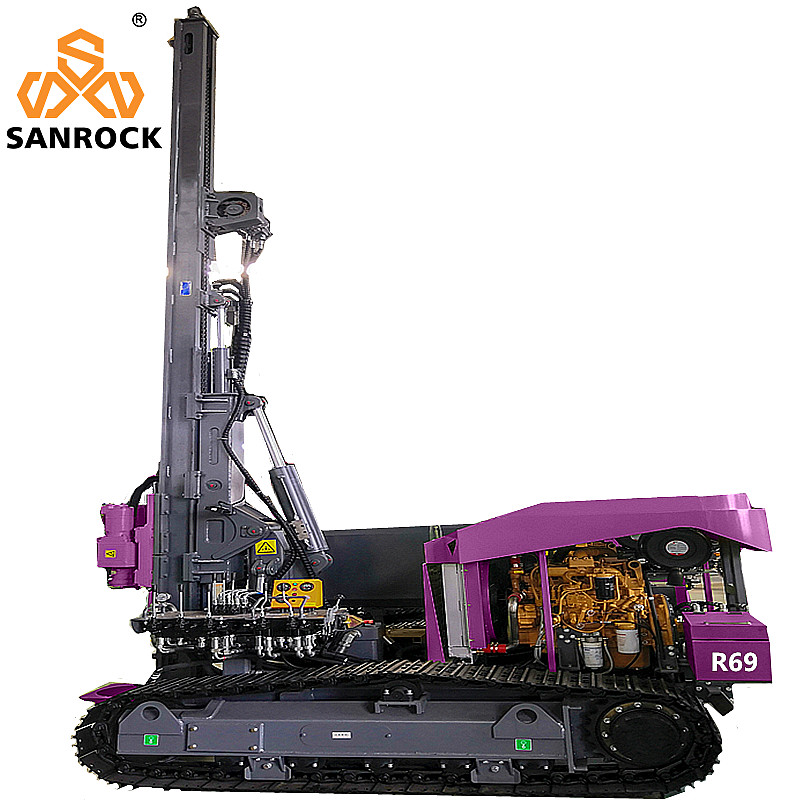

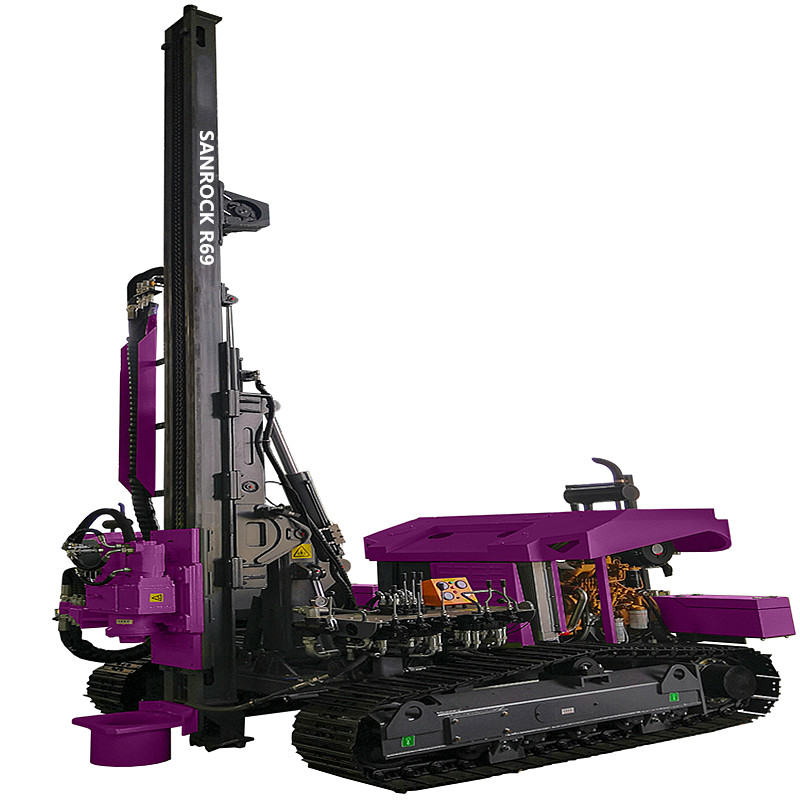

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 0Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 1

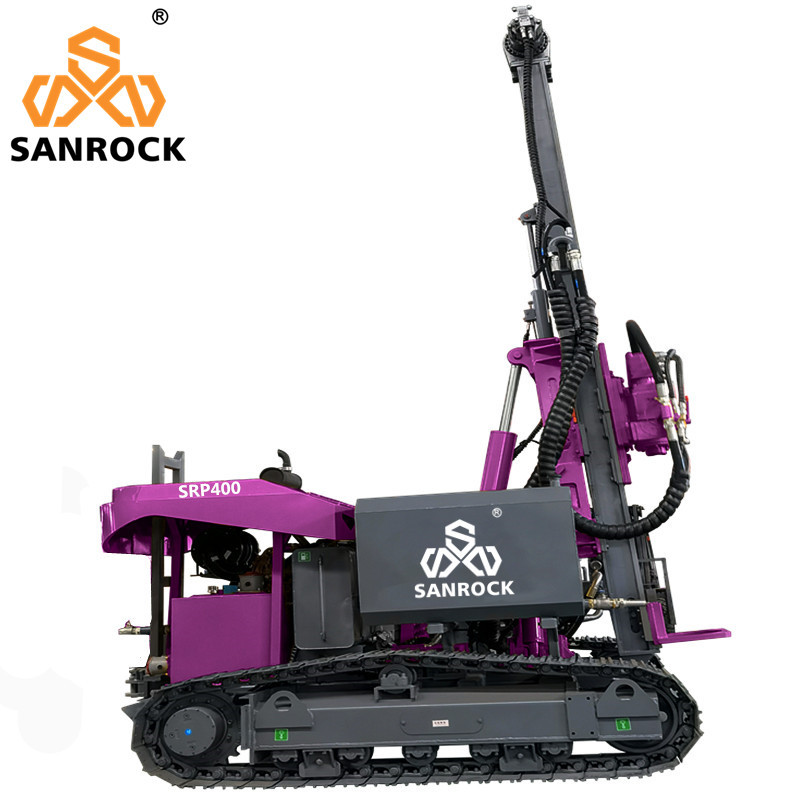

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 2





Feature:

With the crawler chasis and the advanced hydralic hammer or drilling head, the pile driver have great adaptablity to all kinds of terrians and complicated conditions.using new type of hydraulic technology, convenient for hole transfer . The drilling machine structure is compact, while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. the machine hydraulic pressure can be adjusted according to different soil textures,so as to achieve the appropriate impact power for pile driving.New model SRP400 hydraulic diesel solar pile driving driver machine equipment used with hammer is a new type of pile driver.

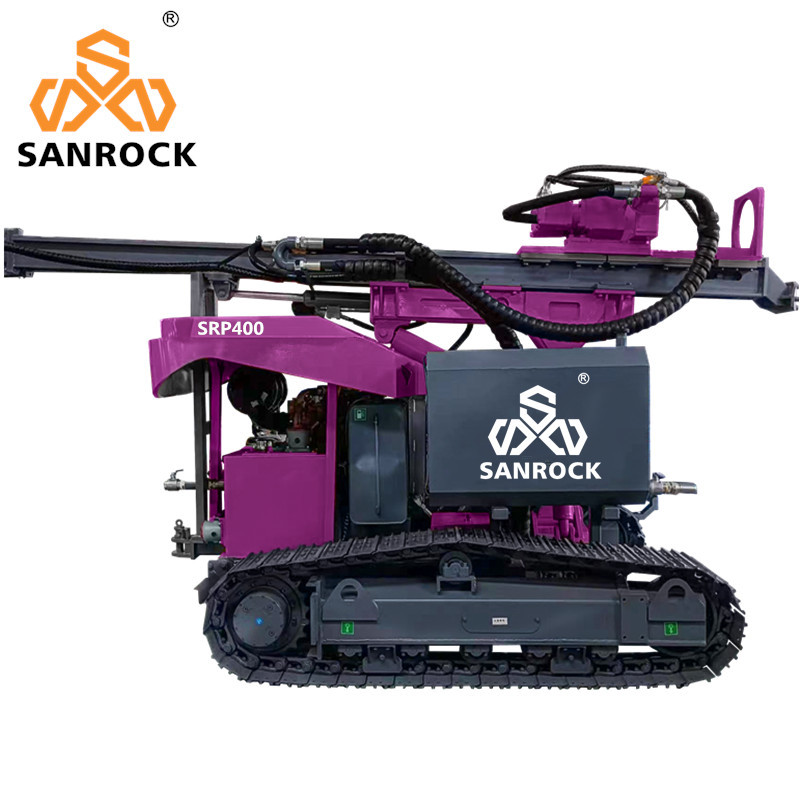

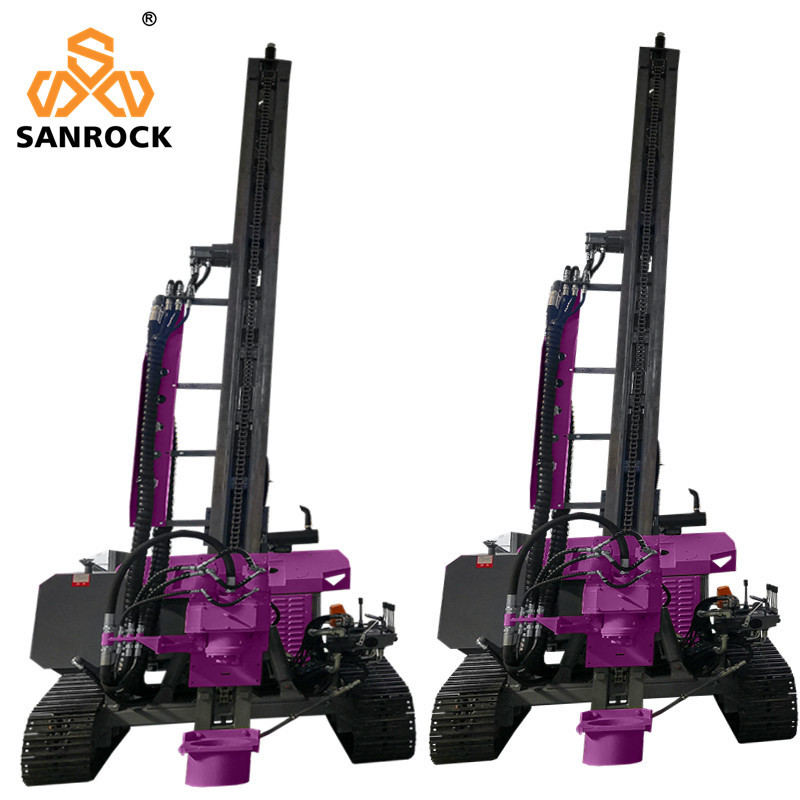

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 3Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 4



Products Description

Model :SRP400
Product name:Solar Pile Driver
Supporting power :Yuchai YCD4T22T-105A
Dimensions (LxWxH):5000X2200X2550mm
Net weight :5000kg
Engine power :78kw
Drilling diameter:90-400mm
Depth ofeconomical drilling: 4-10m
Drilling rod :φ89mmX3000mm
Working Pressure :1.0-1.7Mpa
Air consumption :15-17m/min
Max.rotary torque :7000N.m
Rotary speed :0-80r/min
Feed stroke :3000mm
Compensation length :900mm
Maximun push-pull force :20kn
Lifting force :18kn
Method of Feed :motor chain
Travelling speed :2km/h
Climbing capacity :30°
Ground clearance :380mm
Weight :5000kg
Dimensions (LxWxH):5000X2200X2550mm
Volume of diesel oil tank :100L

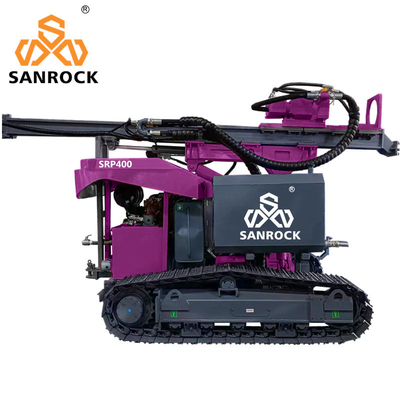

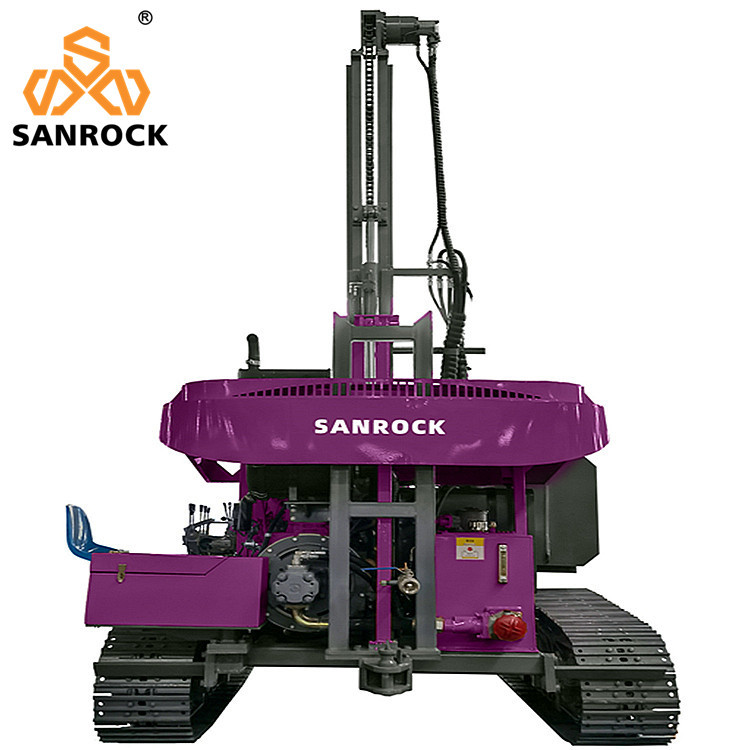

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 5Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 6

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 7

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 8

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 9Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 10Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 11Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 12

Company Profile

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 13

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 14

Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig 15

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.





4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
