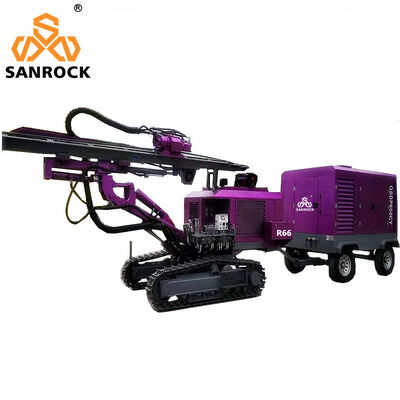

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery

1
MOQ
negotiable
Price
Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Dimension(L*W*H): 6000*2380*2600mm
Weight: 6500kg
Hole Range: 90-200mm
Hole Depth Max: 50m
Drill Pipe Dia: 76mm
Drill Pipe Length: 3m
Power Type: Diesel,Electric,Air Motor
Power(w): 73.5KW
Product Name: Dth Drilling Rig
Air Consumption: 14-35m3/min
Working Pressure: 1-2.4 Mpa
Application: Mining,quarry,drilling Blast Hole,mining And Construction
Rotational Torque: 5000N.M
Lifting Force: 35KN
Rotate Speed: 0-180r/min
Feature: High Efficiency,Competitive Price
High Light:

Mining DTH Rig Machine

,

Depth 50m DTH Drilling Machine

,

180r/min DTH Drilling Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: IOS9001 CCC
Model Number: R66
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Hydraulic DTH drilling rig rotary borehole depth50m mining DTH drilling rig machinery

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 0

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 1





Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 2







1. This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.
3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127mm.
4.All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.
5.Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.



Products Description



Product name: DTH drilling rig
Name:R66
Brand Name:Sanrock
Method of Feed:Cylinder+Chain
Rotary Torque(Max.):5000N.M
Lifting Force:35KN
Rotary Torque(Max.):2500N.m
Power:73.5KW
Drilling Depth:50M
Rotary Speed:0-180r/min
Drilling Diameter:90-200mm
Working Pressure(bar):1-2.4Mpa
Air Consumption:14-35m3/min
Travelling Speed:3km/h
Dimension(L*W*H):6000*2380*2600mm
Weight:6500 KG
Climbing Angles:30°
DTH Hammer:4"/5"/ 6"

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 3



Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 4

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 5

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 6

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 7



Company Profile

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 8

Certifications

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 9

Depth 50m Hydraulic DTH Drilling Machine Rotary Borehole Drilling Rig Mining Machinery 10

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
