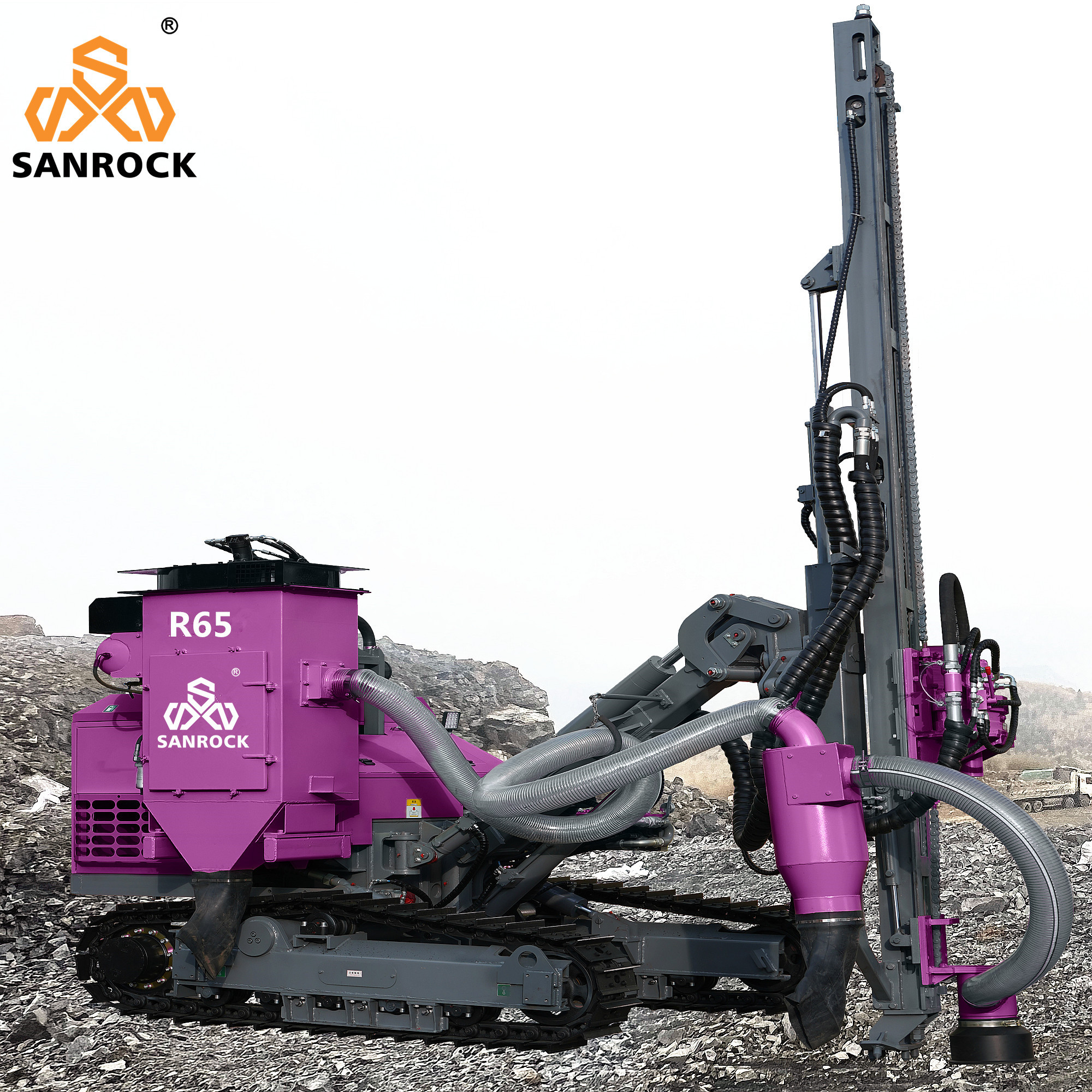

Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig

1 Set/Sets
MOQ
negotiable
Price
Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Usage: Ore
Engine: Yuchai
Power: 78KW
Lifting Force: 25KN
Rotational Torque(Max): 2500N.m
Air Consumption: 10-18m3/min
Working Pressure: 0.7-1.8Mpa
Drilling Depth: 35m
Drilling Diameter: 90-140mm
Feature: High Drilling Efficiency,Competitive Price
Power Type: Diesel,Electric,Air Motor
Weight: 5300kg
Dimension(l*w*h): 5550*2290*2600mm
Product Name: Dth Drilling Rig
Name: DTH Drilling Machine
Application: Mining,quarry,drilling Blast Hole,mining And Construction
Walking Speed: 2.5km/h
Rotate Speed: 0-140r/min
High Light:

Mining Hydraulic Drilling Rig

,

35m DTH Drilling Machine

,

Mining DTH Drilling Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: IOS9001 CCC
Model Number: R65
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Supply Ability: 100 Set/Sets per Month
Product Description

Rotary blasthole DTH drilling machine depth 35m mining hydraulic drilling rig manufacturers

1.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.

2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency.

4. All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.

5. Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 0Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 1

Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 2

Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 3Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 4

Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 5Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 6Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 7Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 8

Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 9Rotary Blasthole DTH Drilling Machine Depth 35m Mining Hydraulic Drilling Rig 10
