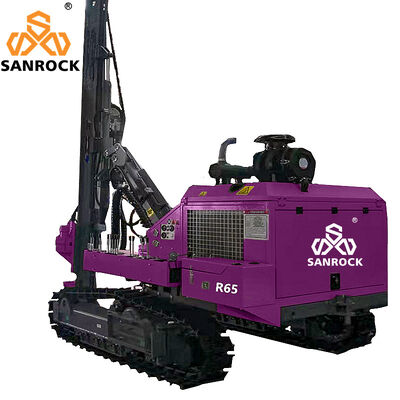

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig

1 Set/Sets
MOQ
negotiable
Price
Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Engine: Yuchai
Rotate Speed: 0-140r/min
Lifting Force: 25KN
Working Pressure: 0.7-1.8Mpa
Rotational Torque(Max): 2500N.m
Air Consumption: 10-18m3/min
Power Type: Diesel,Electric,Air Motor
Usage: Ore
Power(w): 78kw
Drilling Depth: 35m
Drilling Diameter: 90-140mm
Product Name: Dth Drilling Rig
Name: Mining Drilling Rig
Application: Mining,quarry,drilling Blast Hole,mining And Construction
High Light:

78kw DTH Drilling Machine

,

Rotary Borehole Drilling Rig

,

Mining Dth Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: IOS9001 CCC
Model Number: R65
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 10-25days
Payment Terms: L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Supply Ability: 10000 Set/Sets per Month
Product Description



Mining DTH Drilling Rig 78kw diesel power hydraulic rotary borehole drilling rig for sale

1.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.

2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency.

4. All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.

5. Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 0Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 1

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 2Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 3

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 4Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 5

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 6Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 7Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 8

Company Profile

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 9

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 10

Mining DTH Drilling Rig 78kw Diesel Power Hydraulic Rotary Borehole Drilling Rig 11

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
