Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig

1 Set/Sets
MOQ
negotiable
Price
Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig
Features Gallery Product Description Request A Quote
Features
Specifications
Power Type: Diesel
Power(w): 78KW
Product Name: Dth Drilling Rig
Air Consumption: 15~17 M3/min
Working Pressure: 1.0-1.7Mpa
Name: Pile Driver Machine
Application: Solar Photovoltaic ,drilling Blast Hole,mining And Construction
Drilling Depth: 10m
Drilling Diameter: 90-400mm
Rotate Speed: 0-80r/min
Rotary Torque: 7000N.m
Drilling Rod: φ 89mmX3000mm
Dimension(L*W*H): 5000X2200X2550 Mm
Weight: 5000KG
Climbing Capacity: 30°
High Light:

dth drilling rig

,

dth rig machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CE ISO 9001:2015
Model Number: R69
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

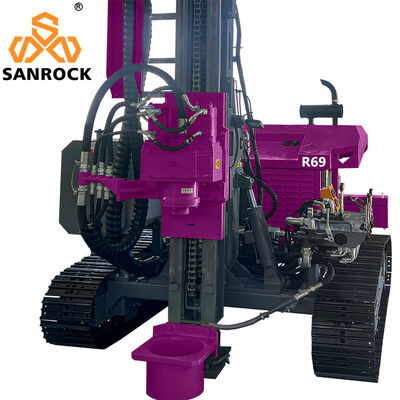

 Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig

R69 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc.

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 0

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 1

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 2

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 3

Products Description

Type
Rotary Drilling Rig
Power Type
Diesel
Supporting power
Yuchai
Rated Power
78KW
Dimension(L*W*H)
5000X2200X2550 mm
Weight
5000KG
Climbing capacity
30°
Drilling Diameter
90-400mm
Drilling Depth
Max.10m
Product name
Drilling Machine
Application
mining ,Solar Photovoltaic ,construction work
Feature
High Drilling Efficiency,Multifunction,Competitive Price
Keyword
DTH Drilliing Rig
Rotary Torque
7000N.m
Rotate speed
0-80r/min
Traveling speed
2 Km/h
Drilling rod
φ 89mmX3000mm
Compensation length
900 mm
Working pressure
1.0-1.7Mpa
Air consumption
15~17 m3/min
Drilling hardness
f=6~20
Volune of diesel oil tank
100 L
Feed stroke
3000 mm

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 4

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 5

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 6

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 7

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 8

Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 9





Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 10Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 11Pile Driver machine photovoltaic engineering construction crawler hydraulic drilling rig 12



1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
