Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig

1 Set/Sets
MOQ
negotiable
Price
Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Diesel
Power: 206KW
Product Name: DTH Drilling Rig
Name: Hydraulic Drilling Rig
Engine: Yuchai
Drilling Depth: Max.30m
Drilling Diameter: 115-152mm
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Feature: High Drilling Efficiency,Hydraulic Controlling
Air Consumption: 20m3/min
Rotary Torque: 3300N.m
Rotary Speed: 0-120r/min
Lifting Force: 25KN
Working Pressure: 20 Bar
Drilling Hardness: F=6~20
Volune Of Diesel Oil Tank: 280 L
Method Of Dust Collecting: 14 Core Dry Type
Maximun Push-pull Force: 20kn
Travelling Speed: 1.5~4 Km/h
Dimension(L*W*H): 8800*2250*2600mm
Weight: 10000KG
Drilling Rod: φ 76mmX3000/2000mm
High Light:

Diesel Integrated Drilling Equipment

,

30m Depth Blast Hole Drilling Rig

,

Borehole Mining Hydraulic Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CE ISO 9001:2015
Model Number: S63D
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Borehole DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.

High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost.

Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.

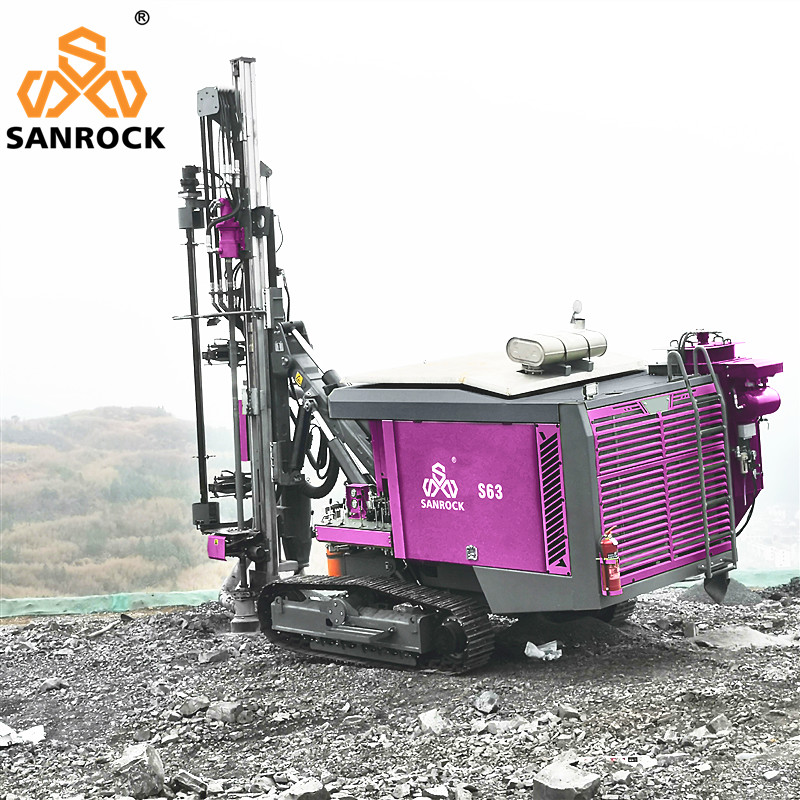

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 0

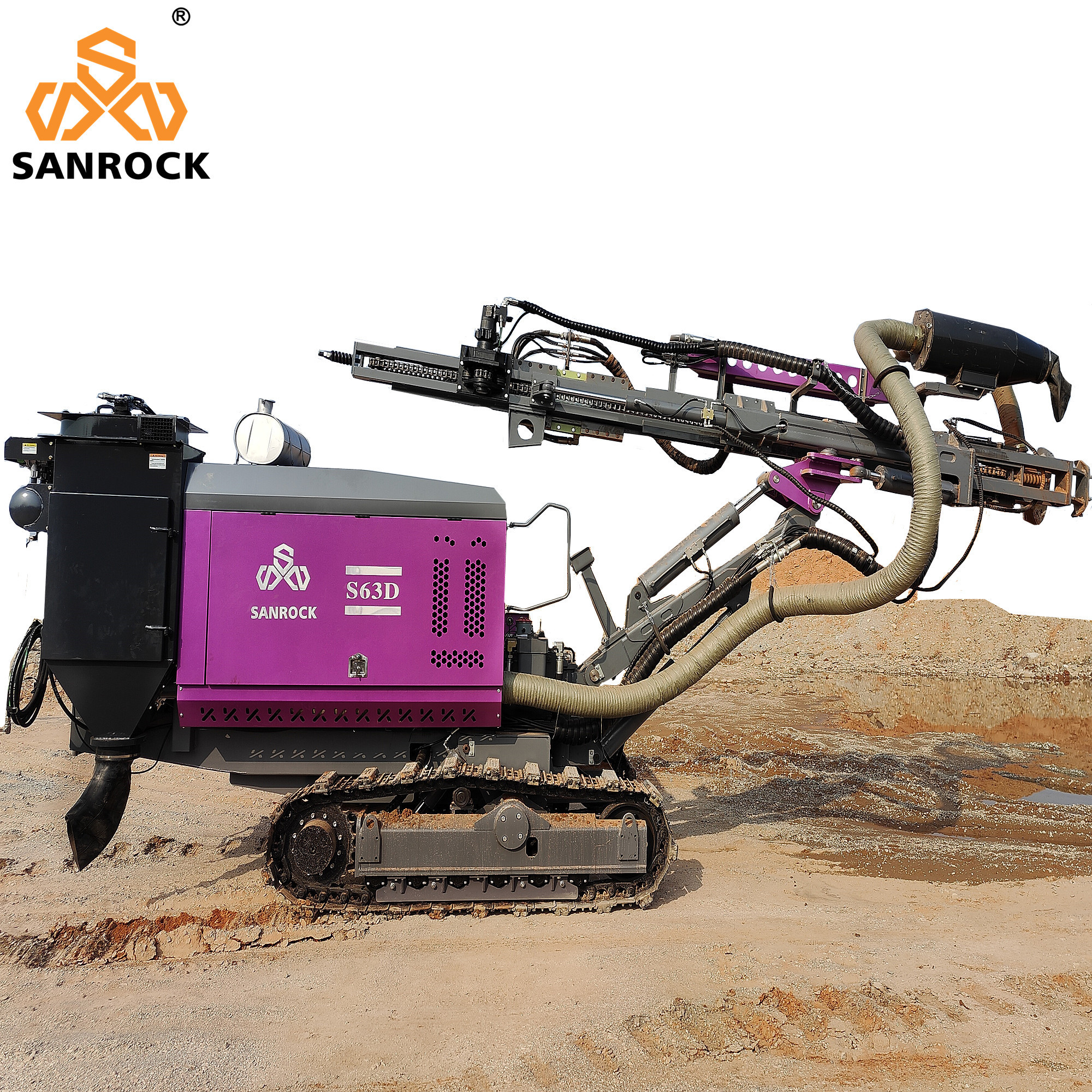

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 1

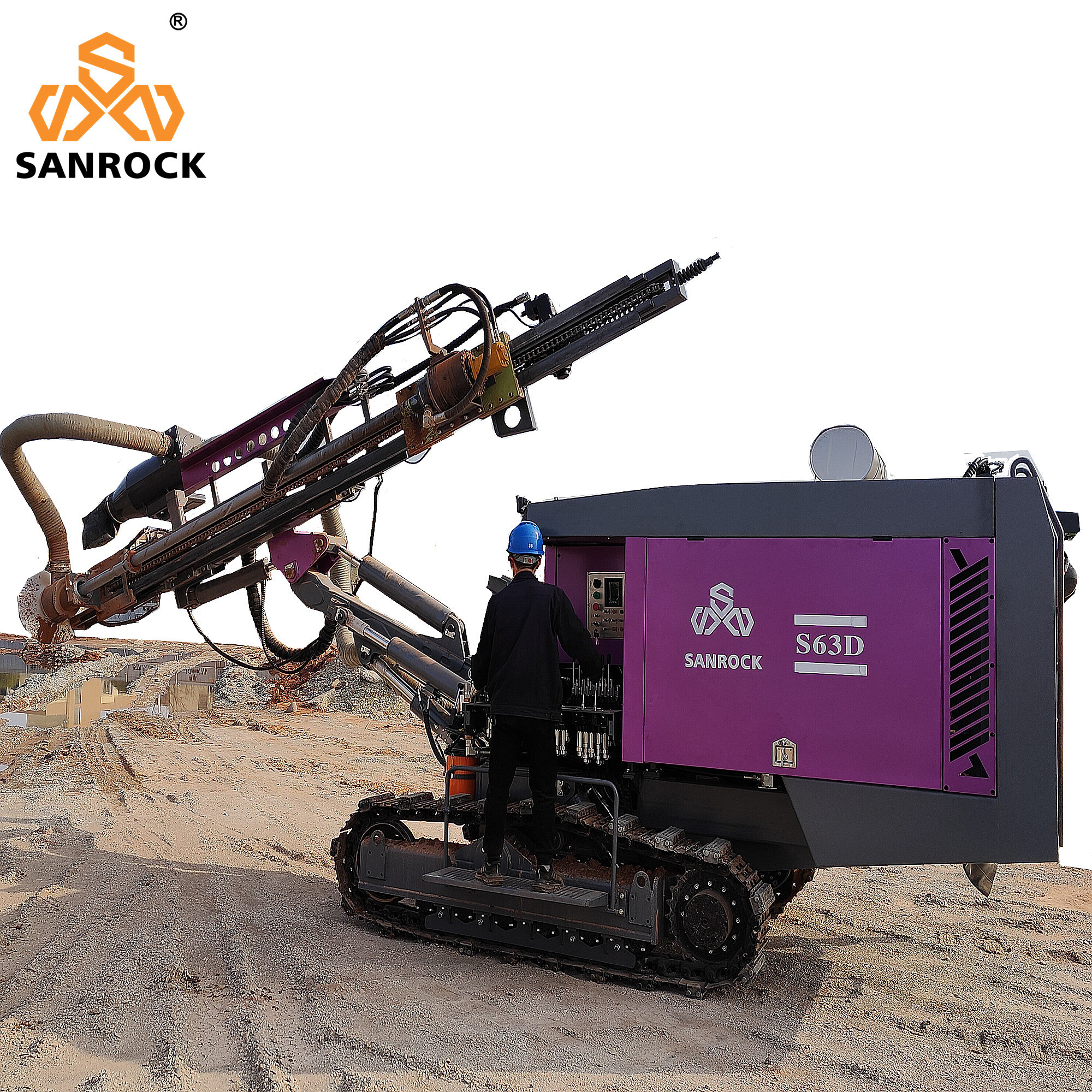

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 2

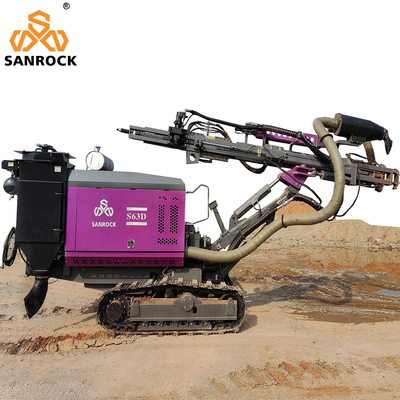

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 3

Product Description



Type
Rotary Drilling Rig
Power Type
Diesel
Engine
Yuchai 206kw
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
8800*2250*2600mm
Weight
10000KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
115-152mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
20bar
Air end
Two stage compression
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~4 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
6+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Air consumption
20 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min

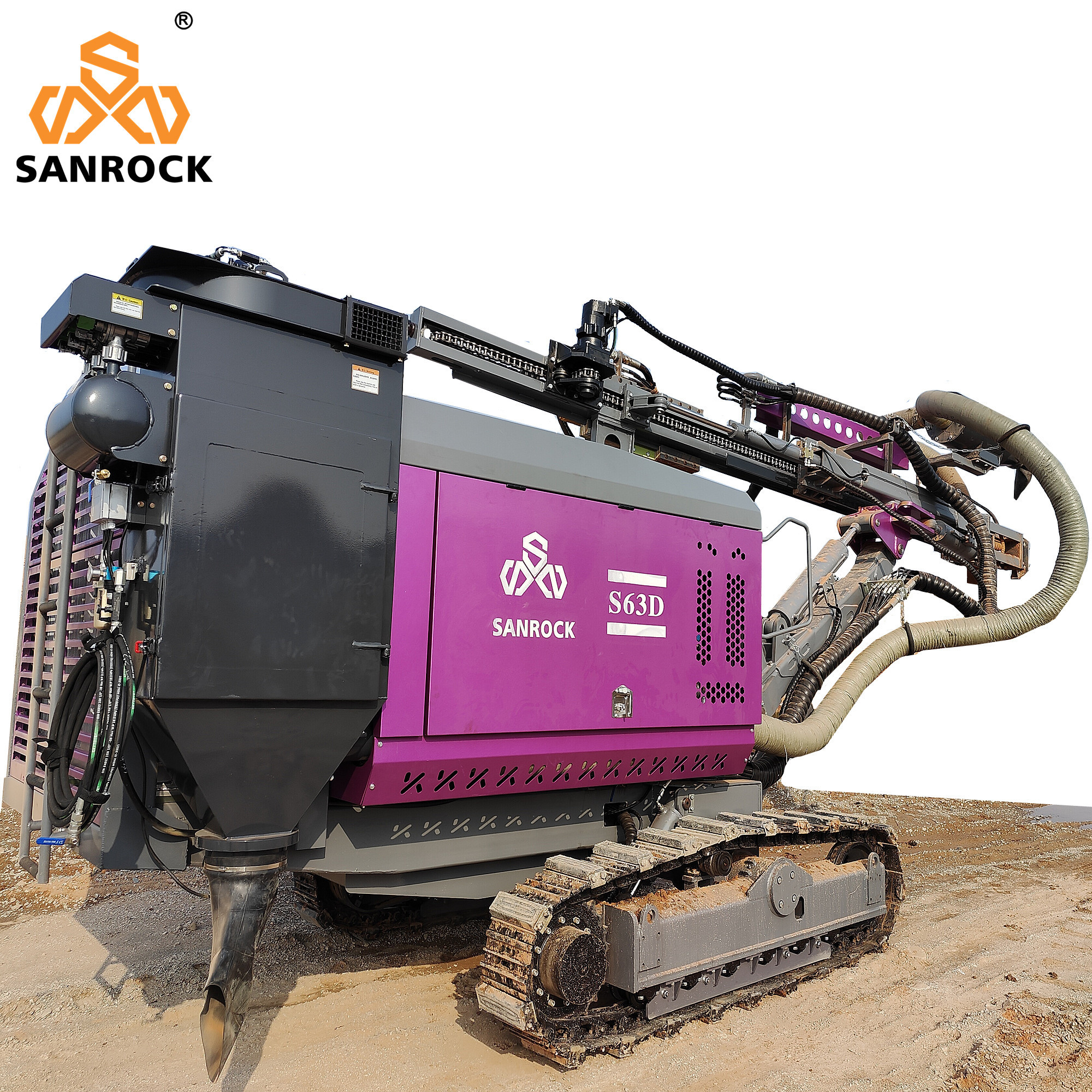

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 4

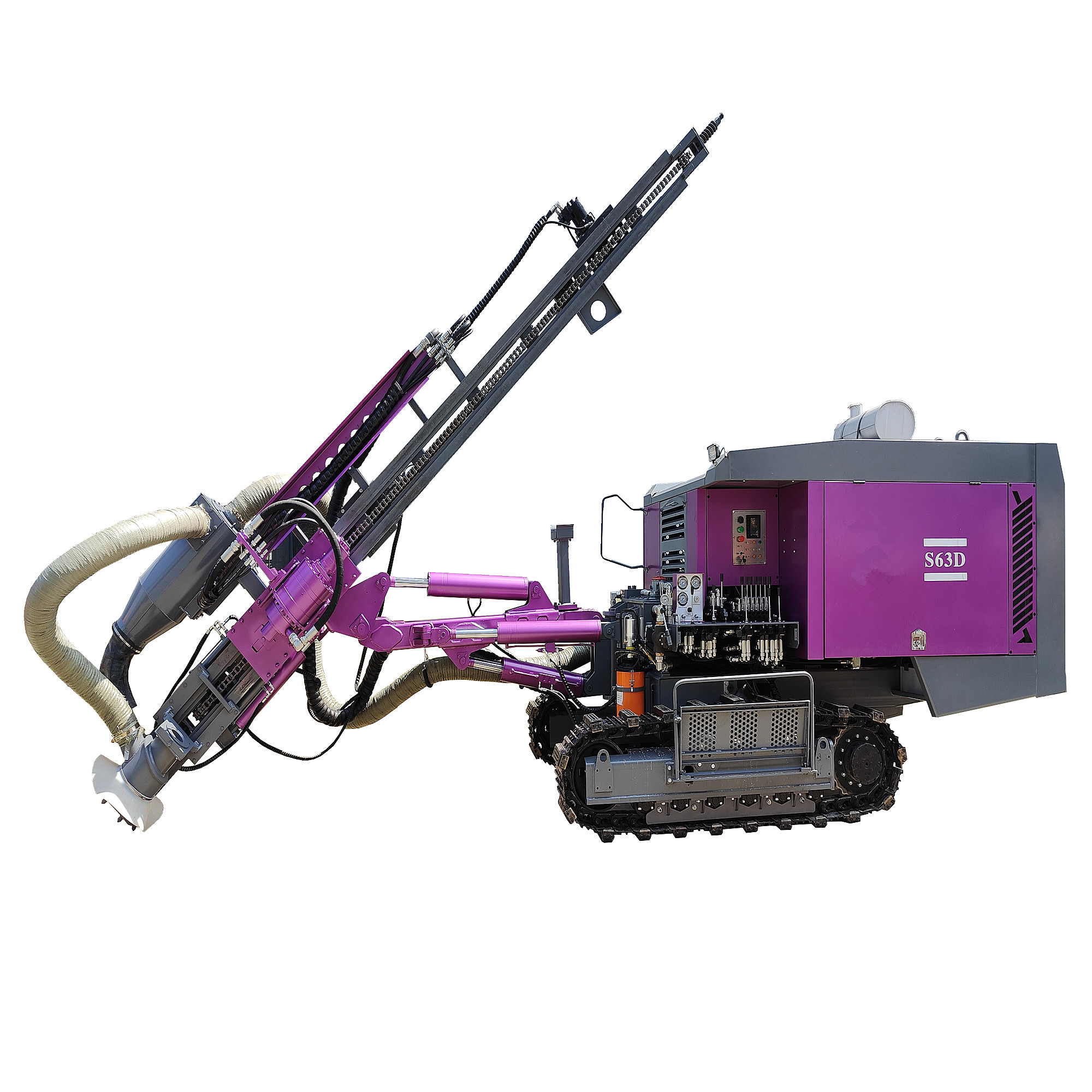

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 5

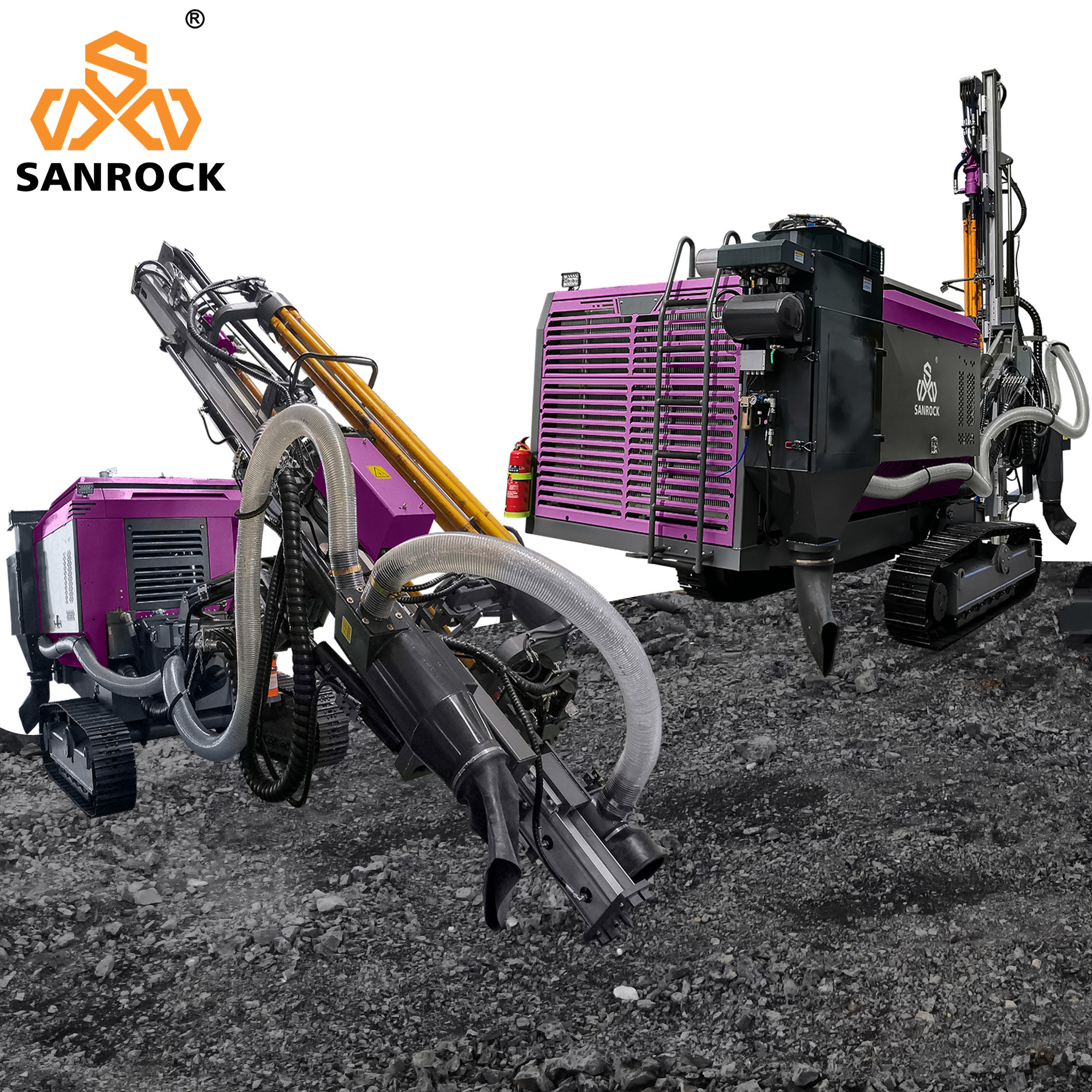

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 6

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 7

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 8

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 9



Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 10

Company Information

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 11

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 12

Borehole Integrated Drilling Equipment 30m Depth Mining Hydraulic DTH Drilling Rig 13

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
