Hydraulic Rotary Borehole Integrated Drilling Equipment Mining Crawler DTH Drilling Rig

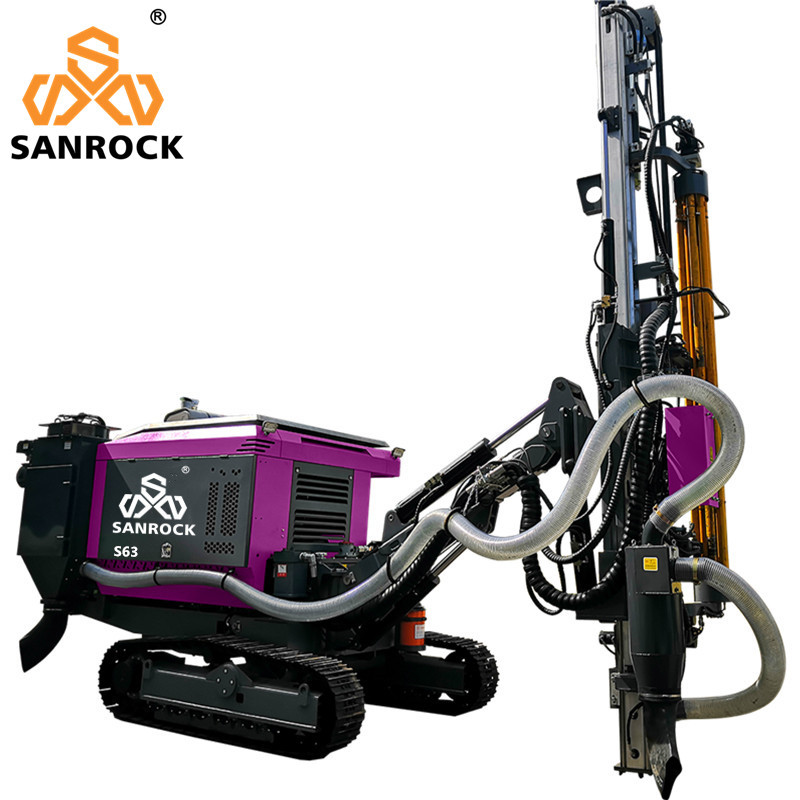

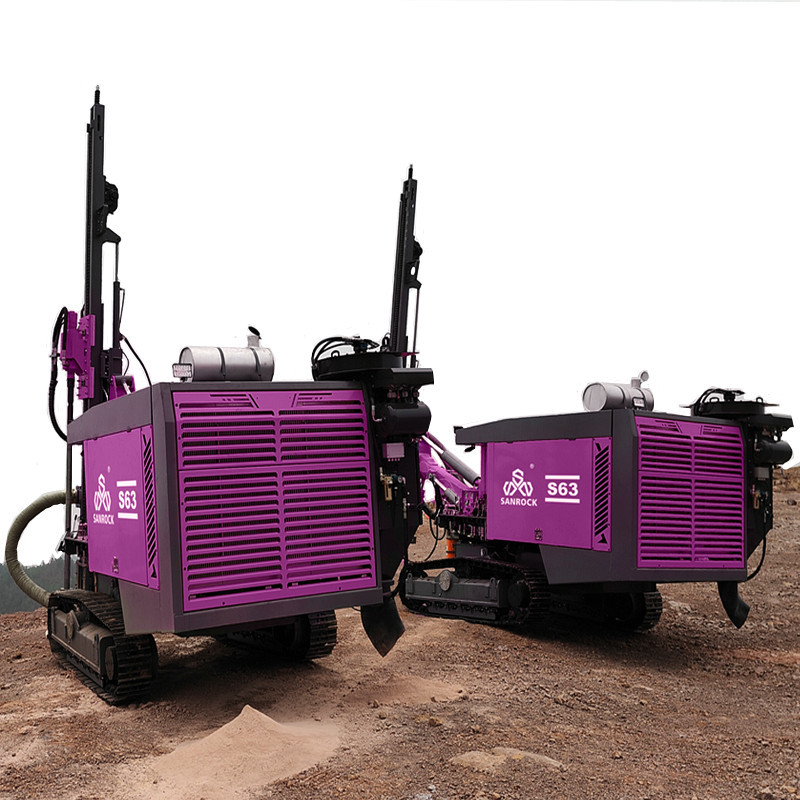

S63 mining crawler DTH drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

The hydraulic down-the-hole (DTH) drilling rig for mining offers distinct advantages, including superior power transmission and precise control over drilling parameters. Its hydraulic system provides higher torque and penetration rates, ensuring efficient operation even in challenging rock conditions. The rig delivers smoother, quieter performance with reduced vibration, which enhances operator comfort and equipment longevity. Additionally, the hydraulic design eliminates the need for compressed air in the hammer mechanism, lowering energy consumption and environmental impact. With improved reliability, easier maintenance, and better adaptability to various terrains, the hydraulic DTH drilling rig significantly boosts productivity while reducing overall operational costs.

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Product Description

Product name	Integrated Drilling Equipment
Type	Rotary Drilling Rig
Power Type	Diesel
Engine	194KW(Ⅲ)
Application	Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)	6000X2300X2600 mm
Weight	8850KG
Key Selling Points	High efficiency, high production capacity,Competitive Price
Drilling Diameter	115-150mm
Drilling Depth	Max.30m
Drilling hardness	f=6~20
Volune of diesel oil tank	280 L
Method of dust collecting	14 Core Dry type
Compressor F.A.D	540 CFM
Compressor pressure PSI	17bar
Air end	Two stage compression
Feed stroke	3690mm
Maximun push-pull force	20kn
Compensation length	900mm
Lifting force	25 kn
Method of Feed	motor+roller chain
Travelling speed	1.5~4 km/h
Climbing capacity	30°
Ground clearance	360 mm
Drilling rod	6+1, φ 76mmX3000/2000mm
DTH hammer	3"/4"/5''
Working Pressure	1.8 Mpa
Air consumption	16 m3/min
Rotary torque (Max.)	3300 N. m
Rotary speed	0-120 r/min

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I place the order?
Sign the PI,pay deposit,we will arrange the production.  After finished production pay balance.  Finally we will  ship the goods.
3.How is the shipment?   How long dose it take?
 For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.
4.How is your quality control?
We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
Our comprehensive inspection service goes beyond basic checks. We analyze performance,and provide a detailed report to maximize your uptime, reduce operating costs, and extend the lifespan of your equipment.
