Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Core Drilling Rig
Type: Core Drilling Rig
Power Type: Diesel
Power(w): 42kw
Engine: Yunnei Yn27
Drilling Depth: 350m
Drilling Angle: 90°
Rotary Torque: 9800N.m
Mechanical Winch Capacity: 4.5Ton
Drilling Diameter: 75-220mm,AQ BQ NQ HQ
Drill Pipe Length: 2.0m
Name: Borehole Drilling Rig,water Well Drilling Machine,core Drilling Rig
Feature: High Drilling Efficiency,portable,geological Coring Machine
Application: Coal,Geological Exploration
Usage: Coal,water Well.core Sample
Warranty: 1 Year
Dimension(l*w*h): 4600*1900*2540mm
Weight: 3500 KG
Highlight:

portable core drilling machine

,

portable hydraulic water well drilling rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRC350M
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig

SRC350M core drilling rig water and gas dual-use series drilling rig is a multi-functional drilling machine . The drilling rig has a high speed and can be drilled with a mud pump to solve the difficulty of drilling the soil air DTH hammer. The boring machine has a large torque and can slide up and down. DTH can be used when working with hard rock layers, gravel and pebble layers under deep wells. DTH hammer drilled. The drilling rig can be specialized in drilling, monitoring wells, geothermal air conditioning drilling, diamond bit wireline core drilling, engineering geological investigation operations.

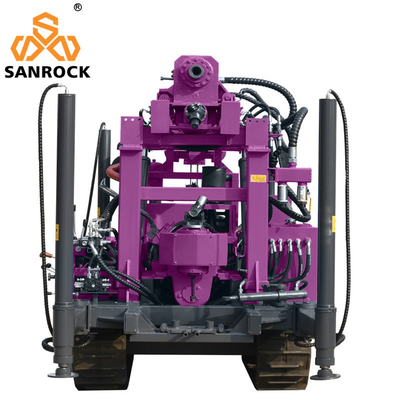

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 0

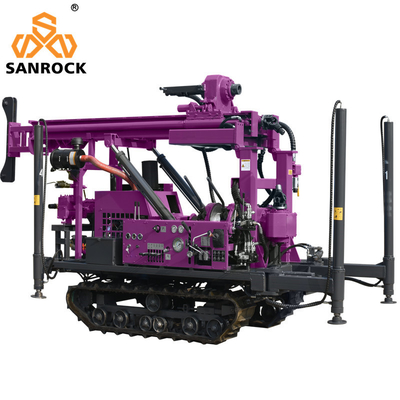

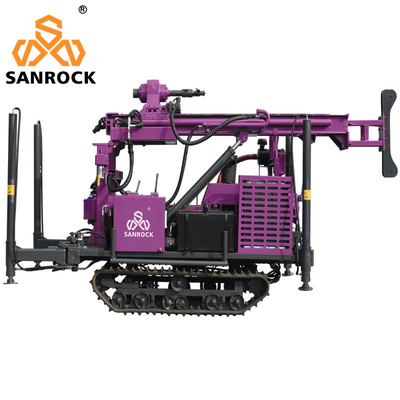

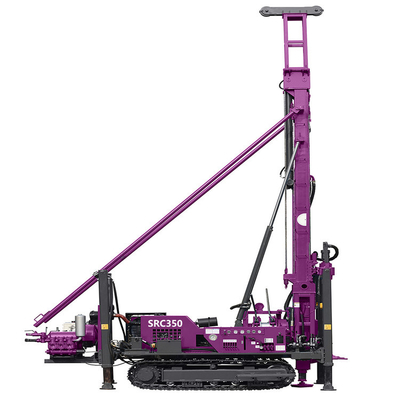

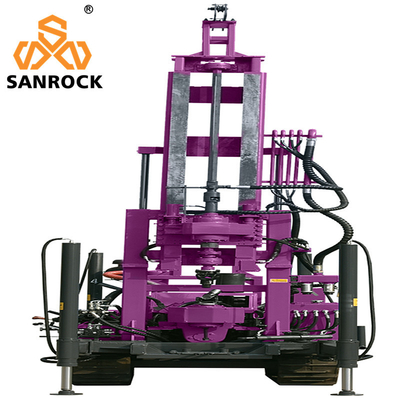

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 1Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 2Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 3





Feature:
1. Surface hydraulic core drilling rig has excellent performance, drilling depth of 350 meters. 2. The requirements of different geological conditions and different drilling hole diameter. 3. The standard configuration is NQ, HQ PQ diameter drilling tools which can meet the high pressure, high torque, high rpm drilling parameters to achieve efficient and fast hole formation. 4. High Efficiency With big torque, high power unit allocation and with reasonable structure design ,all these guarantee the drill rig’s high operation and performance efficiency. 5. With an elegant outline, compact structure, reliable performance and operation easily.

The machine can choose MT or AMT as transmission with high reliablity and long service life. Mechnical winch is kept, whose lifting speed is high so that it can deal with well accidents.



Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 4Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 5

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 6

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 7

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 8



Products Description

Model
SRC350M
Drilling capacity
Drilling depth for water well
280m(152mm~203mm)
Wireline coring NQ size
350m
Borehole (Drill bit) dia.
Ø75~Ø220mm
Drilling angle
90°
Drive head
Lifting capacity
100kN
Thrusting capacity
50KN
Rotary speed RPM
Turning right:33-1120r/min
Turning left:37-180 r/min
Max. Torque
9800N.m
Power Unit
Engine Model
YN27
Rated power/speed
42kW/ 2400r/min
Mechanical winch capacity
4.5Ton
Drill pipe
Drill pipe diameter
Ø50/ Ø60 / Ø76/ Ø89mm
NQ/ HQ /PQ
Drill pipe length
2000mm
Mud pump
BW160/ BW200/ BW250
Air compressor
Air consumption
16~35m³/min
Air pressure
10.5-24.6bar
Crawler chassis
Walking speed
0-2 km/h
Climbing angle
Max. 25-30°
Dimension
Transport
4600*1900*2540mm
Working
3800*2200*5700mm
Weight with rubber crawler
3500kg



Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 9

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 10

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 11

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 12

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 13

Hydraulic Core Drilling Machine Geological Exploration Borehole Diamond Core Drilling Rig 14
