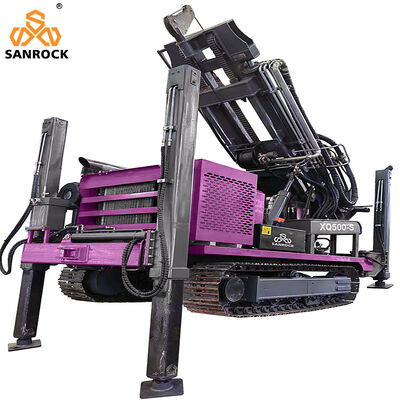

Portable Water Well Drilling Machine 500m Deep Full Hydraulic Water Well Drilling Rig

1 Set/Sets
MOQ
negotiable
Price
Portable Water Well Drilling Machine 500m Deep Full Hydraulic Water Well Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Water Well Drilling Rig Machine
Product Name: Water Well Drilling Rig
Type: Rotary Drilling Rig
Power Type: Diesel
Power(w): 118KW
Engine: Diesel Engine
Drilling Diameter: 140-350mm
Drilling Depth: 500m
Lifting Force: 25T
Usage: Water Well
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
After-sales Service Provided: Video Technical Support
Dimension(l*w*h): 4100*2000*2450 Mm
Weight: 8000KG
Warranty: 1 Year
Feature: High Drilling Efficiency,Hydraulic Controlling,Portable
High Light:

portable core drilling machine

,

core drilling equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: XQ500-S
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Small Trailer Core Portable Hydraulic Drilling Machine 130m 150m180m





Product Specification



Machine Parameter
Drilling depth 30--200m
Drill rod caliber 50   42mm
End hole caliber 75   46mm
Max. open hloe caliber 220mm
Drilling angle 90°~75°
Drill weight (No include power) 610kg
Unity machine dimensions 2.1×0.9×1.3m
Spindle
spindle speed 130, 300, 480, 730, 830, 1045r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 1600kg
Single line lifting speed 1.06, 0.67, 0.32m/s
Wirerope caliber 13mm
Wirerope cubic measure 35m
Hug floodgate caliber 254mm
Hug folldgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Power
Diesle engine S1105 18HP
Electric motor Y160M—4 15KW



Product Package

Portable Water Well Drilling Machine 500m Deep Full Hydraulic Water Well Drilling Rig 0
