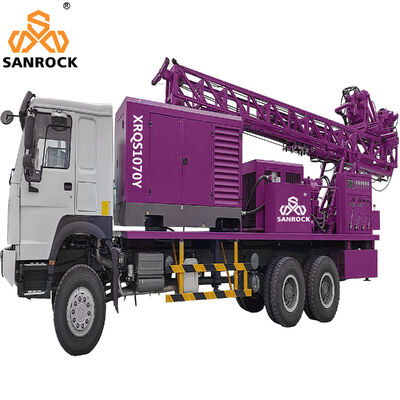

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig
Name: Truck Mounted Water Well Drilling Rig
Power Type: Diesel
Engine: CUMMINS
Power(w): 132KW/165KW
Drilling Depth: 600m
Drilling Diameter: 268mm, 350mm, 505mm
Rotate Speed: 0-90 Rpm
Rotary Torque: 8500-15500N.m
MUD PUMP: BW450/50 BW900/60 BW1200/80
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Usage: Water Well
Drill Rod Length: 2.0m 3.0m 6.0m
Drill Rod Diameter: 102/108/114mm
Type: Rotary Drilling Rig
Warranty: 1 Year
Dimension(l*w*h): 11500*2500*3800MM
Weight: 29000KG
High Light:

truck mounted drill rig

,

truck mounted rotary drilling rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRTM600
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor

SANROCK truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.

Our truck-mounted water well drilling rig is a customized product that customers can customize according to their actual needs.
Customers can choose from: chassis brand, boom length, mud pump selection, chassis installation air compressor and so on.
The vehicle-mounted water well drilling rig is divided into different models according to the drilling depth.

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 0Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 1Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 2

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 3

Features:
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 6X6 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a diesel engine, CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
7.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
8.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
9.Competitive in price, low cost of maintain.

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 4

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 5Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 6

Products Description

SANROCK TRUCK-MOUNTED DRILLING RIG SRTM600 COMPREHENSIVE OVERVIEW
DEPTH
600M
600M
600M
DRILLING DIAMETER
268MM
350MM
505MM
DIMENSIONS
7500*2500*3200MM
10500*2500*3400MM
11500*2500*3800MM
TOTAL WEIGHT
19000KG
25000KG
29000KG
TRUCK CHASSIS
BRAND
SINO TRUCK/ DONGFENG
DRILLING TOWER,SECOND FLOOR CHASSIS
DRILLING TOWER
RETRACTABLE
RETRACTABLE
FIXED PIPE RACK TYPE
DRILL TOWER LOAD
20T
35T
50T
DRILL TOWER HEIGHT
6M
8M
8M
PULL DOWN
7T
15T
15T
PULL UP
20T
30T
35T
DRILLING RIG POWER
RATED POWER
132KW
132KW
165KW
HOIST SINGLE ROPE PULL UP
1T
2T
3T
HYDRAULIC POWER HEAD
TORQUE
8500N.M
11500NM
15500N.M
REVOLUTIONS
0-90RPM
0-90RPM
0-90RPM
OTHER PARTS AND COMPONENTS
FOAM PUMP
B-36EX1
FLOW
42L/ MIN
PRESSURE
4MPA
REVOLUTIONS
660R/ MIN
MUD PUMP
BW450/50
BW900/60
BW1200/80
FLOW
450L/ MIN
900L/ MIN
1200L/ MIN
PRESSURE
5MPA
6MPA
8MPA


Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 7

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 8Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 9Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 10

Truck Mounted Water Well Rig Bore hole 600m Deep Water Well Drilling Rig With Compressor 11
