Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment

1 Set/Sets
MOQ
negotiable
Price
Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Product Name: Water Well Drilling Rig,300m Borehole Drilling Machine /water Well Drilling Rig For Sale
Power Type: Diesel
Power(w): 92KW
Drilling Depth: 300m
Drilling Diameter: 140-350mm
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Usage: Water Well
Engine: CUMMINS
Name: Water Well Drilling Rig Machine
Using Air Pressure: 1.7-3.5mpa
Lifting Force: 25T
Drill Rod Diameter: 76/89mm
Air Consumption: 18-36m3/min
Walking Speed: 2.5km/h
Weight: 6800 KG
Dimension(l*w*h): 4000*1850*2300mm
After-sales Service Provided: Overseas Third-party Support Available, Video Technical Support, Free Spare Parts, Online Support
High Light:

crawler drill machine

,

water well drilling equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: CE ISO 9001:2015
Model Number: SR300L-Pro
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment

Used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating,it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineerin.

Feature:

1.This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.

2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

3.Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

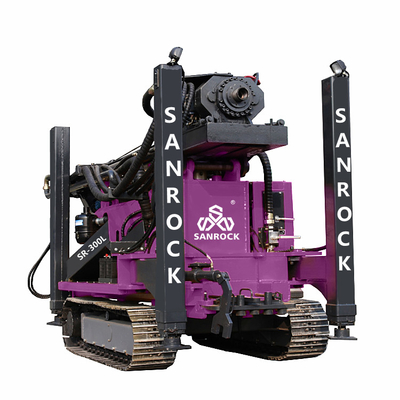

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 0

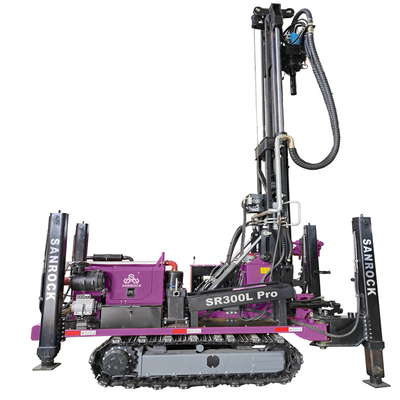

 Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 1

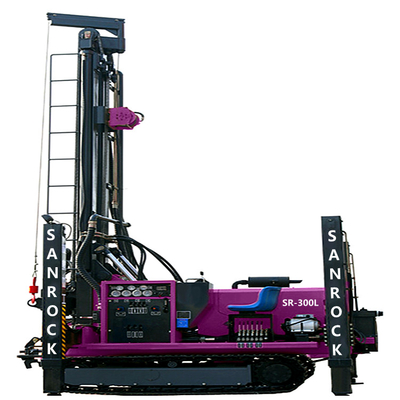

 Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 2

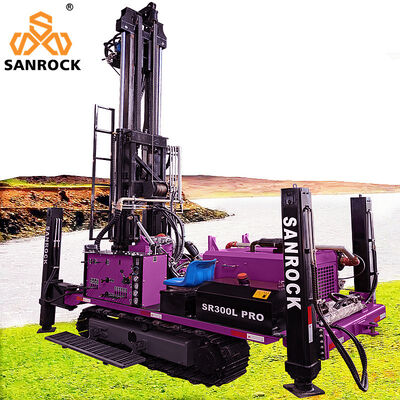

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 3

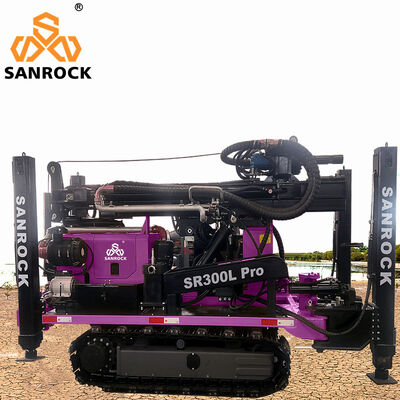

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 4

Products Description

Type
Rotary Drilling Rig
Engine
Cummins
Power Type
Diesel
Power
92KW
Using air pressure
1.7-3.5mpa
Key Selling Points
Competitive Price
Drilling Diameter
140-350mm
Drilling Depth
Max.300m
Feature
Hydraulic Controlling,Light Weight High Drilling Efficiency
Product name
Water Wells Drilling Rigs
Name
hydraulic water well drilling rig
Application
Water Wells Rock Drill Rig
Keyword
Water Drilliing Rig
Lifting force
25T
Drill rod diameter
76/89mm
Walking speed
2.5km/h
Swing torque
10000-12000N.m
Air consumption
18-36m³/min


Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 5

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 6

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 7

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 8



Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 9

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 10

Company Profile

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 11

Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 12



Water Well Drilling Rig Machine Rotary Borehole Hydraulic Crawler Well Water Drilling Equipment 13

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
