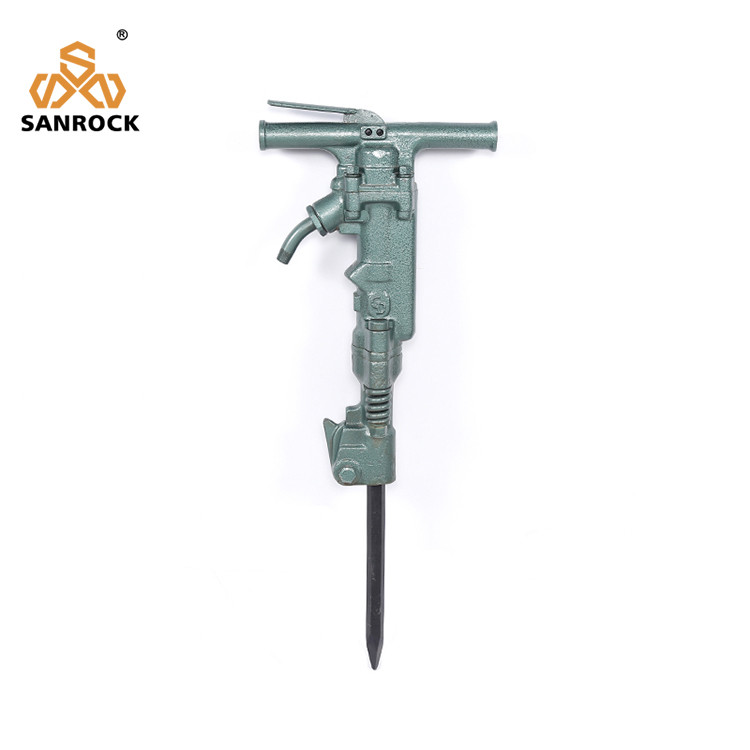

B47 Breaker
B47 Breaker adopts mature technology of American Chicago Pneumatic Corporction and advanced doible-hammber design. The hammber is driven by compressed air to toandfro and the cushioned hammber impacts the drilling tool.The bresker features portability,high impact frenqency and high working efficiency.
|
Model |
Piston Diameter mm |
Pistin Stroke mm |
Percussive Frequency b.p.m |
N.W. kf lb |
Length mm |
Air Consumption m3/min |
Air Tubelnner Diameter mm |
Bit Head Size mm |
Airinletsize PT |
|
|
B47 |
47.6 |
100 |
1400 |
21.5 |
47 |
550 |
1.6 |
19 |
25*105 |
3/4 |
