Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale

1 Set/Sets
MOQ
negotiable
Price
Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pile Driver Machine,Solar Pile Driver,Hydraulic Pile Driver
Application: Solar Photovoltaic Engineering Construction,Foundation Construction
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Model: SRP260
Power Type: Diesel
Engine Brand: Yu Chai
Power: 73.5kw
Lifting Force: 35kn
Rotary Torque: 6000n.M
Working Pressure: 1.0-2.4 MPa
Air Consumption: 14-35m3
Drilling Depth: 80m
Drill Diameter: 90-320mm
Feed Stroke: 4115mm
Method Of Feed: Motor Chain
Travelling Speed: 3km/h
Rotary Speed: 0-180r/min
Dimension(L*W*H): 6000X2270X3000mm
Weight: 6190 Kg
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRP260
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale

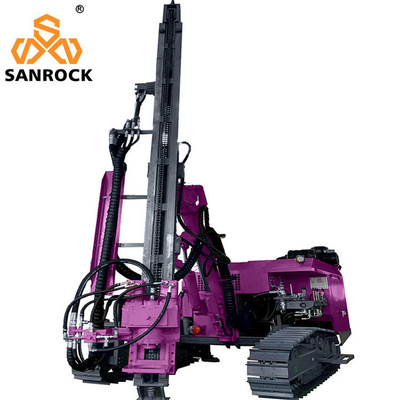

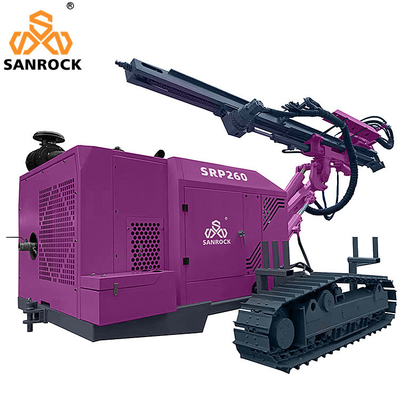

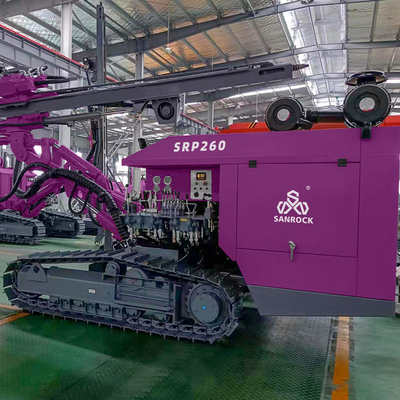

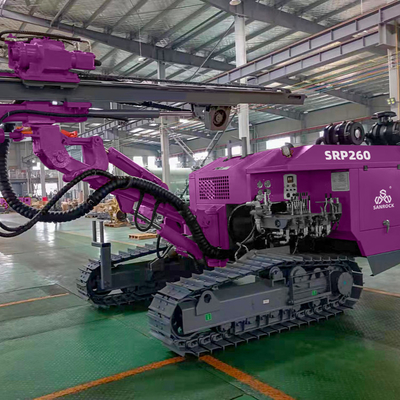

SRP260 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc.

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 0

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 1

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 2

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 3

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 4

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 5

Feature:

With the crawler chasis and the advanced hydralic hammer or drilling head, the pile driver have great adaptablity to all kinds of terrians and complicated conditions.using new type of hydraulic technology, convenient for hole transfer .

Products Description

Model
SRP260

Engine brand
Yu chai
Rated Power (kw)
73.5
Drilling diameter (mm)
90-320
Depth of economical drilling (m)
80
Drilling rod (mm)
ф76X3000
Working Pressure ( Mpa)
1.0~2.4
Air consumption (m3/min)
14~35
Max.rotary torque (N.m)
6000
Rotary speed (r/min)
0~180
Feed stroke (mm)
4115
Lifting force( kn)
35
Method of Feed
motor chain
Travelling speed( km/h)
0~3
Climbing capacity(°)
30
Ground clearance (mm)
430
Weight(kg)
6190
Dimensions (LxWxH)mm
6000X2270X3000
Drilling hardness
f=6~20
L/Volume of diesel oil tank
100


Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 6Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 7

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 8Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 9Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 10Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 11

Company Profile

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 12

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 13

Hydraulic Screw Pile Driver Solar Piling Machinery Vibratory Pile Driver Machine For Sale 14

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.




3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.




4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
