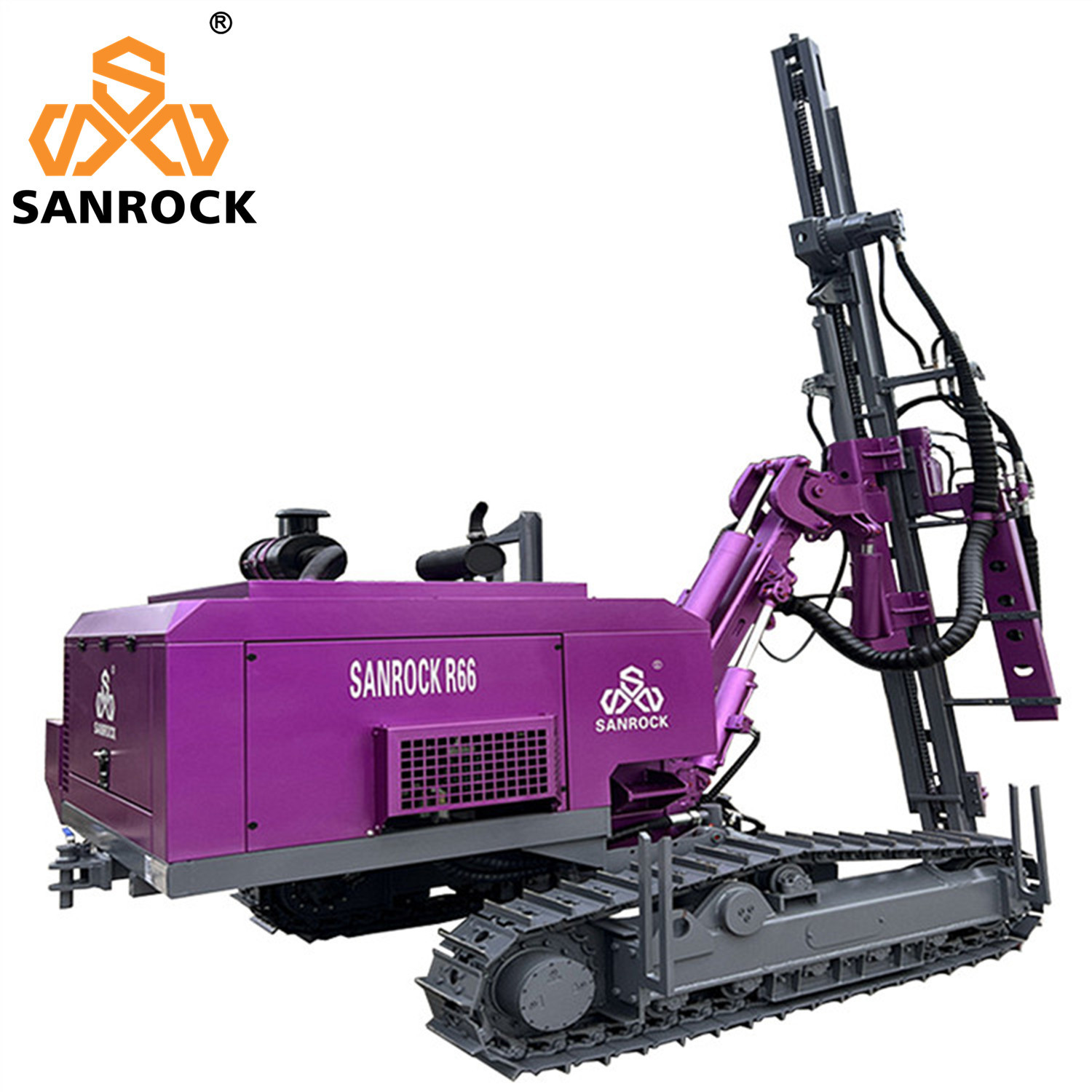

Hydraulic Rotary Blast Hole DTH Drilling Machine 73.5kw Mining DTH Drilling Rig

1
MOQ
negotiable
Price
Hydraulic Rotary Blast Hole DTH Drilling Machine 73.5kw Mining DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Electric
Power(w): 73.5KW
Product Name: Dth Drilling Rig
Name: Crawler DTH Drilling Rig Machine
Application: Mining,quarry,drilling Blast Hole,mining And Construction
Lifting Force: 35KN
Rotate Speed: 0-180r/min
Air Consumption: 14-35m3/min
Working Pressure: 1-2.4Mpa
Rotational Torque: 5000N.M
Drilling Depth: 50m
Drilling Diameter: 90-200mm
Core Components: Motor, Pump, PLC, Bearing, Engine
Dimension(L*W*H): 6000*2380*2600mm
Weight: 6500 KG
High Light:

180r/min Hydraulic Drilling Rig

,

DTH Mining Drilling Rig

,

Blast Hole DTH Rig Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: IOS9001 CCC
Model Number: R66
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000Set/Sets per Month
Product Description

DTH Drilling Machine hydraulic rotary blasthole 73.5kw mining DTH drilling rig for sale

1. This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.

2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127mm.

4.All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.

5.Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Hydraulic Rotary Blast Hole DTH Drilling Machine 73.5kw Mining DTH Drilling Rig 0

Hydraulic Rotary Blast Hole DTH Drilling Machine 73.5kw Mining DTH Drilling Rig 1
Hydraulic Rotary Blast Hole DTH Drilling Machine 73.5kw Mining DTH Drilling Rig 2Hydraulic Rotary Blast Hole DTH Drilling Machine 73.5kw Mining DTH Drilling Rig 3

Hydraulic Rotary Blast Hole DTH Drilling Machine 73.5kw Mining DTH Drilling Rig 4




Products Description

Product name: DTH drilling rig
Name:R66
Brand Name:Sanrock
Method of Feed:Cylinder+Chain
Rotary Torque(Max.):5000N.M
Lifting Force:35KN
Rotary Torque(Max.):2500N.m
Power:73.5KW
Drilling Depth:50M
Rotary Speed:0-180r/min
Drilling Diameter:90-200mm
Working Pressure(bar):1-2.4Mpa
Air Consumption:14-35m3/min
Travelling Speed:3km/h
Dimension(L*W*H):6000*2380*2600mm
Weight:6500 KG
Climbing Angles:30°
DTH Hammer:4"/5"/ 6"

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.
