Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price

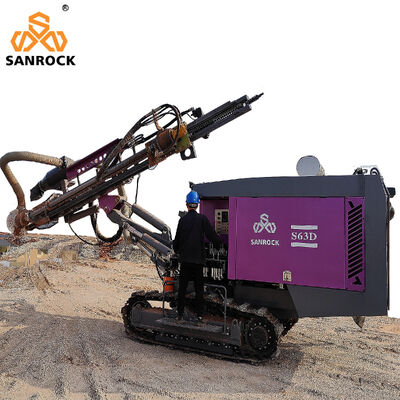

Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Diesel
Engine: Yuchai
Power: 206kw
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Feature: High Drilling Efficiency,Hydraulic Controlling
Product Name: DTH Drilling Rig
Drilling Depth: Max.30m
Drilling Diameter: 115-152mm
Method Of Dust Collecting: 14 Core Dry Type
Volune Of Diesel Oil Tank 280 LVolune Of Diesel Oil Tank: 280 L
Air Consumption: 20m3/min
Rotary Torque: 3300N.m
Rotary Speed: 0-120r/min
Lifting Force: 25KN
Working Pressure: 20 Bar
Applicable Industries: Construction Works , Energy & Mining
Maximun Push-pull Force: 20kn
Travelling Speed: 1.5~4 Km/h
Drilling Rod: φ 76mmX3000/2000mm
Dimension(L*W*H):: 8800*2250*2600mm
Weight: 10000 KG
High Light:

20kn Integrated Drilling Equipment

,

Mining DTH Drilling Rigs

,

Integrated Mining Drilling Machine 206kw

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S63D
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Portable mining DTH drilling machine hydraulic rotary borehole DTH drilling rig machinery

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.

High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost. Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.

Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 0

Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 1

Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 2
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 3
Product Description
Type
Rotary Drilling Rig
Power Type
Diesel
Engine
Yuchai 206kw
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
8800*2250*2600mm
Weight
10000KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
115-152mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
20bar
Air end
Two stage compression
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~4 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
6+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Air consumption
20 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 4
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 5
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 6
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 7
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 8
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 9

Company Information
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 10
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 11
Mining Integrated Drilling Equipment Hydraulic Rotary Borehole Crawler DTH Drilling Rig 12

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
