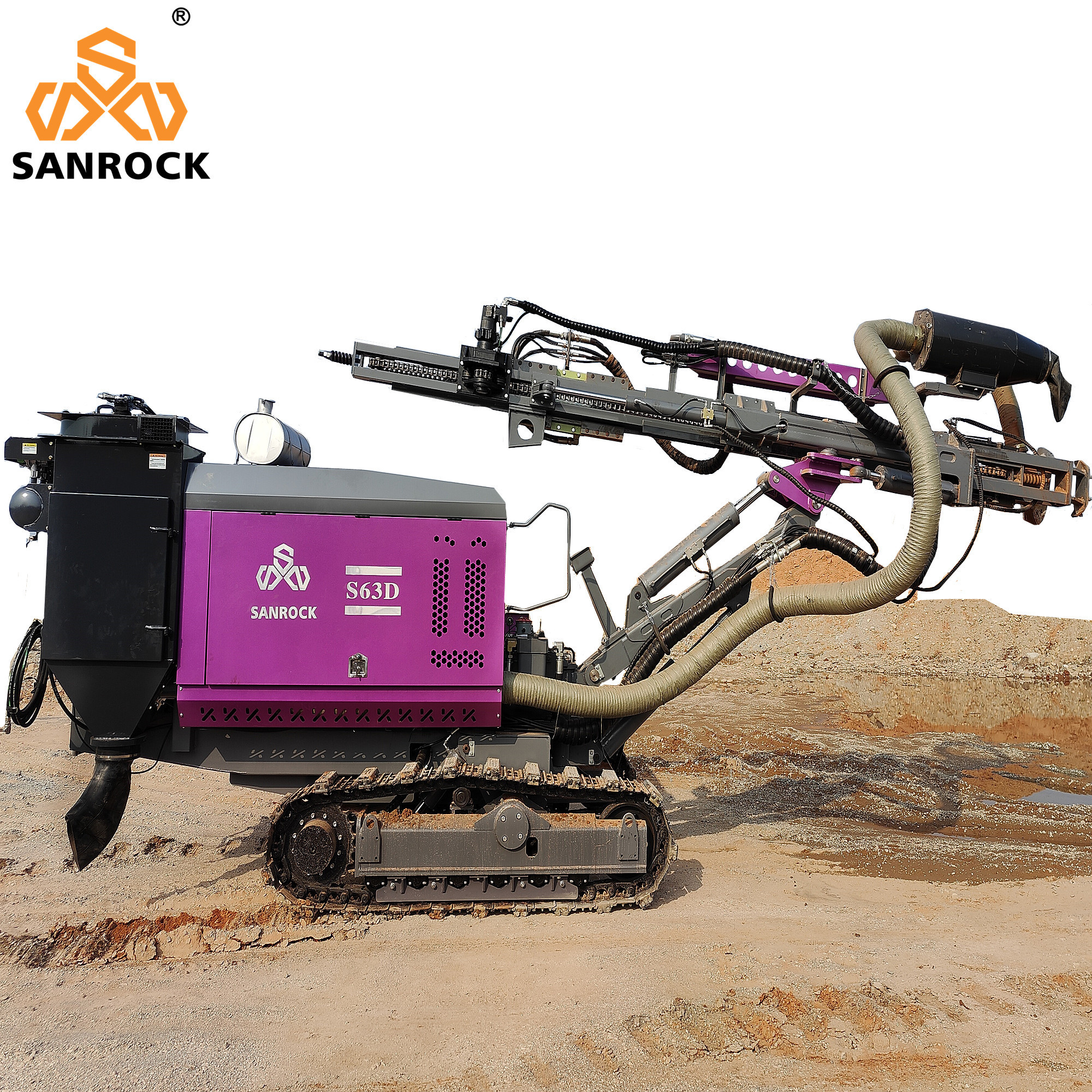

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Product Name: DTH Drilling Rig
Drilling Diameter: 115-152mm
Drilling Depth: Max.30m
Engine: Yuchai
Name: Hydraulic Drilling Rig
Applicable Industries: Construction Works , Energy & Mining
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Feature: High Drilling Efficiency,Hydraulic Controlling
Power: 206KW
Rotary Speed: 0-120r/min
Air Consumption: 20m3/min
Rotary Torque: 3300N.m
Lifting Force: 25KN
Working Pressure: 20 Bar
Method Of Dust Collecting: 14 Core Dry Type
Maximun Push-pull Force: 20kn
Travelling Speed: 1.5~4 Km/h
Drilling Rod: φ 76mmX3000/2000mm
Drilling Hardness: F=6~20
Dimension(L*W*H): 8800*2250*2600mm
Weight: 10000 KG
High Light:

Mining Rotary DTH Drilling Rig

,

Crawler Integrated Drilling Equipment

,

Hydraulic Integrated Drilling Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S63D
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Crawler DTH drilling rig 206KW diesel hydraulic mining rotary DTH drilling rig for sale

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.

High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost.

Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 0Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 1Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 2

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 3

Product Description



Type
Rotary Drilling Rig
Power Type
Diesel
Engine
Yuchai 206kw
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
8800*2250*2600mm
Weight
10000KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
115-152mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
20bar
Air end
Two stage compression
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~4 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
6+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Air consumption
20 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 4

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 5

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 6

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 7

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 8

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 9

Crawler Integrated Drilling Equipment 206KW Diesel Hydraulic Mining Rotary DTH Drilling Rig 10
