Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price

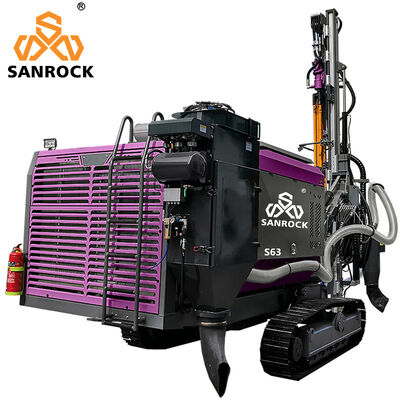

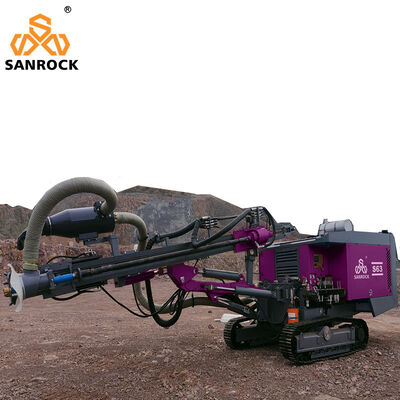

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Diesel
Power: 194KW
Drilling Depth: Max.30m
Drilling Diameter: 90-138mm
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Feature: High Drilling Efficiency,Hydraulic Controlling
Working Pressure: 1.8Mpa
Rotary Speed: 0-120r/min
Lifting Force: 25 Kn
Air Consumption: 16m3/min
Rotary Torque: 3300N.m
Engine: CUMMINS
Product Name: DTH Drilling Rig Machine
Name: Integrated Drilling Equipment
Compressor Pressure: PSI 17bar
Maximun Push-pull Force: 20kn
Travelling Speed: 1.5~3 Km/h
Dimension(L*W*H): 8900*2250*2650MM
Weight: 11000KG
High Light:

DTH Drilling Rig 30m Depth

,

Integrated Crawler DTH Drilling Rig

,

Hydraulic Mining Drilling Machine 194KW

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S63H
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic DTH Drilling Rig

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,
single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 0

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 1

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 2

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 3

Product Description

ype
Rotary Drilling Rig
Power Type
Diesel
Engine
Cummins 194KW(Ⅲ)
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
8900*2250*2650MM
Weight
11000KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
90-138mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
17bar
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~3 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
5+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Working Pressure
1.8 Mpa
Air consumption
16 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min






Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 4

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 5

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 6

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 7



Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 8

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 9

Company Information

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 10

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 11

Crawler DTH Drilling Rig Machinery 30m Depth Integrated Mining Hydraulic Drilling Rig 12

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
