Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Diesel
Power: 194kw
Engine: Cummins
Product Name: Dth Drilling Rig
Name: Integrated Drilling Equipment
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Drilling Diameter: 90-138mm
Drilling Depth: Max.30m
Compressor Pressure PSI: 17bar
Maximun Push-pull Force: 20kn
Lifting Force: 25 Kn
Travelling Speed: 1.5~3 Km/h
Working Pressure: 1.8 Mpa
Air Consumption: 16 M3/min
Rotary Torque (Max.): 3300 N. M
Rotary Speed: 0-120 R/min
Dimension(L*W*H): 8900*2250*2650MM
Weight: 11000KG
Feature: High Drilling Efficiency,Hydraulic Controlling
Highlight:

Rock Integrated Drilling Equipment

,

Bore Hole DTH Drilling Rig

,

Hydraulic DTH Integrated Drilling Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S63H
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Integrated DTH drilling rig equipment hydraulic bore hole mining rotary DTH drilling rig

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

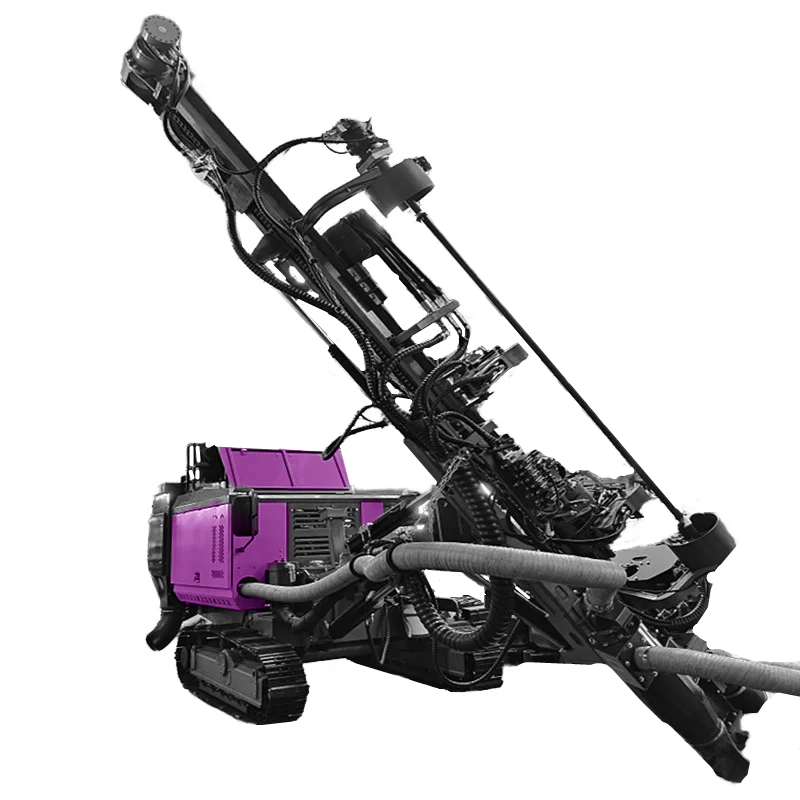

Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 0



Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 1

Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 2

Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 3

Product Description

Type
Rotary Drilling Rig
Power Type
Diesel
Engine
Cummins 194KW(Ⅲ)
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
8900*2250*2650MM
Weight
11000KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
90-138mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
17bar
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~3 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
5+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Working Pressure
1.8 Mpa
Air consumption
16 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min


Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 4

Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 5Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 6

Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 7

Rock Integrated Drilling Equipment Hydraulic Bore Hole Mining Rotary DTH Drilling Rig 8
