Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Namer: Integrated Drilling Equipment
Type: Rotary Drilling Rig
Engine: Cummins
Power Type: Diesel
Power: 194kw
Drilling Depth: Max.30m
Drilling Diameter: 90-138mm
Feature: High Drilling Efficiency,Hydraulic Controlling
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling
Compressor Pressure PSI: 17bar
Maximun Push-pull Force: 20kn
Lifting Force: 25KN
Rotary Speed: 0-120r/min
Rotary Torque: 3300N.m
Travelling Speed: 1.5~3 Km/h
Working Pressure: 1.8 Mpa
Air Consumption: 16 M3/min
Dimension(L*W*H): 8900*2250*2650MM
Weight: 11000KG
High Light:

Integrated Hydraulic DTH Drilling Rig Equipment

,

30m Depth Integrated Drilling Equipment

,

Bore Hole Integrated Drilling Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S63H
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Mining DTH drilling rigs bore hole 30m depth Integrated Hydraulic DTH drilling rig equipment

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

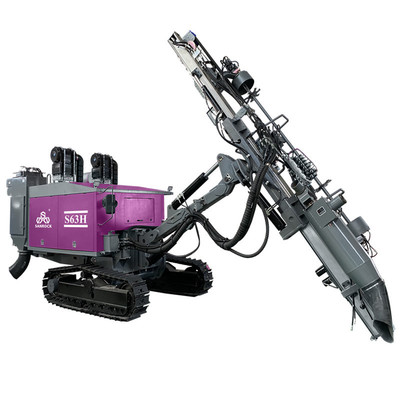

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 0

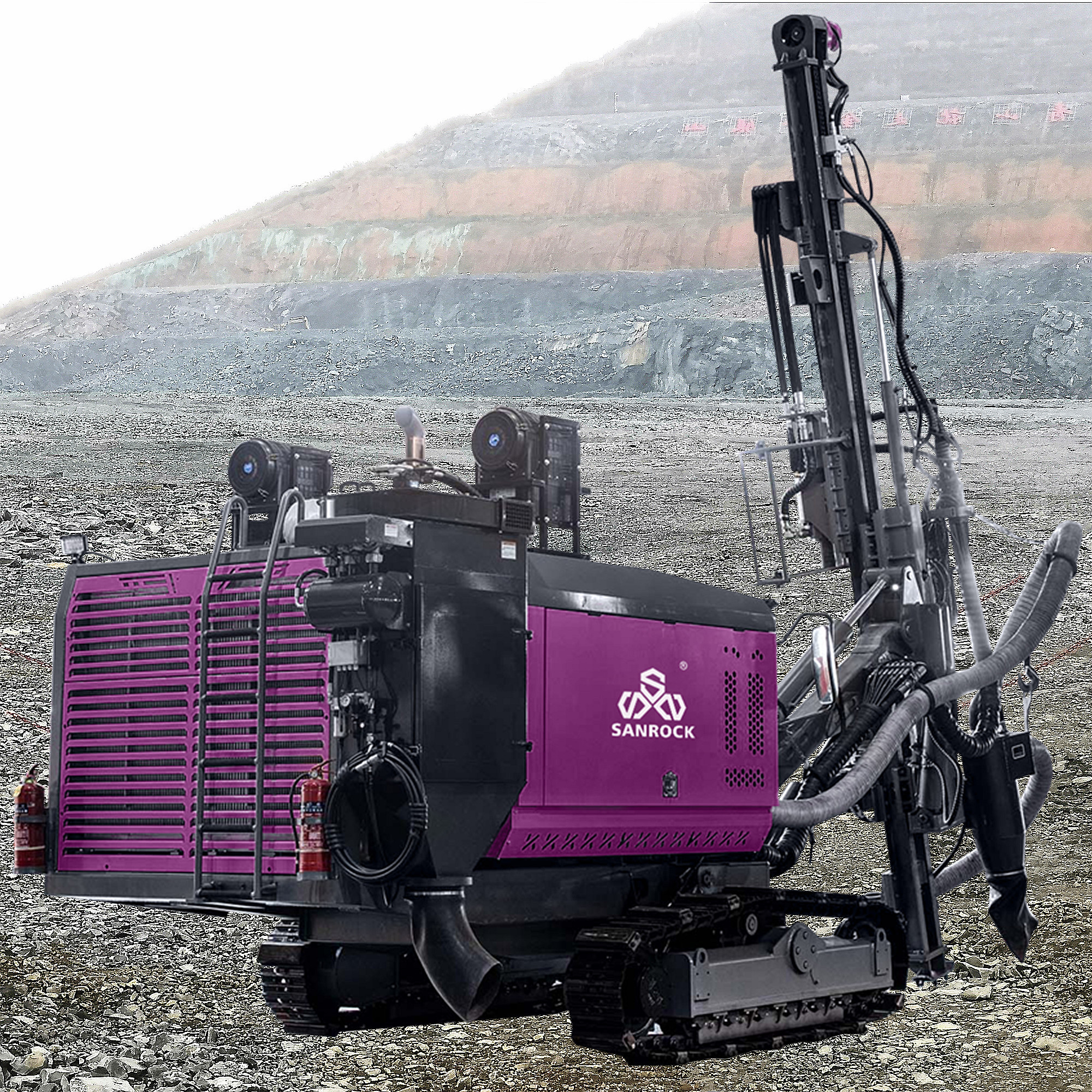

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 1

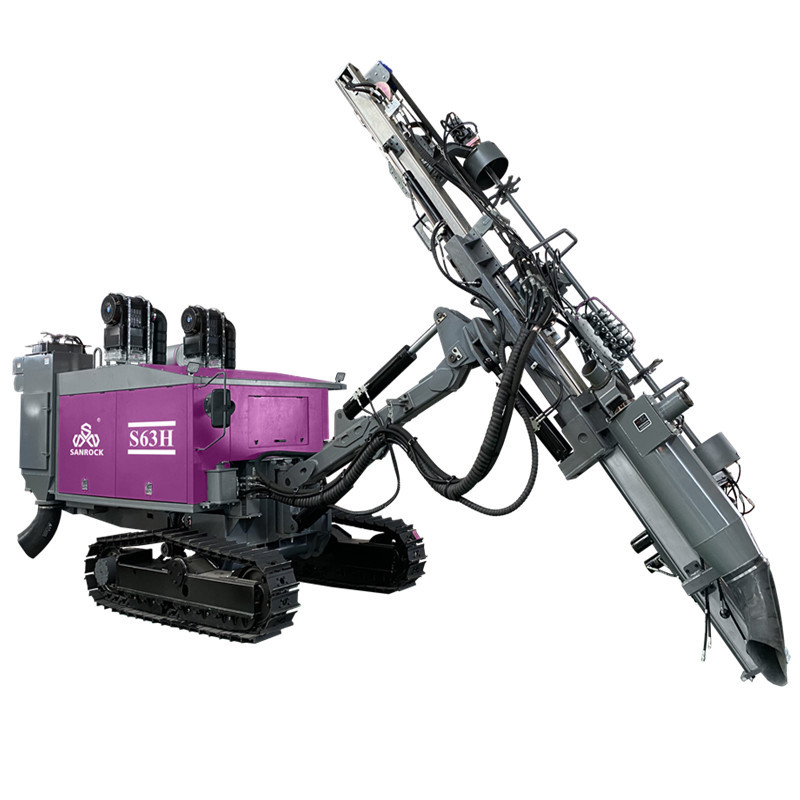

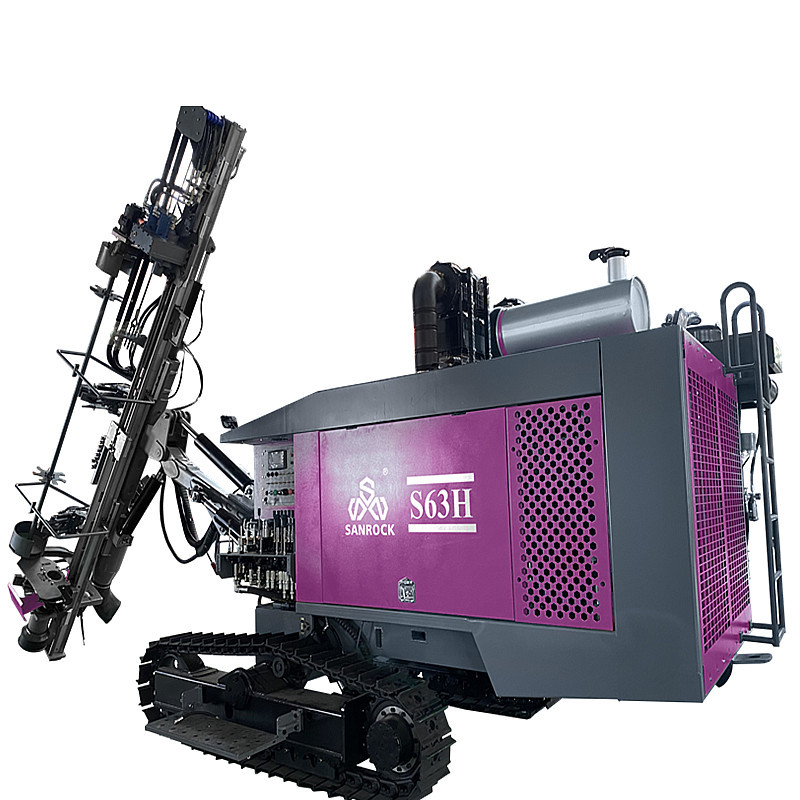

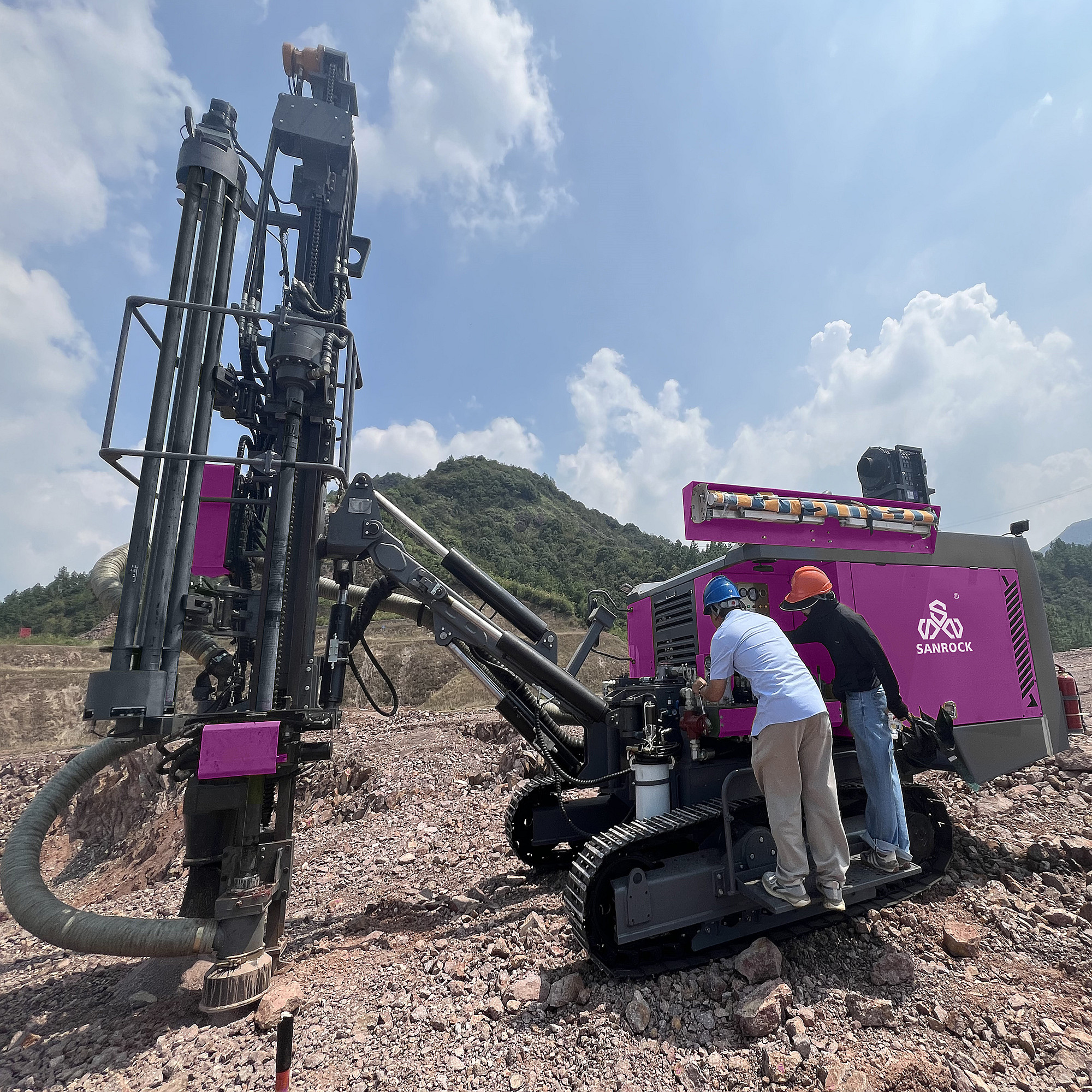

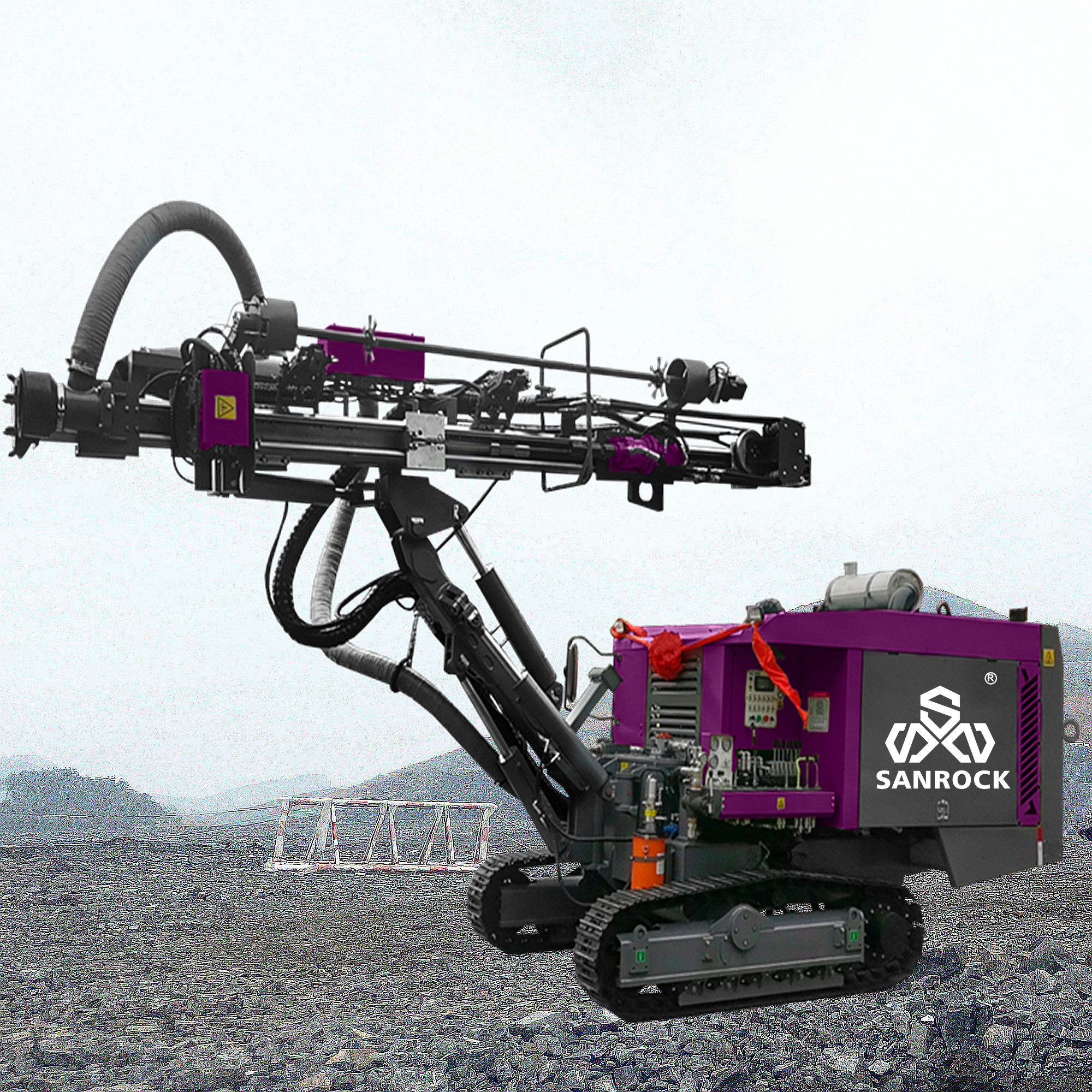

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 2Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 3Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 4

Product Description

Type
Rotary Drilling Rig
Power Type
Diesel
Engine
Cummins 194KW(Ⅲ)
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
8900*2250*2650MM
Weight
11000KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
90-138mm
Drilling Depth
Max.30m
Drilling hardness
f=6~20
Volune of diesel oil tank
280 L
Method of dust collecting
14 Core Dry type
Compressor F.A.D
540 CFM
Compressor pressure PSI
17bar
Feed stroke
3690mm
Maximun push-pull force
20kn
Compensation length
900mm
Lifting force
25 kn
Method of Feed
motor+roller chain
Travelling speed
1.5~3 km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
5+1, φ 76mmX3000/2000mm
DTH hammer
3"/4"/5''
Working Pressure
1.8 Mpa
Air consumption
16 m3/min
Rotary torque (Max.)
3300 N. m
Rotary speed
0-120 r/min


Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 5Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 6

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 7

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 8

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 9

Company Information

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 10

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 11

Bore Hole 30m Depth Integrated Drilling Equipment Mining Hydraulic DTH Drilling Rig 12

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
