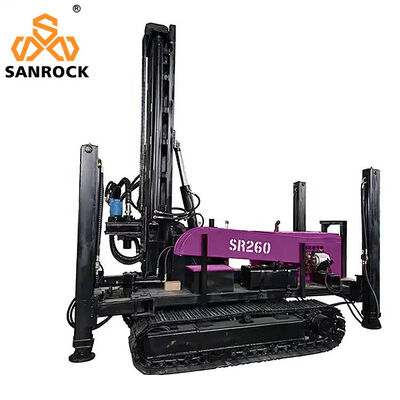

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment

1Set/Sets per Month
MOQ
negotiable
Price
Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig
Name: Water Drilling Rig Machine
Power(w): 73KW
Engine: Yunnei
Power Type: Diesel
Drilling Depth: 260m
Drilling Diameter: 130-305mm
Working Pressure: 1.7-3.0Mpa
Air Consumption: 17-30cubic Meter/min
Climbing Ability Max: 30°
Drill Rod Diameter: 76mm/89mm
Drill Rod Length: 1.5m, 2.0m, 3.0m
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Type: Rotary Drilling Rig
Warranty: 1 Year
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Dimension(l*w*h): 3900*1850*2350mm
Weight: 6000 KG
High Light:

Crawler Borehole Water Well Drilling Rig

,

Portable Water Well Drilling Rig 73KW

,

Hydraulic Borehole Water Well Drilling Equipment

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SR260K
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment

1.This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.

2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

3.Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

4.The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 0Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 1



Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 2

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 3

Extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.

Products Description

Type
Rotary Drilling Rig
Power Type
Diesel
Usage
Water Well
Dimension(L*W*H)
3900*1850*2350mm
Weight
6000KG
Key Selling Points
Competitive Price
Drilling Diameter
130-305mm
Drilling Depth
Max.260
Product name
Water Wells Drilling Rigs
Name
Water Drilling Rig Machine
Application
drill water well, agrecultural irrigation well


Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 4Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 5

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 6

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 7

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 8

Company Profile

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 9

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 10

Portable Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Equipment 11

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
