70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig
Name: Water Well Drilling Rig Machine
Power Type: Diesel
Power(w): 70KW
Engine: Yuchai
Drilling Diameter: 140-305mm
Drilling Depth: 260m
Rotating Torque: 4000-5300N.m
Air Consumption: 17-31m3/min
Working Pressure: 1.7-3.0Mpa
Drill Rod Diameter: 76mm 89mm
Drill Rod Length: 1.5m, 2.0m, 3.0m
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Dimension(l*w*h): 4000×1850×2300mm
Weight: 6500kg
Usage: Water Well
Warranty: 1 Year
Type: Rotary Drilling Rig
Walking Speed: 2.5km/h
High Light:

70KW Crawler Water Well Drilling Rig

,

Borehole Deep Drilling Rig Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SR260
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Rig Machine

Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.The rig can be drill in different layers. Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat. etc, and can also be used for coal-mine gas exploitation salvage work.The top mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

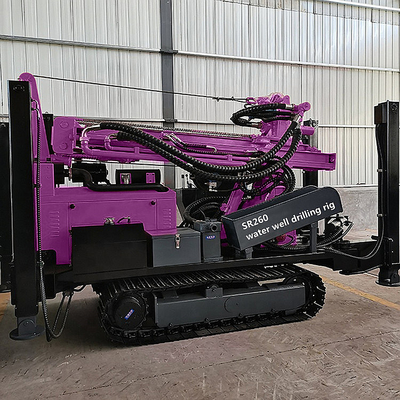

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 0

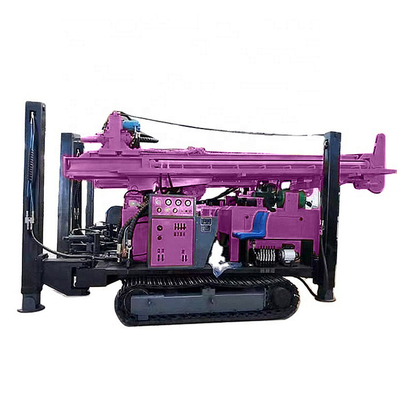

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 1

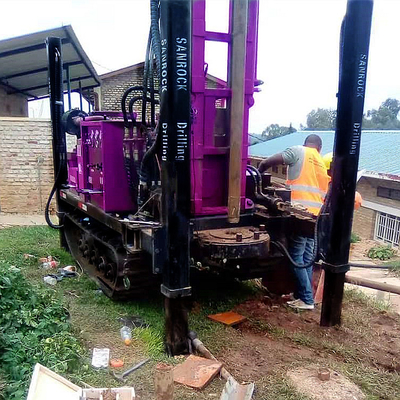

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 2

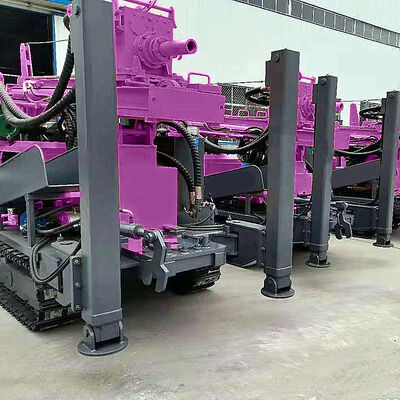

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 3

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 4

Products Description

Product Name: hydraulic water well drilling rig
Brand Name:Sanrock
Name:SR260
Drilling depth:260m
The hole diameter:140-305mm
Using air pressure:1.7-3.0MPA
Air consumption:17-31m3/min
Swing torque:4000-5300N.m
The penetration efficiency:10-35m/h
Swing speed:45-70rpm
Equipped capacitor:70KW
Walking speed:2.5km/h
Drill pipe diameter:76mm / 89mm
Drill pipe length:1.5m /2.0m /3.0m
Dimension:4000×1850×2300mm
The weight:6500KG


1. The chassis of the drilling rig adopts a professional walking motor with a reduction box, which has a longer life.

2. The gearbox is cast in one piece, with dual motors providing stronger power, larger torque, more durable, and low maintenance costs.

3. The use of professional excavator chassis, strong and durable, large load-bearing, wide chain plate, little damage to hard roads.

4. Each hydraulic oil pipe is covered with a thick protective jacket to make the service life of the oil pipe longer.

5.Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 5

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 6

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 7

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 8

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 9

Company Profile

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 10

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 11

70KW Crawler Water Well Drilling Rig Hydraulic Borehole Deep Water Well Drilling Machine 12

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
