Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment

1Set/Sets per Month
MOQ
negotiable
Price
Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Water Well Drilling Rig Machine
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Product Name: Water Well Drilling Rig
Engine: Diesel Power
Power Type: Diesel
Power(w): 85KW
Drilling Depth: 300m
Drilling Diameter: 140-325mm
Working Pressure: 1.7-3.0Mpa
Swing Torque: 5700-7500N.m
Air Consumption: 17-36m3/min
Drill Pipe Length: 1.5m, 2.0m, 3.0m
Dimension(l*w*h): 4100×2000×2500mm
Usage: Water Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Type: Rotary Drilling Rig
Warranty: 1 Year
Drill Pipe Diameter: 76mm 89mm 102mm
Weight: 7200 KG
High Light:

Hydraulic Water Drilling Rigs 85KW

,

Borehole Crawler Water Well Drilling Rig

,

Crawler Water Drilling Rigs

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SR300
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

SANROCK Water Drilling Rigs Full Hydraulic Crawler Water Borehole Drilling Equipment

1.This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.

2.Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.

3.This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.

4.Two gears rotation and feeding speed makes it work in soil and rock layers.

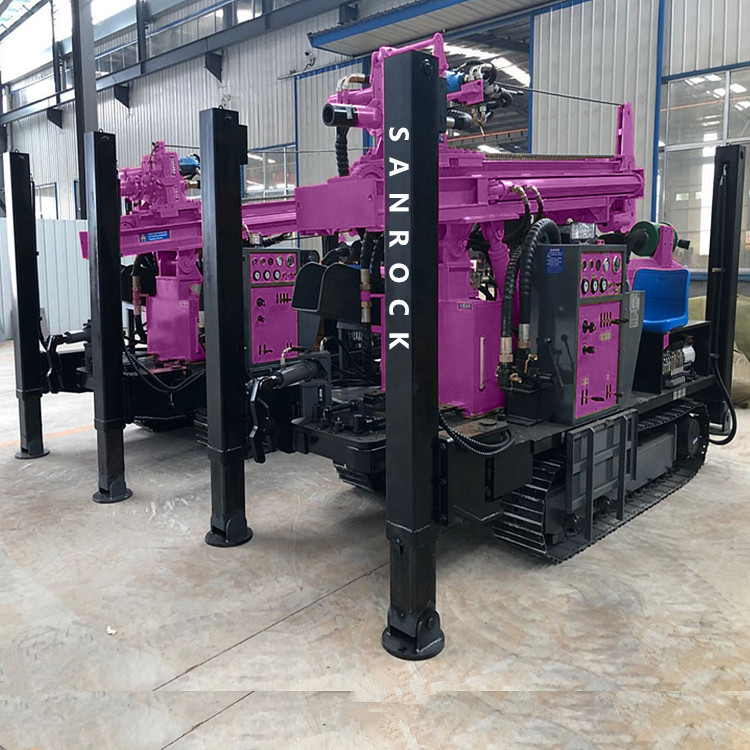

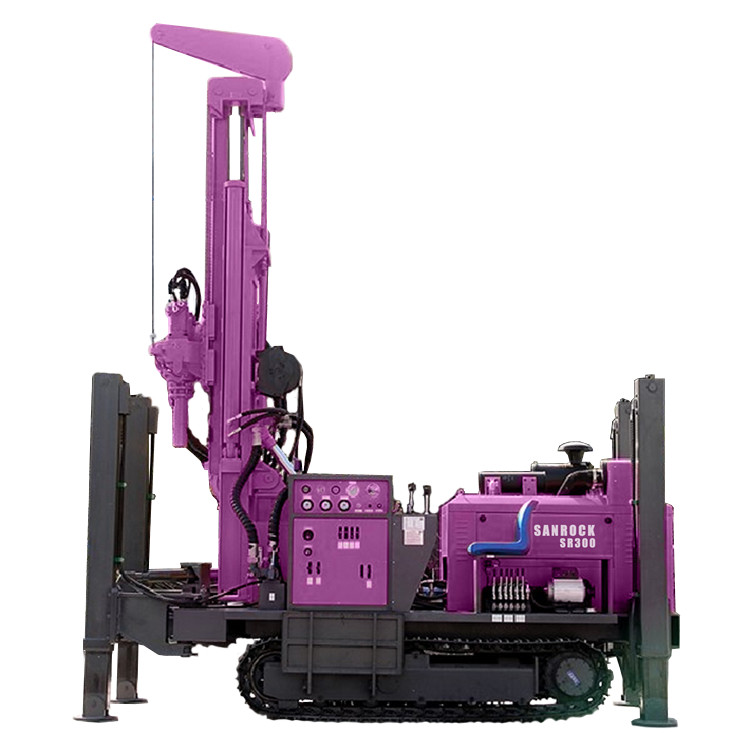

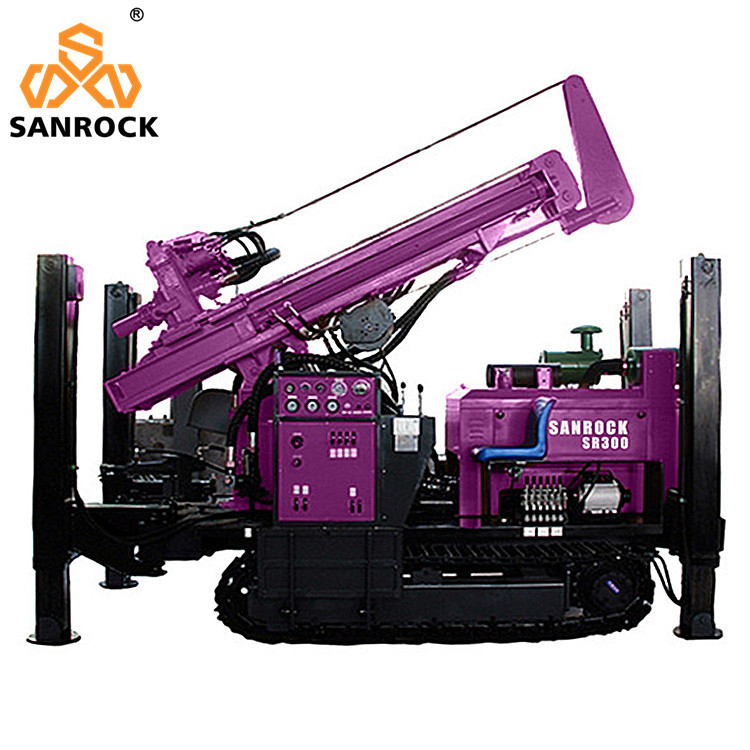

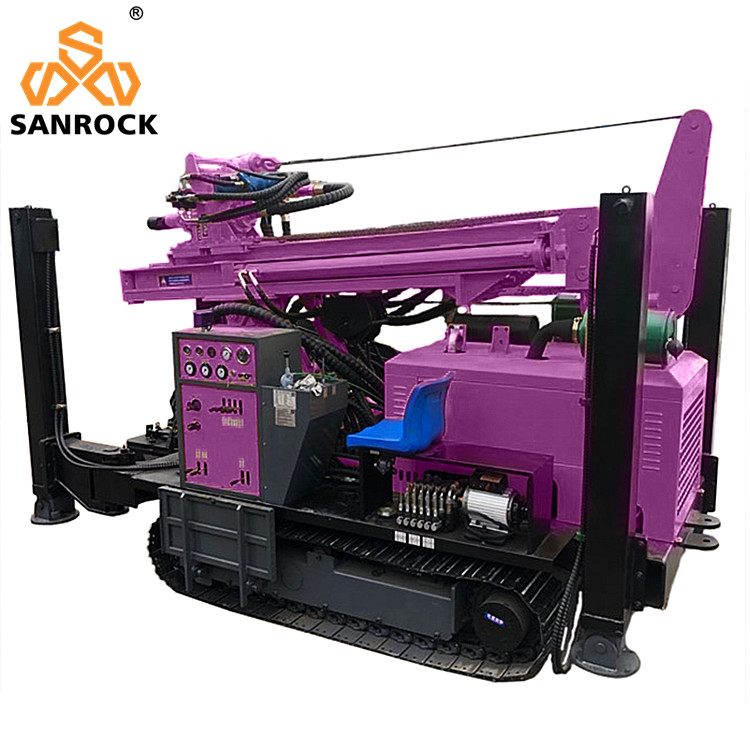

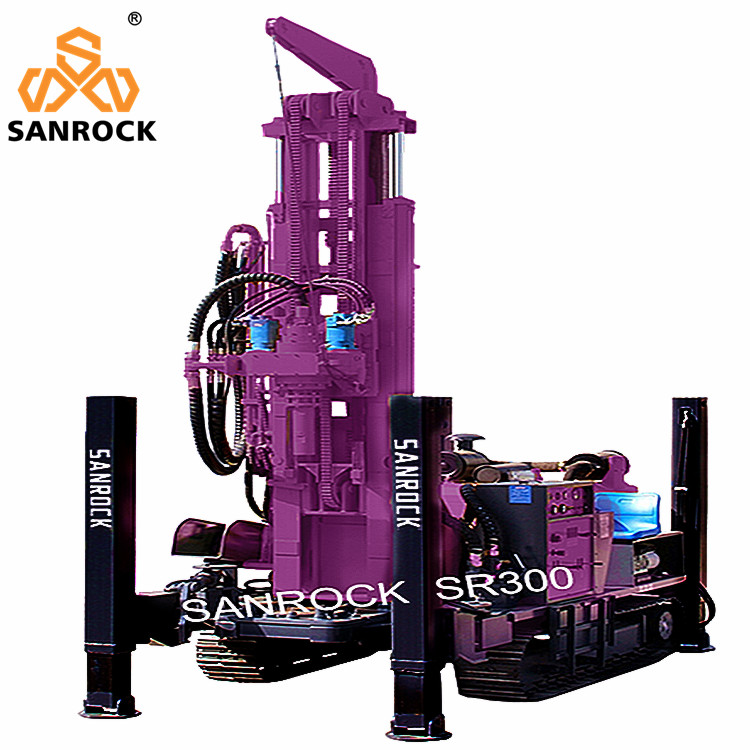

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 0

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 1Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 2

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 3

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 4Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 5

SR300 water well drilling rig it is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.

Products Description

Product name: water well drilling rig
Application:agrecultural irrigation well, geothermal well,Water Wells Rock Drill Rig
Name:Water Drilling Rig Machine
The hole diameter:140-325mm
Working Pressure:1.7-3.0Mpa
Swing torque:5700-7500N.m
Feature:High Efficiency,Hydraulic Controlling
Air consumption:17-36m3/min
Climbing angles:30Max
Equipped capacitor:85KW
The penetration efficiency:15-35m/h
Drilling depth:300m
Drill pipe length:1.5m /2.0m /3.0m
Drill pipe diameter:76mm /89 mm/102mm
Dimension:4100×2000×2500mm
The weight:7200KG




Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 6

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 7

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 8Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 9Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 10

Company Profile

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 11

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 12

Crawler Water Drilling Rigs Full Hydraulic Water Borehole Drilling Equipment 13

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
