Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m

1Set/Sets per Month
MOQ
negotiable
Price
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Truck Mounted Water Well Drilling Rig
Product Name: Water Well Drilling Rig
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Engine: CUMMINS
Power Type: Diesel
Power(w): 269KW
Drilling Depth: 1000m 1200m 1500m
Drilling Diameter: 660mm
Lifting Force: 60T
Rotate Speed: 2100r/min
Type: Rotary Drilling Rig
Drilling Angle: 90 Degrees
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
After-sales Service Provided: Video Technical Support
Warranty: 1 Year
Usage: Water Well
Dimension(l*w*h): 15230*2790*4345mm
Weight: 45000 KG
High Light:

Borehole Water Well Drilling Rig Machine

,

Borehole Deep Water Well Drill Rig

,

1000m Truck Mounted Borehole Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRTM1000
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

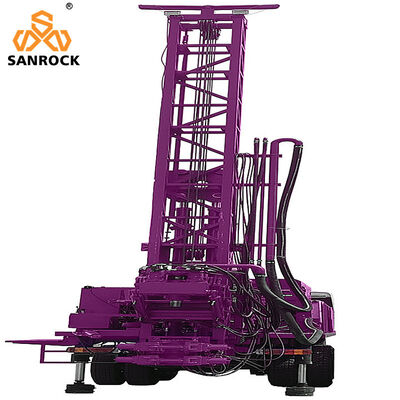

Truck Mounted Water Well Drilling Rig Machine Borehole 1000m Deep Water Well Drilling Rig
SRTM1000 Multi-functional truck mounted water well drilling rig is a efficient, full hydraulic water well drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture,
national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 0Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 1Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 2


Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 3

Feature:
1.SRTM1000-1500 Truck mounted water well drilling rig .this rig is a rotary drilling rig with directional circulation, which is equipped with BW1200/7 mud pump.It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
2. The power of drilling rig comes from the Diesel engine, the power is 269kw, the brand is Cummins; the rig sets up distribute implement and hydraulic system. The rig has three motors,and the force were sent to the transmission system, mud pump and hydraulic system.
3. SRTM1000 trailer mounted drilling rig used K-type two paragraph telescopic drilling tower, the tower is lifted up by hydraulic cylinder. It is installed the lights on top, middle and bottom of the tower, in order to works at night.The tower exxective height is 16.5m, the bearing capacity not less than 60T.
4. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.

Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 4Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 5

Products Description

Product name Truck Mounted water well drilling rig
Power 269KW
Engine CUMMINS
Power Type Diesel
Max Lifting Force 60T
Maximum torque of turntable 25kN·m
Drill Pipe Length 4.5/6m
Drill Pipe diameter 89mm ,114mm ,127mm
Drilling diameter 660 mm
Drilling depth 1000m 1200m 1500m
Rated speed 2100r/min
Rotary Torque 32300 N.m
Winding speed  0.84-3.3m/s
Rotary speed  39-153r/min
The height of drilling tower 15m
The max. torque of turntable 22kn·m
The speed of turntable 153,89,55,39rpm
Drilling Angle  90°
Dimension(L*W*H) 15230*2790*4345mm
Weight 45000 kg

Our truck-mounted water well drilling rig is a customized product that customers can customize according to their actual needs.
Customers can choose from: chassis brand, boom length, mud pump selection, chassis installation air compressor and so on.
The vehicle-mounted water well drilling rig is divided into different models according to the drilling depth.


Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 6Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 7

Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 8
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 9
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 10
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 11
Company Profile
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 12
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 13
Truck Mounted Water Well Drilling Rig Machine Borehole Deep Water Well Drilling Rig 1000m 14
1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
