Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine

1Set/Sets per Month
MOQ
negotiable
Price
Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Trailer Mounted Water Well Drilling Rig
Product Name: Water Well Drilling Rig
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Competitive Price
Power Type: Diesel
Engine: Diesel Engine
Power(w): 87KW
Drilling Depth: 260m
Work Pressure: 1.05-3.0Mpa
Air Consumption: 16-30m3/min
Rotary Torque: 3900N.m
Lifting Power: 8T
Pump Speed: 172--450L/min
Flow Rate: 450L/min
Skid Max Angle: 90°
Drill Pipe Length: 1.5m, 2.0m
Drill Pipe Diameter: 76mm
Travelling Speed: 2.5km/h
Drilling Diameter: 115-300mm
Dimension(l*w*h): 5620*2250*2600mm
Weight: 6000kg
Usage: Water Well
Condition: New
Type: Rotary Drilling Rig
After-sales Service Provided: Video Technical Support
Highlight:

Lightweight Trailer Mounted Water Drilling Rig

,

Water Well Hydraulic Rotary Drilling Rig

,

87KW Hydraulic Water Drilling Rig Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRT320
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

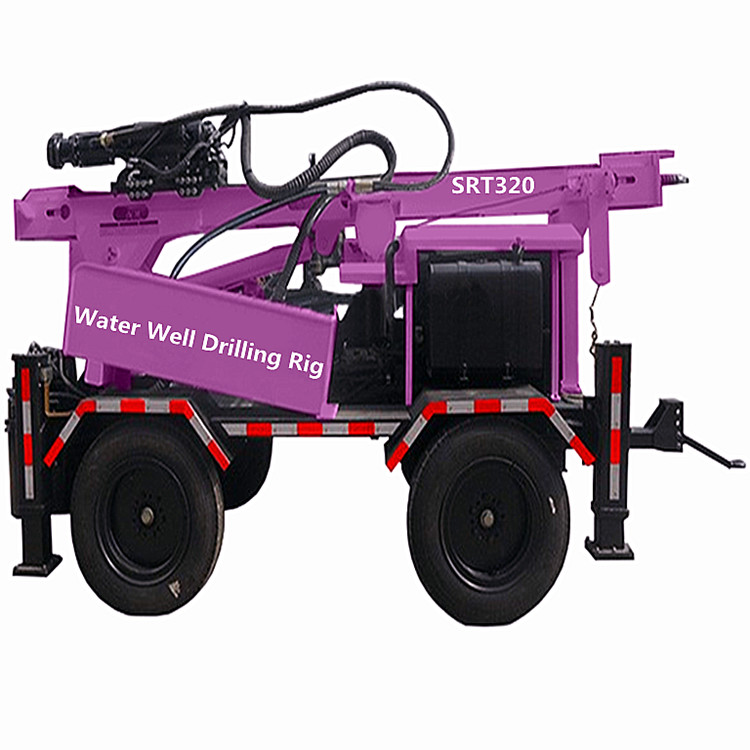

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine Price

SRT320 trailer mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement.

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 0Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 1Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 2

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 3



Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 4

Products Description

Product name:water well drilling rig
Model Number:SRT320
Drilling depth :260m
Host Power :87Kw
Work Pressure(Mpa):1.05-3.0Mpa
Consumption :16-30 m3/min
Bore diameter:115-300mm
Skid max angle:90°
Footage efficiency:5-20m/h
Travelling speed:0-2.5Km/h
Lifting power :8T
Rotary torque:3900N.m
Pump speed:172--450L/min
Flow rate:450L/min
Dimension(L*W*H):5620*2250*2600mm
Weight:6000Kg


Advantage of trailer mounted water well drilling rig:
1. Safe and stable traveling system, two wheels type.
2. Centralized operating system, easy to operate.
3. Powerful feeding and rotating system, two hydraulic rotary and lifting motor to balance the speed and force.
4. As the ball type chuck and driving rod, it can complete no-stopping rotating while the spindle relift.
5. The pressure indicator of bottom hole can observe and control the well conditions easily.
6. Close levers, convenient to operate.
7. Compact size and light in weight are easy to set up and transport o working plains and mountain area.

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 5

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 6Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 7



Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 8

Company Profile

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 9

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 10

Trailer Mounted Water Well Drilling Rig Full Hydraulic Water Drilling Rig Machine 11

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
