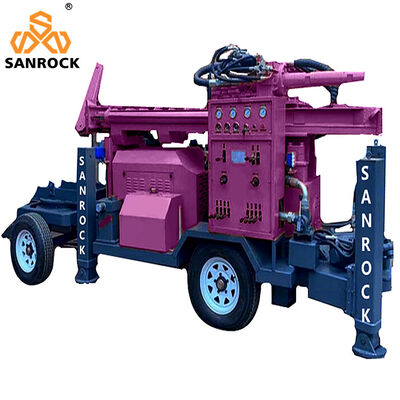

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig

1Set/Sets per Month
MOQ
negotiable
Price
Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Trailer Mounted Water Well Drilling Rig
Product Name: Water Well Drilling Rig
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Engine: Diesel Engine
Power Type: Diesel
Power(w): 55KW
Drilling Depth: 200m
Drilling Diameter: 140-254mm
Working Air Pressure: 1.3-2.7Mpa
Rotation Torque: 4200-5600N.m
Rotation Speed: 45-65rpm
One Push Length: 3300mm
Ground Clearance(Min): 250mm
Type: Rotary Drilling Rig
Usage: Water Well
Drilling Pipe Diameter: 76mm,89mm
Length Of Drill Pipe: 3m
Dimension(l*w*h): 5800X2100X2850 Mm
Weight: 4500 KG
Condition: New
High Light:

Multifunction Water Well Rig

,

Hydraulic Rotary Portable Water Drilling Rig

,

Trailer Mounted Borehole Water Well Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRW200
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Multifunction Water Well Rig Hydraulic Rotary Bore hole Portable Water Drilling Rig

This machine can be applied to various formations, such as water well engineering, geothermal wells, anchor pile holes, etc., and can use heel drills. It has the advantages of hydraulic control of the whole machine,
automatic loading and unloading of drill pipe, crawler type chassis, high horsepower diesel engine, four-corner hydraulic balance and stronger terrain application ability.

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 0Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 1

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 2Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 3Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 4

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 5
Products Description

Type
Rotary Drilling Rig
Power Type
Diesel
Weight
4500KG
Key Selling Points
high performance cost ratio
Drilling Diameter
200mm, 140-254mm
Drilling Depth
Max.200m
Product name
Water Wells Drilling Rigs
Application
Water Wells Rock Drill Rig
Feature
Light Weight High Drilling Efficiency
Name
portable water well drilling rig
Drill rod diameter
76mm,89mm
Rotating torque
4200-5600N.m
Drill rod length
3.0m
Power
55kw
Rotation speed
45-65rpm
Working air pressure
1.3-2.7Mpa


Feature:
1.It has the characteristics of large drilling diameter, deep drilling, quick progress, flexible and efficient.
2.Made from high quality materials, with fashion and compact design, which keeps our drilling rigs more efficiency and with low failure rate, more economic and durable.
3.This series of rigs use excavator crawler chassis for off-road performance. The independent module design allows the rig to be mounted on the truck for increased maneuverability.
4.The two-speed swing and propulsion speed can meet the different piercing needs of the stratum and rock formation.
5.The combined positioner can adjust and replace the positioning plate according to different types of drill pipe and impactor to ensure accurate and reliable positioning and centering.
6.The hoisting mechanism facilitates the lifting of the drill pipe and the impactor to reduce labor intensity.

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 6Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 7Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 8Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 9

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 10

Company Profile



Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 11

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 12

Multifunction Water Well Rig Hydraulic Rotary Bore Hole Portable Water Drilling Rig 13

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
