Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Drilling Rig
Name: Jumbo Drilling Rig
Type: Rotary Drilling Rig
Application: Tunnel,Blasting Hole Drilling,Mining Project,Construction Works
Drilling Depth: 100m
Drilling Diameter: 100-150mm
Feature: High Drilling Efficiency,Hydraulic Controlling
Extension Of Drill Boom: 1800mm
Impact Flow 100-120L/Min: 100-120L/Min
Impact Pressure: 180-200bar
Torque: 764nm
Fuel Tank: 120L
Warranty: 1 Year
Dimension(l*w*h): 13000x2200x2400/3100mm
Weight: 22000KG
After-sales Service Provided: Video Technical Support
Usage: Ore
High Light:

Borehole Jumbo Drilling Rig

,

Rotary Underground Jumbo Drilling Rig

,

Borehole Hydraulic Tunneling Drilling Rig Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRJ42
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine

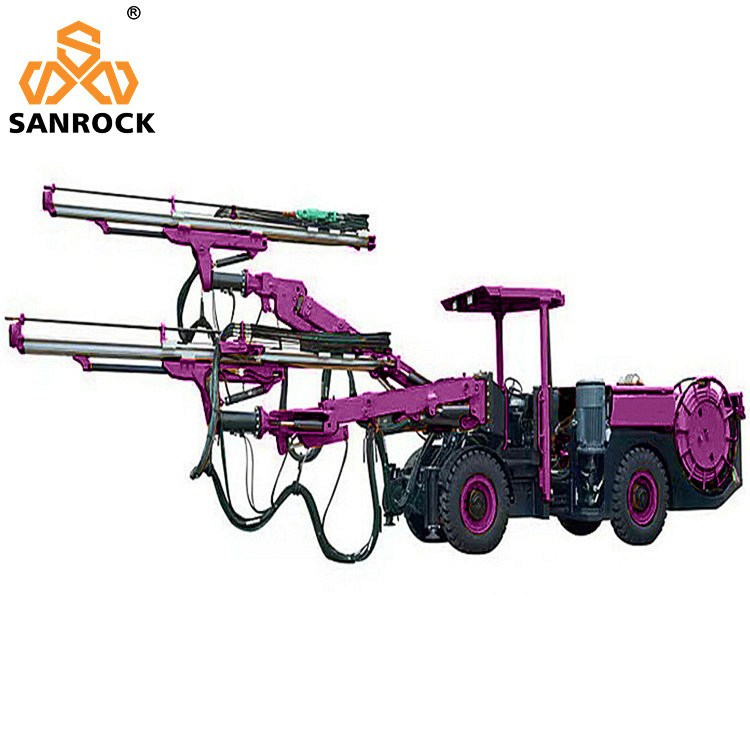

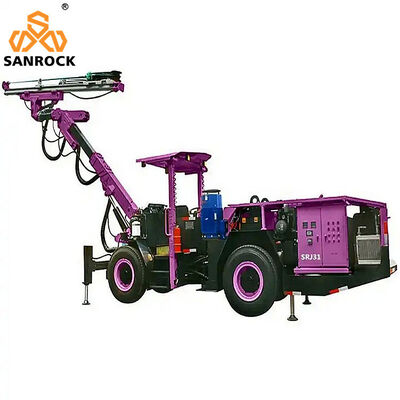

The drilling rig is fitted with the flexible boom in two symmetric rectangular coordinates, without any operation blind spot. 360°rotation and self-leveling beam make drill positioning easy, it can also be used for the drilling of lateral cross-cut and rock bolting. The drilling rig provides a good view for the operator, balanced layout and the articulated chassis of four-wheel drive ensure the flexible, fast and safe driving in the narrow tunnel. The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition. Consideration space and automatic functions enable the driver to concentrate on drilling in a safe, fast and accurate manner. All the relevant parts are kept in good protection, meanwhile maintenance easily.

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 0

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 1

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 2

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 3

Feature:

Hydraulic tunneling drilling rig is specially designed for the extremely inclined tunnel, with the maximum slope standing at 25. It is suitably qualified for the drilling of hard rock mine whose section falls in the range of 16-68 square meters. Widely used to drill deep holes in many areas, such as quarry, railway, construction, road construction, small-medium mine and so on.

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 4

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 5

Products Description

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 6

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 7

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 8

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 9



Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 10

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 11

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 12

Company Profile

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 13

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 14

Underground Jumbo Drilling Rig Rotary Borehole Hydraulic Tunneling Drilling Rig Machine 15

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
