Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Name: Bucket Drilling Rig
Feature: Hydraulic Controlling,Light Weight High Drilling Efficiency
Application: Mining Project,Coal,Ore,Water Well
Power Type: Electric
Motor Power: 4kw
Drilling Diameter: 80-100mm
Drilling Depth: 20m
Lift Power:: 9600N
Air Consumption: 7 M3/min
Rotate Speed:: 0-65 Rpm
Working Pressure: 0.5-1.0Mpa
After-sales Service Provided: Online Support,Video Technical Support
Dimension(L*W*H): 2300*600*750mm
Weight:: 550 KG
High Light:

Mining Bucket Drilling Rig Machine

,

Rotary Borehole Bucket Drilling Rig

,

Rotary Borehole Portable Hydraulic Drilling Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRQD100
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Small Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine

It is widely used in small and medium-sized mines, defense engineering, water conservancy, irrigation projects, road constrtction, blast hole drilling operations in Rock engineering, which is ideal machine to acheve hirarchial extraction and medium deep-hole blasting.

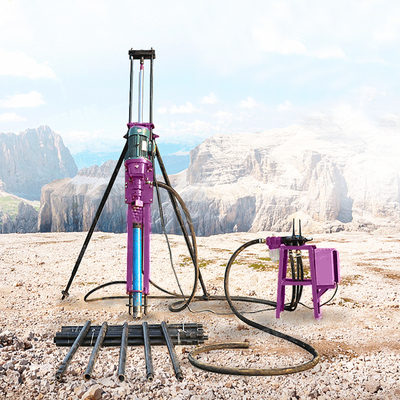

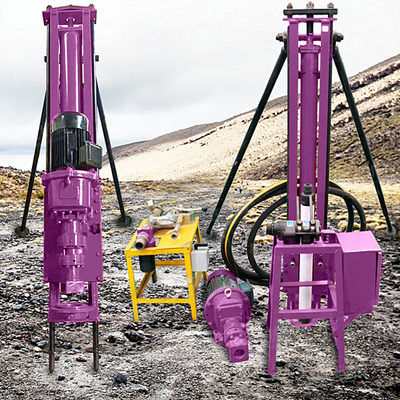

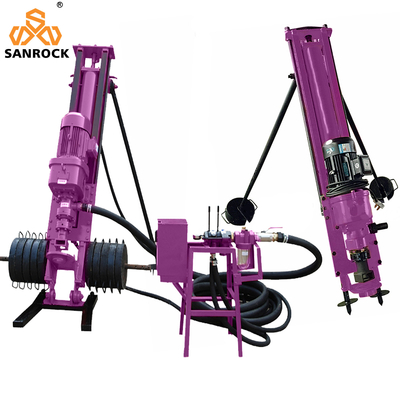

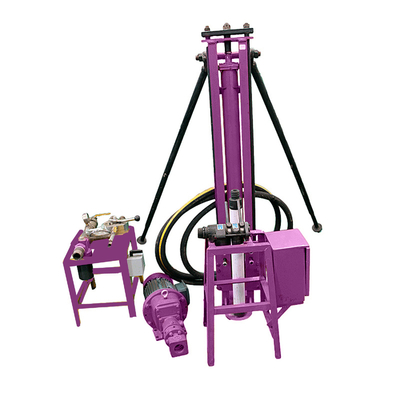

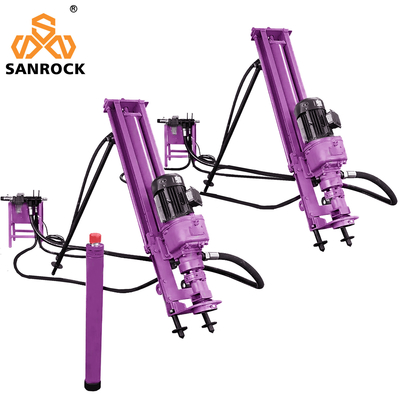

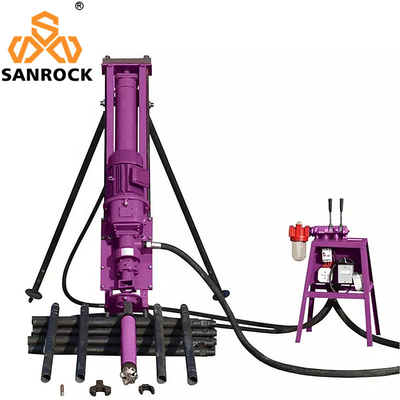

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 0

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 1

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 2Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 3



Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 4

Products Description

Product name:DTH Drilling Rig
Name:Small Borehole Drilling Rig
Model:SRQD100
Dia.hole:80-100mm
Drilling depth:≥20m
Working pressure:0.5-1.0Mpa
Rotate speed:0-65 rpm
Lift power:9600N
Motor Power:4kw
Air consumption:≥7 m3/min
Dimension(L*W*H):2300*600*750mm
Weight:550 KG


Feature:
1. Compact structure, easy operation, quick cutting speed, high efficiency, good demolition, convenient transport.
2. The energy loss does not increase with the drill rod increasing.
3. Working noise is greatly reduced.
4. Higher degree of mechanization, less auxiliary operation time, improving the drilling rig operating rate.

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 5

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 6

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 7Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 8

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 9

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 10

Company Profile

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 11

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 12

Small Bucket Drilling Rig Mining Machinery Rotary Borehole Portable Hydraulic Drilling Machine 13

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
