Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment

1Set/Sets per Month
MOQ
negotiable
Price
Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Name: Bucket Drilling Rig
Application: Mining Project,Coal,Ore,Water Well
Feature: Hydraulic Controlling,Light Weight High Drilling Efficiency
Motor Power:: 5.5 Kw
Drilling Diameter: 80-100mm
Drilling Depth: ≥25m
Lift Power: 9600N
Air Consumption: ≥9 M3/min
Working Pressure:: 0.5-0.7mpa
Speed Of Rotator: 0-65rpm
Drill Rod Diameter: 60mm
Drill Rod Length: 1m/1.5m
After-sales Service Provided: Online Support,Video Technical Support
Dimension(L*W*H): 2300*600*750mm
Weight:: 580 KG
High Light:

80mm Drilling Rig Machine

,

Hydraulic Rotary Borehole DTH Drilling Rig

,

Portable DTH Bucket Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRQD120
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Portable Bucket DTH Drilling Rig Machinery Hydraulic Rotary Borehole Drilling Equipment

SRQD120 DTH rock drill is a new type of energy-saving and high efficiency drilling equipment.It is widely used in medium and small mines and road construction,national defense,water conservancy and the stone in the engineering of deep hole drilling operation,also is the indispensable drilling open-pit mining equipment ,especially is suitable for rugged terrain;The machine is with compact structure,convenient operation,high speed,high efficiency,good machine detachable,and transportation is extremely convenient.

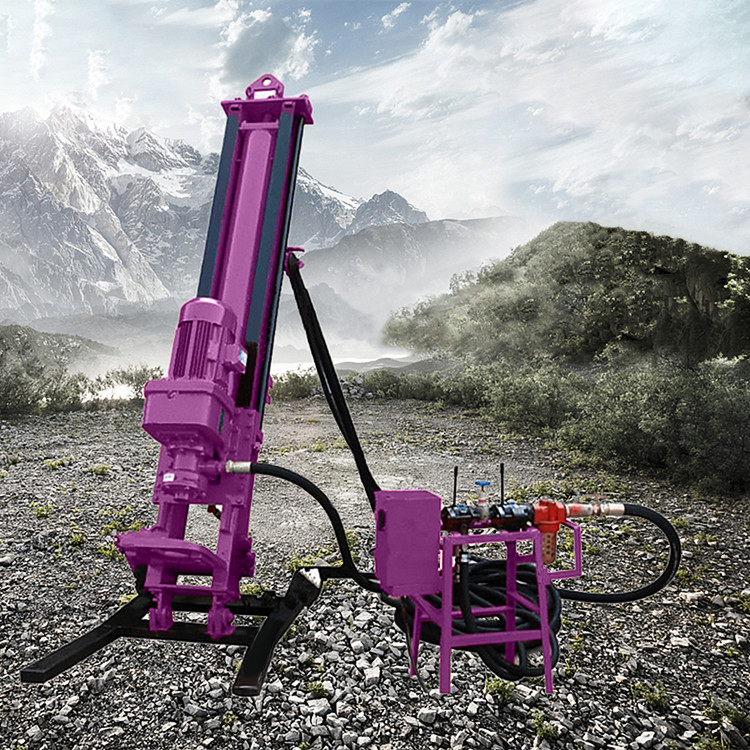

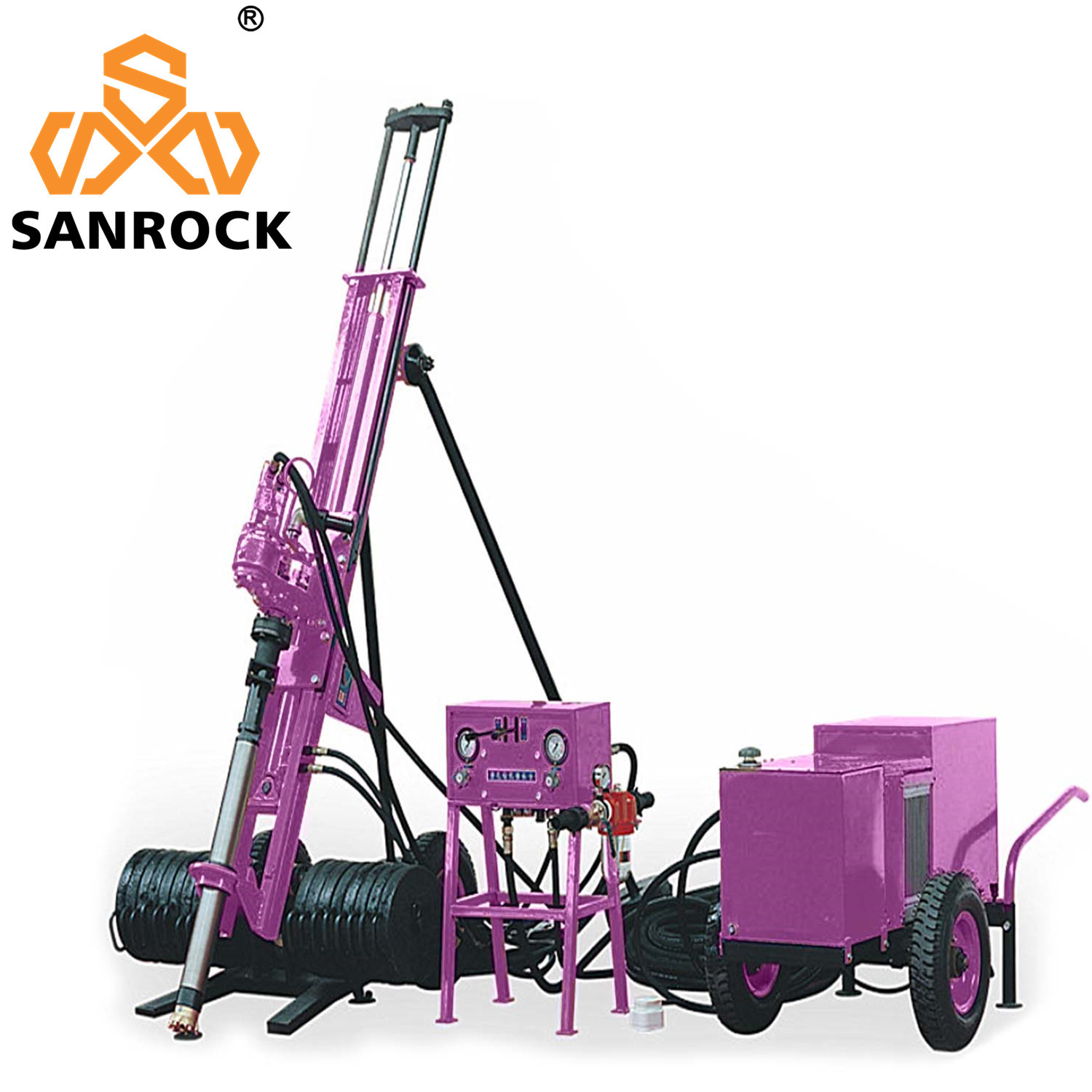

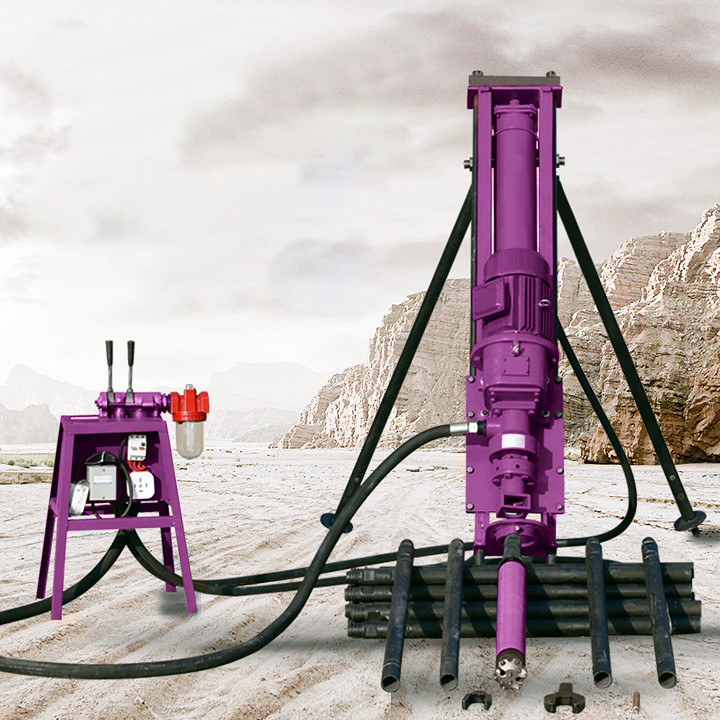

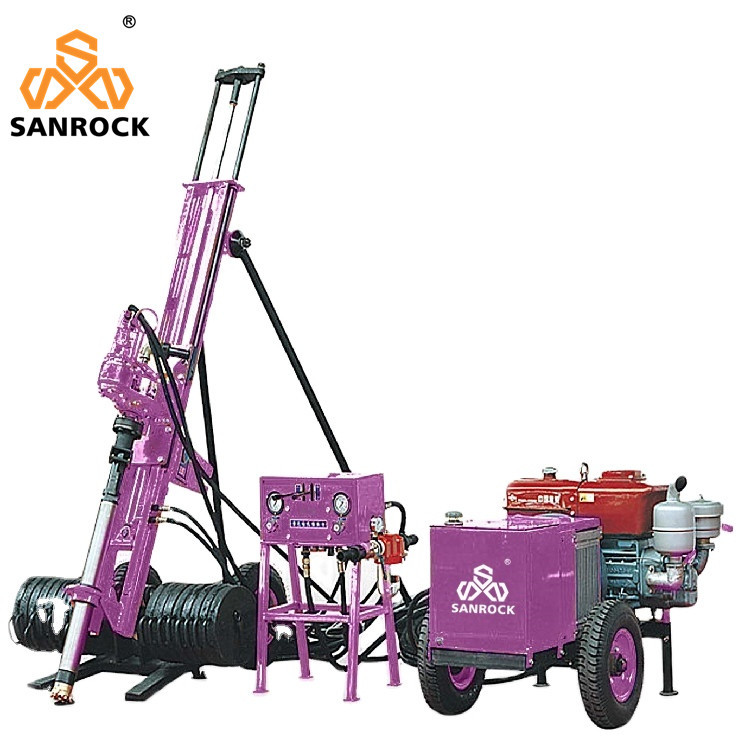

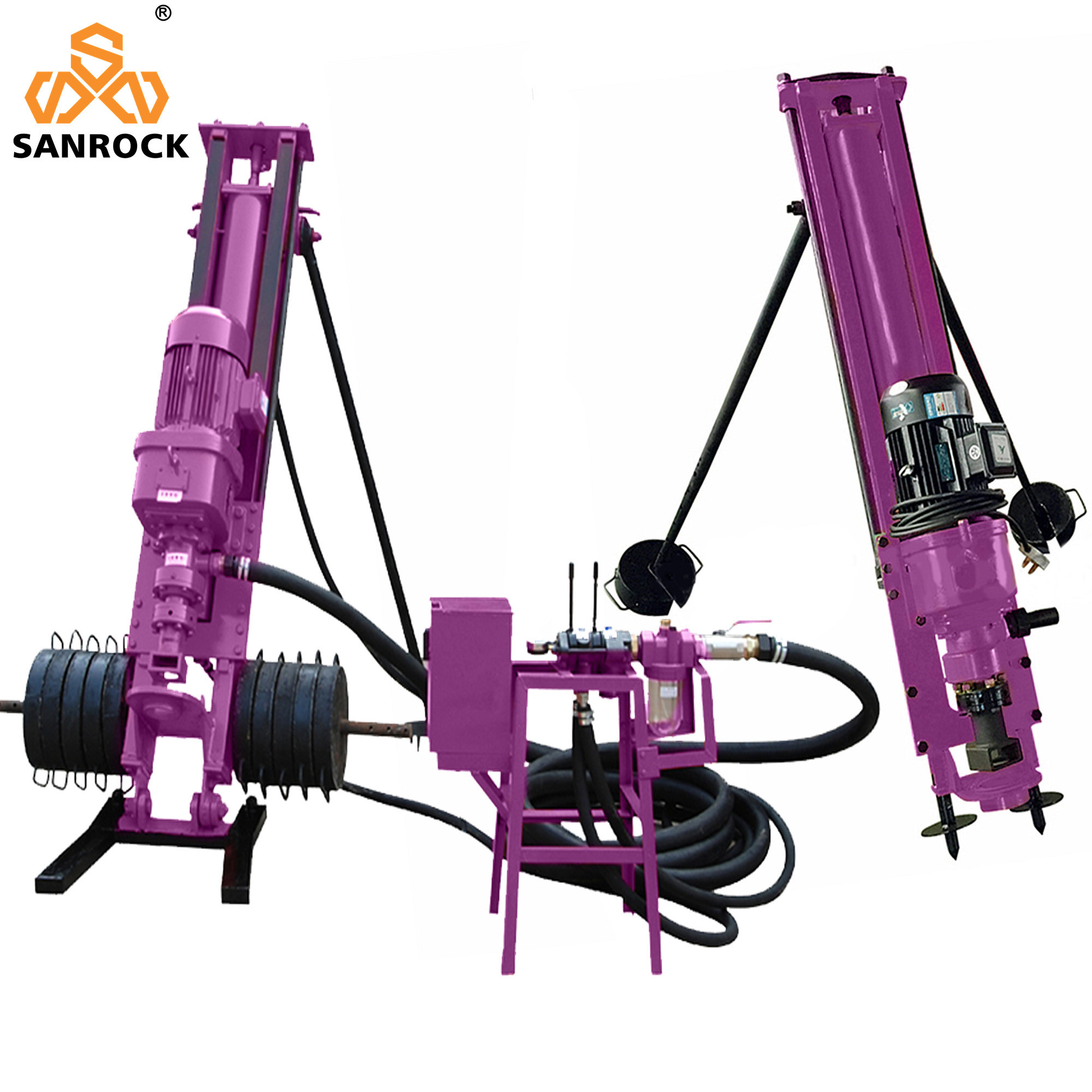

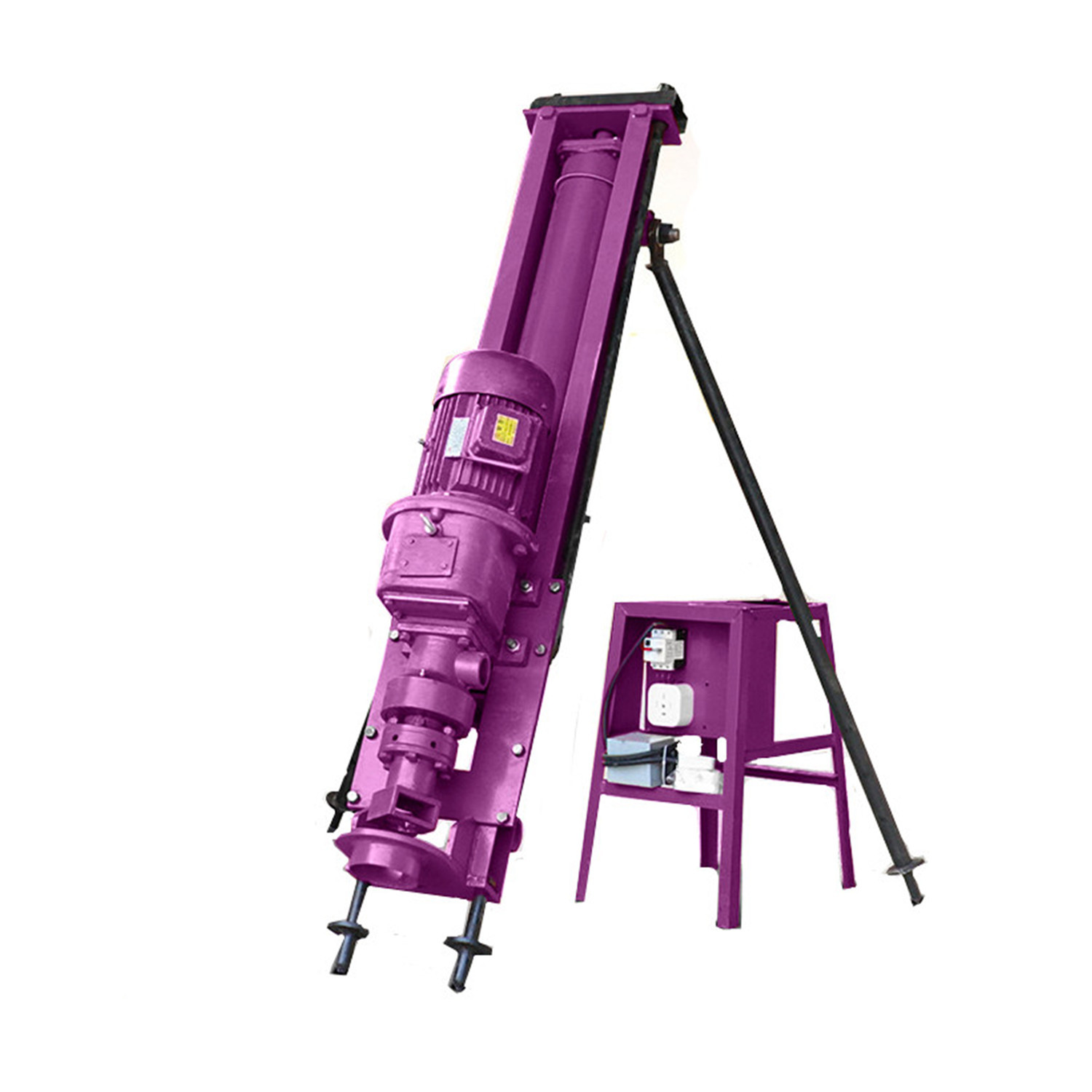

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 0

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 1

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 2

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 3



Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 4

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 5

Products Description

Product name:Drilling Rig Machine
Name:Portable Pneumatic Drilling Rig
Model:SRQD120
Dia.hole:80-100mm
Drilling depth:≥25m
Speed of rotator:0-65rpm
Working pressure:0.5-0.7mpa
Drill specification:60*1000mm/0.7-1.0mpa
Motor Power:5.5 kw
Lift power:9600N
Air consumption:≥9 m3/min
Dimension(L*W*H):2300*600*750mm
Weight:580 KG


Feature:
1.high efficiency ,good performance, motor driven down the hole drill.
2.simple structure and single dynamic.
3.adapt to any geological feature.
4.stable and reliable operation.
5. big swing torque, high efficiency.
6.Unique dual muffler,muffler effect, reducing environmental pollution.
7.Centralized control mechanism,easy to operate.

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 6

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 7Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 8Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 9Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 10

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 11

Company Profile

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 12

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 13

Portable Bucket DTH Drilling Rig Machine Hydraulic Rotary Borehole Drilling Equipment 14

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
