Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Application: Mining Project,Coal,Ore,Water Well
Name: Rock Drilling Rig
Power Type: Electric
Motor Power: 11kw
Drilling Diameter: 90-150mm
Drilling Depth: 50m
Lift Power: 12000N
Working Pressure: 0.7-1.4Mpa
Rotating Speed: 0-60rpm
Air Consumption: 15 M3/min
Drill Rod Length: 1m/1.5m
Drill Rod Diameter: 60/76mm
After-sales Service Provided: Online Support,Video Technical Support
Weight: 910 KG
High Light:

50m Depth Bucket Drilling Rig

,

Hydraulic Bore Hole Rock Drilling Rig

,

Pneumatic Portable Mining Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRQD165B
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

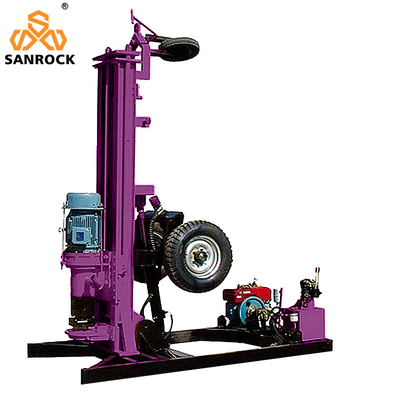

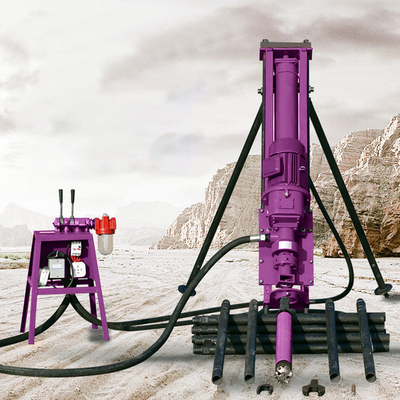

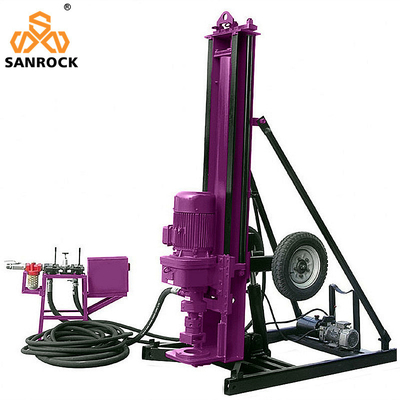

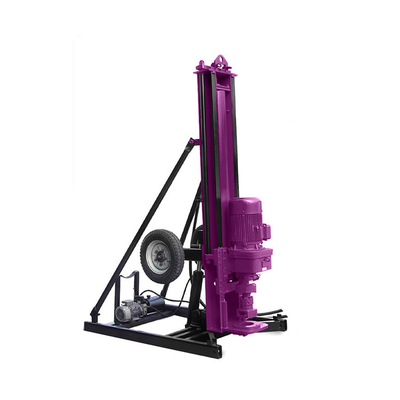

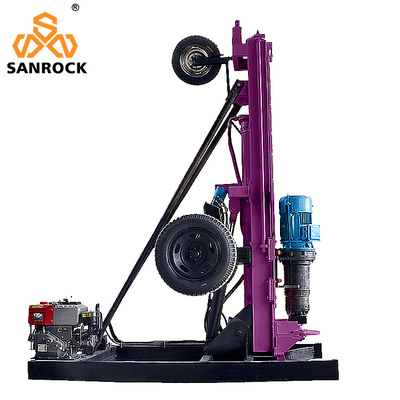

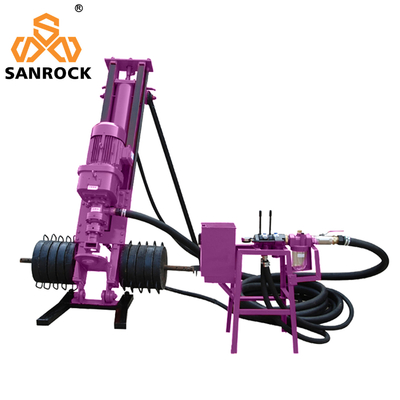

Rock Drilling Rig Hydraulic Bore hole 50m Depth Mining Pneumatic Portable Drilling Rig

SRQD165B DTH drilling rig It is widely used in medium and small mines and road construction,national defense,water conservancy and the stone in the engineering of deep hole drilling operation,also is the indispensable drilling open-pit mining equipment ,especially is suitable for rugged terrain;The machine is with compact structure,convenient operation,high speed,high efficiency,good machine detachable,and transportation is extremely convenient.

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 0Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 1Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 2

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 3

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 4

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 5

Products Description

Product name:DTH Drilling Rig
Name:Small Borehole Drilling Rig
Model:SRQD165B
Hole diameter 90-150mm
Drilling depth:≥50m
Working pressure:0.7-1.4Mpa
Rotating speed :0-60rpm
Lift power:12000N
Motor Power:11kw
Air consumption:15 m3/min
Weight:910 KG


Feature:
1. Has free relaxed fluctuation system, hydraulic lifting device casing.
2. Large working range, strong terrain adaptability, and high efficiency.
3. The side swing mechanism is adopted to realize all-round drilling.
4. The frame part is made of high-strength steel, the overall structure is strong and durable.
5. The tubing drag chain can avoid the friction between the tubing and the guide rail, protect the tubing and increase the service life.
6. The power head part can adjust the rotation speed according to the softness of the rock layer, achieve a smooth high torque output.

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 6

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 7Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 8Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 9Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 10

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 11

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 12

Company Profile

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 13

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 14

Hydraulic Bore Hole Rock Drilling Rig 50m Depth Mining Pneumatic Portable Drilling Rig 15

1.What can you buy from us?

DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
